Surgident GBR Bone Tacs (Pack of 5)

Description

Surgident GBR Bone Tacs are precision-engineered titanium fixation pins designed to stabilize barrier membranes and bone grafts during Guided Bone Regeneration (GBR) procedures. Reliable membrane fixation is critical to GBR success — any micromovement of the barrier compromises bone formation and exposes the graft to soft tissue invasion. These bone tacks deliver firm, immediate fixation of resorbable and non-resorbable membranes to the underlying bone, holding the graft material in place undisturbed during the healing period. The sharp self-tapping tip allows easy insertion without pre-drilling in most native bone, while the broad anodized head distributes pressure evenly across the membrane without tearing. Available in two lengths — 3.5 mm for thin cortical plates and limited bone height, and 5 mm for thicker cortical anchorage — the range covers maxillary, mandibular, and ridge augmentation scenarios. Supplied in a pack of 5.
Advantages:

• Effectively secure membranes
• Precise and predictable results
• Simplifies the membrane fixation process
• Special thread for more stability
• Easy to used single-handed

Key Features

• Titanium bone fixation tack for stabilizing barrier membranes during GBR procedures
• Delivers firm immediate fixation of resorbable and non-resorbable membranes to bone
• Sharp self-tapping tip enables easy insertion without pre-drilling in most native bone
• Broad anodized head distributes pressure evenly across the membrane without tearing

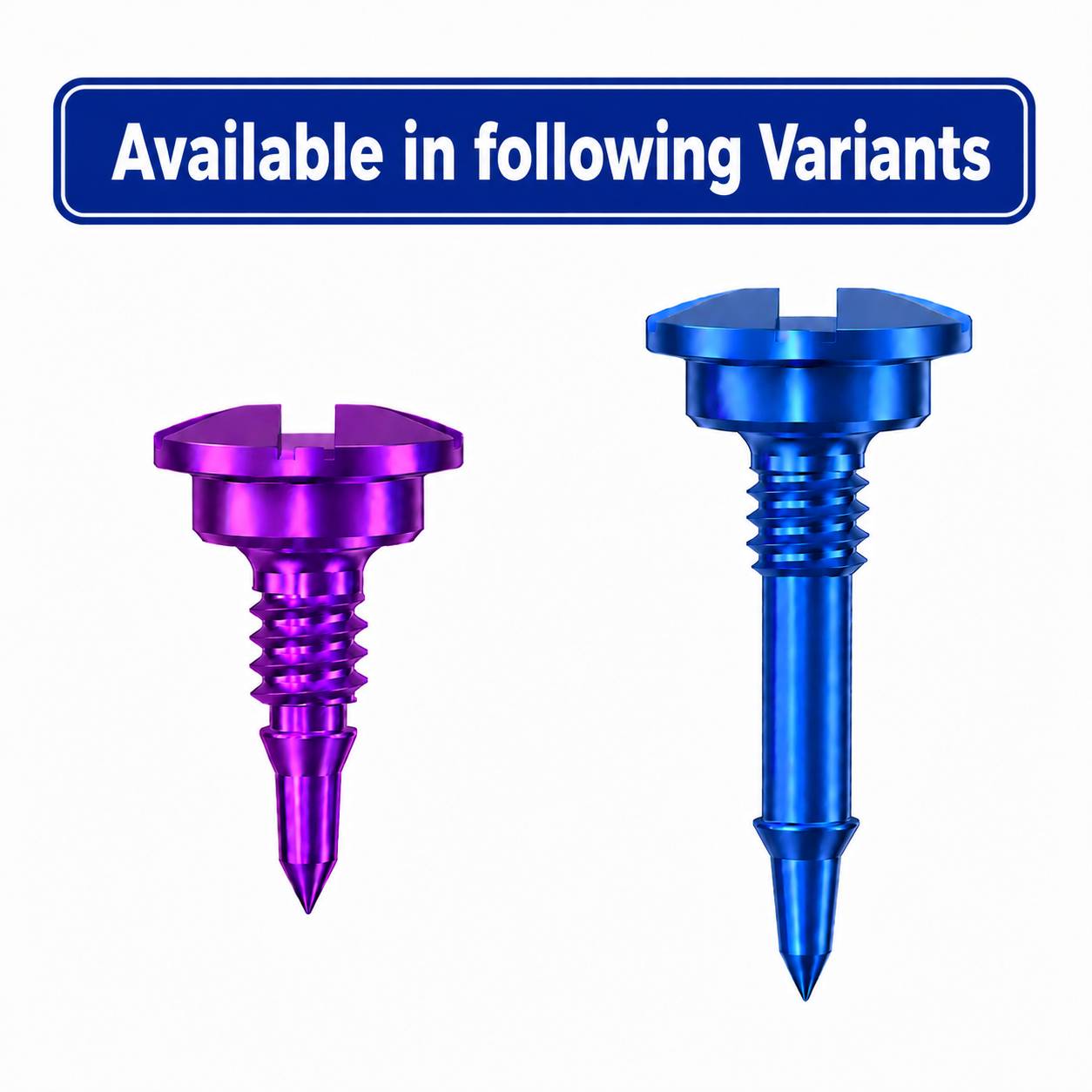

• Available in 3.5 mm and 5 mm length variants for varying cortical bone scenarios
• Color-coded anodized finish (purple and blue) for quick chairside length identification
• Manufactured from grade 5 titanium alloy for strength and biocompatibility
• Supplied as a pack of 5 to suit typical GBR membrane fixation requirements per case

Specifications

• Product Type: GBR Bone Fixation Tack
• Brand: Surgident
• Application: Membrane and bone graft fixation during Guided Bone Regeneration
• Available Lengths: 3.5 mm, 5 mm
• Head Diameter: 2mm
• Tip Design: Self-tapping sharp tip
• Head Design: Broad flat head for even pressure distribution
• Material: Grade 5 titanium alloy
• Surface: Anodized titanium (color-coded by length)
• Compatibility: Resorbable and non-resorbable GBR membranes
• Pack Size: 5 tacks per pack
• Sterilization: Supplied sterile or autoclavable per packaging

Packaging

• Pack of 5

Directions for Use

Surgical Preparation

• Complete flap elevation and expose the bone defect requiring augmentation
• Place the bone graft material into the defect following the planned GBR protocol
• Trim and adapt the chosen barrier membrane to cover the graft with appropriate extension beyond the defect margins

Bone Tack Selection

• Assess the cortical bone thickness at the planned fixation sites
• Select 3.5 mm tacks for thin cortical plates and 5 mm tacks for thicker cortical anchorage
• Plan 2 to 4 tack positions distributed around the membrane periphery for stable fixation

Tack Insertion

• Position the membrane over the graft and stabilize it at the first fixation point
• Load the bone tack into the compatible applicator or driver
• Place the tack perpendicular to the bone surface at the planned fixation point
• Apply firm, controlled axial pressure to drive the self-tapping tip into the cortex
• Insert until the tack head sits flush against the membrane with even pressure
• Repeat at each planned fixation point around the membrane periphery

Verification

• Confirm the membrane is fully stabilized with no movement at the fixation points
• Verify the bone graft remains contained beneath the membrane without exposure
• Inspect for any membrane tearing or loose tack engagement before flap closure

Flap Closure and Healing

• Close the soft tissue flap with tension-free primary closure over the membrane
• Suture per the planned protocol and provide post-operative instructions
• Allow the recommended GBR healing period before the next surgical phase

Tack Removal at Re-Entry

• At the re-entry appointment, expose the augmented site with a flap reflection
• Locate the bone tacks and remove them using the appropriate removal driver
• Proceed with implant placement or further prosthetic planning as per the case

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
