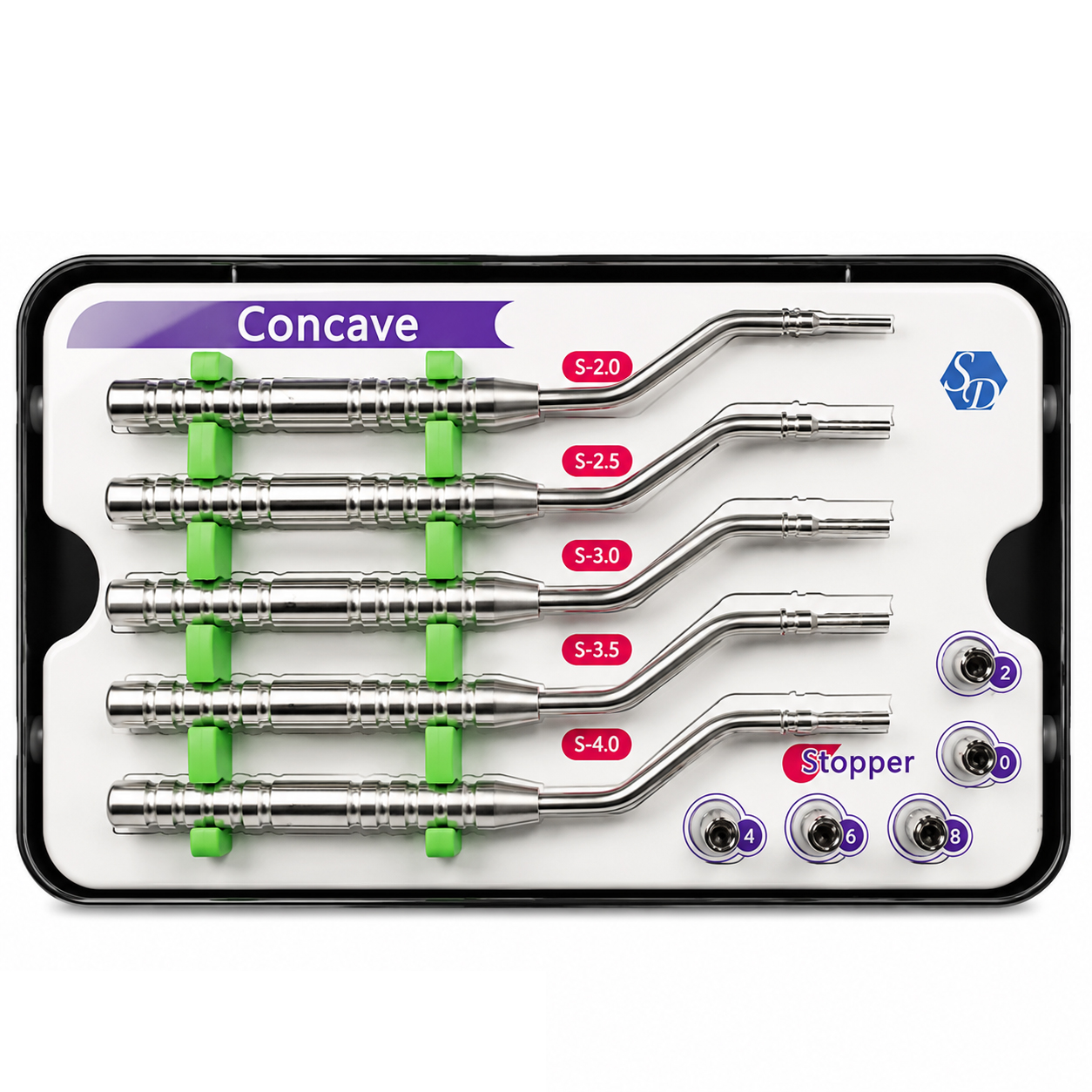

Surgident Concave Osteotome Set – S Set for Sinus Lift (SD-CONCAVE)

Description

Surgident Concave Osteotome Set – S Set (SD-CONCAVE) is a specialized surgical instrument kit designed for sinus lift procedures, ridge expansion, bone condensation, and implant site preparation. The set includes five concave osteotomes in progressively increasing diameters, allowing clinicians to perform controlled bone expansion while preserving surrounding anatomical structures. The concave tip design helps stabilize graft materials and supports predictable osteotome-mediated sinus elevation techniques. Manufactured from surgical-grade stainless steel, the instruments provide excellent durability, corrosion resistance, and long-term clinical performance. The included depth stoppers offer enhanced control during surgical procedures by limiting insertion depth and improving procedural safety. Suitable for implantologists and oral surgeons, the SD-Concave S-Set facilitates atraumatic bone manipulation and controlled osteotomy expansion. The complete kit is supplied in an organized sterilization tray for convenient storage, sterilization, and instrument management.

Key Features

• Designed for sinus lift and implant site expansion procedures
• Concave tip design supports controlled bone manipulation
• Includes five osteotomes with progressive diameter sizes
• Depth stoppers enhance drilling depth control and safety
• Suitable for ridge expansion and bone condensation techniques
• Manufactured from surgical grade stainless steel
• Supplied in a dedicated sterilization tray and storage case
• Supports predictable osteotome mediated sinus elevation procedures

Specifications

• Product Type: Osteotome Set
• Model: SD-CONCAVE
• Set Variant: S-Set
• Osteotome Sizes: 2.0 / 2.5 / 3.0 / 3.5 / 4.0 mm
• Tip Design: Concave
• Stopper Sizes: 4 / 6 / 8 / 10 / 12 mm
• Material: Surgical Grade Stainless Steel
• Application: Sinus Lift Procedures
• Function: Bone Condensation
• Packaging: Sterilization Tray

Packaging

• 1 x SD-Concave Osteotome Instrument Set Case
• 5 x Concave Osteotomes (S-2.0, S-2.5, S-3.0, S-3.5, S-4.0)
• 5 x Depth Stoppers (4 mm, 6 mm, 8 mm, 10 mm, 12 mm)
• 1 x Instrument Tray / Storage Box

Directions for Use

Preparation

• Evaluate the surgical site clinically and radiographically
• Select the appropriate osteotome size according to the treatment plan
• Attach the desired depth stopper before use

Osteotomy Expansion

• Begin with the smallest osteotome diameter
• Advance gradually using controlled surgical force
• Expand the osteotomy progressively with larger osteotomes

Sinus Lift Procedure

• Use the concave tip to facilitate controlled sinus floor elevation
• Maintain the selected depth using the stopper system
• Place graft material according to the surgical protocol when required

Post Use Care

• Clean all instruments immediately after surgery
• Sterilize according to standard clinical protocols
• Store instruments in the provided tray after sterilization

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product
