Surgident Aqua TOCA Kit for Crestal Sinus Lift with Hydraulic System (SD-AQUA)

Description

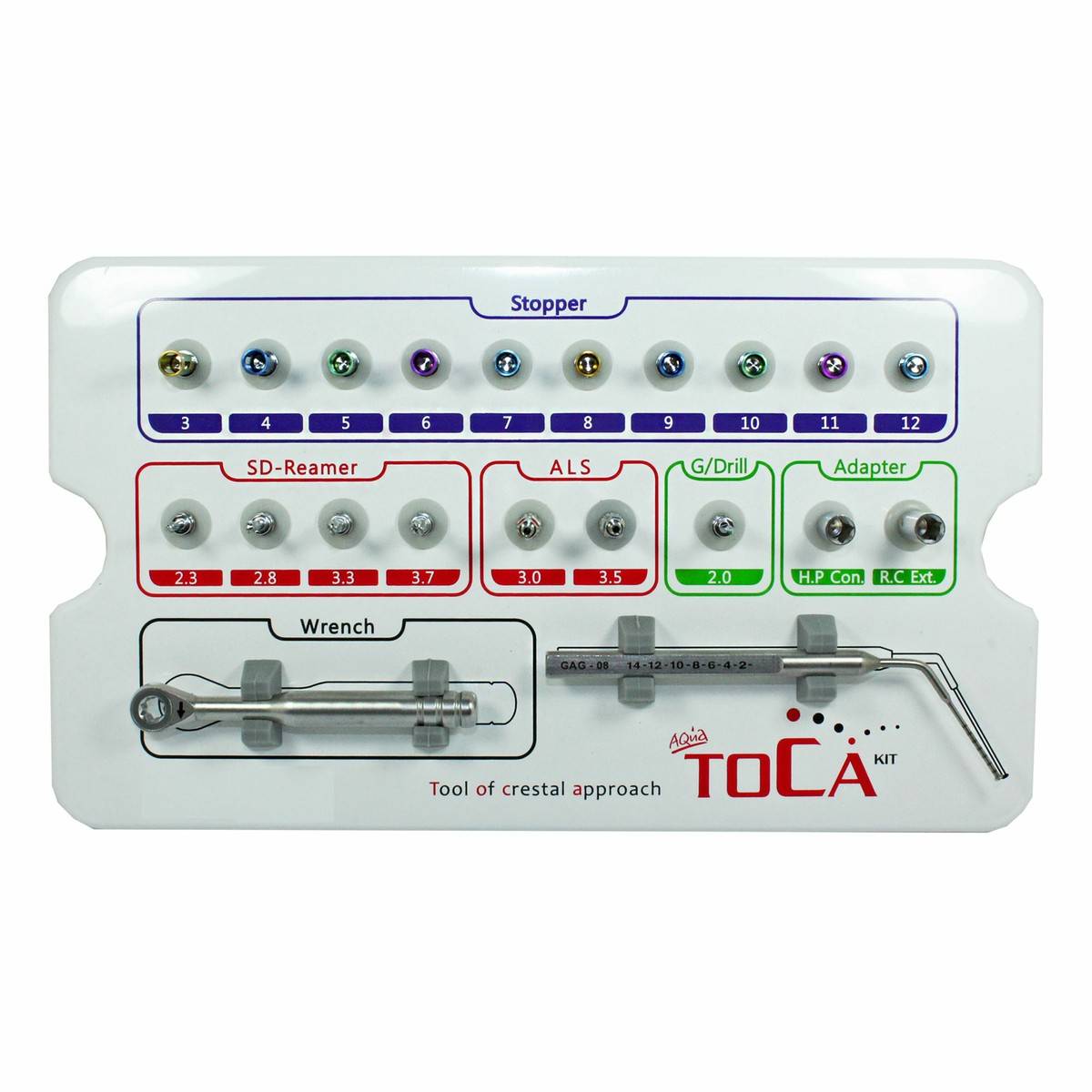

The Surgident Aqua TOCA Kit (SD-AQUA) is a comprehensive crestal sinus lift system that uses hydraulic saline pressure to safely elevate the Schneiderian membrane with significantly reduced risk of perforation compared to traditional osteotome techniques. The Aqua Lift System (ALS) delivers controlled saline pressure through five strategically placed apertures — four on the sides and one at the top — that gently lift the membrane into a uniform dome shape. The complete kit includes SD-Reamers in 2.3, 2.8, 3.3, and 3.7 mm diameters, ALS in 3.0 and 3.5 mm diameters with depth markings, a guide drill, a color-coded stopper set from 3 mm to 12 mm, depth gauge, bone packer, bone syringe, handpiece condenser, ratchet extension, wrench, and a 50 cm silicone tube. Ideal for transcrestal sinus elevation in atrophic maxillary posterior regions with predictable graft delivery.

Key Features

• Complete hydraulic crestal sinus lift system that minimizes the risk of Schneiderian membrane perforation
• Aqua Lift System (ALS) with five aqua holes delivers uniform saline pressure for dome-shaped membrane elevation
• Includes graduated SD-Reamers in 2.3, 2.8, 3.3, and 3.7 mm diameters for safe sinus floor perforation
• Color-coded stopper set from 3 mm to 12 mm enables precise drilling depth control and prevents over-perforation
• Bone syringe and bone packer allow controlled delivery and condensation of graft material into the elevated space
• Guide drill, depth gauge, and ratchet extension support accurate site preparation and instrument reach
• Compatible with implant motor at recommended speeds and torque for controlled handpiece operation
• Complete kit delivered in a compact organized tray for systematic chairside accessibility

Specifications

• Product Type: Crestal Sinus Lift Kit
• Model Number: SD-AQUA
• Technique: Hydraulic membrane elevation
• SD-Reamer Diameters: 2.3, 2.8, 3.3, 3.7 mm
• ALS Diameters: 3.0 mm and 3.5 mm
• ALS Depth Markings: 4, 6, 8, 10 mm
• Stopper Range: 3 mm to 12 mm (color-coded)
• Reamer RPM: 800 to 1200
• Condenser RPM: 30 to 40
• Recommended Torque: 20 Ncm
• Silicone Tube Length: 50 cm
• Material: Surgical-grade stainless steel
• Sterilization: Autoclavable

Packaging

• 1 x SD-RM23 — SD-Reamer Ø2.3 mm
• 1 x SD-RM28 — SD-Reamer Ø2.8 mm
• 1 x SD-RM33 — SD-Reamer Ø3.3 mm
• 1 x SD-RM37 — SD-Reamer Ø3.7 mm
• 1 x ALS30 — Aqua Lift System Ø3.0 mm (depth markings 4, 6, 8, 10 mm)
• 1 x ALS35 — Aqua Lift System Ø3.5 mm (depth markings 4, 6, 8, 10 mm)
• 1 x SDADP-02 — Handpiece condenser
• 1 x R.C EXT — Ratchet extension
• 1 x SDWRH-00 — Wrench for manual ALS fixation
• 1 x SD-ST — Silicone tube (50 cm)
• 1 x GD-20 — Guide drill
• 1 x GAG-08 — Depth gauge (Ø2.0 mm)
• 1 x TOCA-BP — Bone packer (Ø1.0 / Ø2.2 mm)
• 1 x TOCA-SG — Bone syringe (Ø2.0 mm)
• 1 x BS-01 — Bone scoop / carrier (Ø2.5 mm)
• 1 x ST-03 to ST-12 — Color-coded stopper set (3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm)

Directions for Use

Preparation

• Evaluate the residual bone height below the sinus floor using CBCT before planning the procedure
• Confirm the Aqua TOCA technique is suitable based on bone height and membrane condition
• Inspect all kit components for integrity and autoclave the complete kit before surgical use
• Prepare sterile saline in a syringe connected to the silicone tube for hydraulic delivery
• Reflect a full-thickness mucoperiosteal flap to expose the implant site in the posterior maxilla

Site Marking and Drilling

• Mark the surgical site at the planned implant position using the guide drill
• Select the appropriate stopper based on the planned drilling depth and engage it onto the SD-Reamer
• Drill with the stopper engaged all the way until the reamer reaches more than 1 mm beyond the membrane
• Operate the SD-Reamer at 800 to 1200 RPM with copious saline irrigation throughout drilling

ALS Fixation and Hydraulic Lift

• Select the appropriate ALS diameter (3.0 or 3.5 mm) matching the prepared osteotomy
• Fix the ALS into the perforated hole manually using the wrench or with the handpiece condenser
• Operate the handpiece at 30 to 40 RPM with maximum 20 Ncm torque if using engine-driven insertion
• Connect the silicone tube and saline syringe to the ALS and inject saline slowly
• Allow hydraulic pressure through the five aqua holes to gently lift the membrane into a dome shape

Graft Placement and Implant Insertion

• Remove the ALS once adequate membrane elevation is confirmed clinically and radiographically
• Fill the elevated sinus space with bone graft material using the bone syringe
• Condense the graft material gently using the bone packer for uniform distribution
• Insert the dental implant fixture of planned diameter and length following standard placement protocol
• Verify primary stability and seat the cover screw or healing abutment as per the case plan

Post Use Care

• Suture the flap for tension-free primary closure and verify hemostasis
• Prescribe antibiotics, decongestants, analgesics, and sinus precautions for the patient
• Clean all kit instruments thoroughly in an ultrasonic cleaner with enzymatic solution
• Inspect cutting edges of the reamers and replace worn components as needed
• Autoclave and store the complete kit in the supplied tray for the next surgical use

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

•  Warranty is not applicable for this product.
