Surgident Torque Driver with 8 Drivers for Implant Surgery (SD-STOQ)

Description

Dentaltech Torque Driver with 8 Drivers for Implant Surgery (SD-STOQ) is a compact contra angle torque control system designed to safely fix or separate upper prosthetic structures during implant surgery. Its slim contra angle head and dial controlled torque mechanism allow easy access to deep molar regions where traditional torque wrenches struggle to reach due to limited mouth opening. The system delivers precise torque application from 5 to 35 N-cm through a smooth ratchet free rotation, making it a smart solution for safe finishing of implant prosthetics. The kit includes a complete set of eight drivers in short and long lengths covering 1.2 hex, 1.25 hex, big multi unit, small multi unit and a spare driver to support a wide range of implant systems.

Key Features

• Compact contra angle design provides easy access to deep molar regions during surgery
• Precise dial controlled torque setting from 5 to 35 N-cm for safe prosthetic fixation
• Smooth rotation mechanism eliminates the difficulty of using a traditional ratchet wrench
• Includes 8 drivers covering hex 1.2 hex 1.25 big multi unit small multi unit and spare
• Driver tips available in short 23.5 mm and long 30.0 mm lengths for clinical flexibility
• Compatible with major implant systems for screw tightening and removal procedures
• Manufactured from high grade stainless steel for durability and corrosion resistance

Specifications

• Product Code: SD-STOQ
• Brand: Dentaltech
• Instrument Type: Contra angle torque driver
• Torque Range: 5 to 35 N-cm
• Drivers Included: Eight driver tips
• Driver Sizes: 1.2 hex 1.25 hex B/M S/M
• Driver Lengths: Short 23.5 and long 30 mm
• Material: Stainless steel
• Application: Implant prosthetic fixation
• Sterilization: Autoclavable fully

Packaging

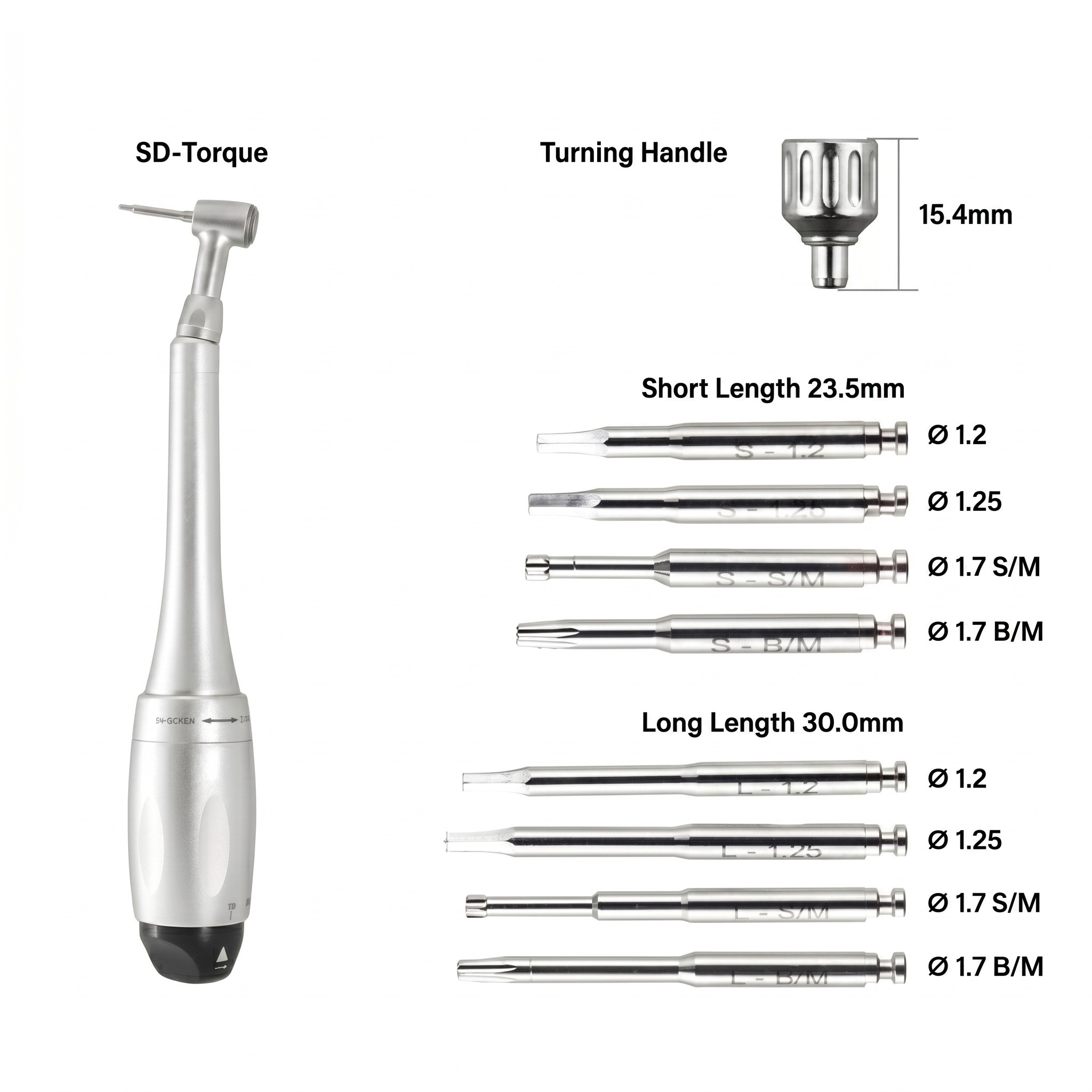

• 1 x SD Torque Wrench (contra angle handpiece style)
• 1 x Turning Handle (15.4 mm)
• 4 x Short Length Drivers 23.5 mm in tip sizes 1.2, 1.25, 1.7 S/M, and 1.7 B/M
• 4 x Long Length Drivers 30.0 mm in tip sizes 1.2, 1.25, 1.7 S/M, and 1.7 B/M
• Total 10 components supplied in a protective storage case

Directions for Use

Preparation

• Inspect the torque wrench and drivers for any damage or contamination before use
• Sterilize the complete set through autoclave following standard clinical protocol
• Select the appropriate driver tip size and length based on the implant system being used

Driver Selection

• Choose the short 23.5 mm driver for anterior cases with limited interocclusal space
• Choose the long 30.0 mm driver for posterior cases requiring deeper access
• Match the driver tip diameter (1.2, 1.25, 1.7 S/M or 1.7 B/M) with the abutment screw type
• Insert the selected driver into the torque wrench head and ensure secure engagement

Operation

• Set the torque value on the SD Torque Wrench as per implant manufacturer guidelines
• Engage the driver tip into the abutment screw head with stable hand support
• Rotate the wrench gently in clockwise direction until the preset torque is achieved
• Use the turning handle for manual finger tightening or initial seating before final torque

Post Use Care

• Disassemble the drivers and turning handle from the torque wrench after use
• Clean each component thoroughly with an enzymatic cleaner to remove biological residue
• Autoclave the complete set before storage to maintain sterility for the next case
• Store all components in the dedicated case to prevent damage and ensure organized access

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
