Surgident Osseodensification Sinus Expansion Drill Kit (SD-SED)

Description

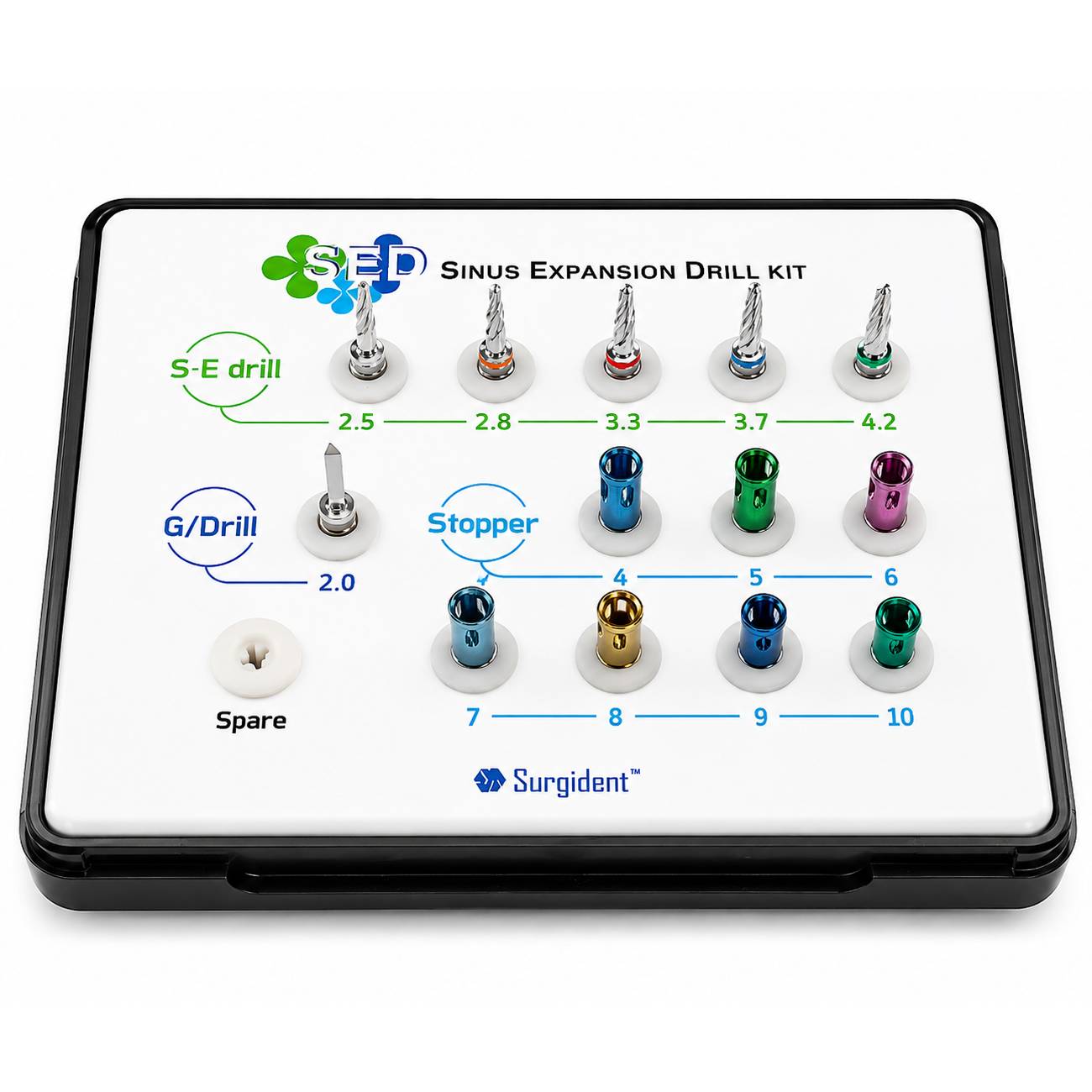

The Surgident Osseodensification Sinus Expansion Drill (SED) Kit is a precision-engineered osseodensification system designed for safe and predictable crestal approach sinus floor elevation in dental implant surgery. The kit combines a sequence of five sinus expansion drills (2.5 to 4.2 mm) with seven depth-control stoppers (4 to 10 mm), allowing the surgeon to incrementally expand the osteotomy while gently lifting the Schneiderian membrane through controlled hydraulic pressure rather than cutting. The bone-preserving design conserves and densifies the residual ridge instead of excavating it, maintaining the critical bone volume needed for implant primary stability. The stopper system locks each drill to a defined depth — a critical safety feature when working millimeters from the maxillary sinus floor. Supplied non-sterile in an organized cassette with positions for the guide drill, expansion drills, and depth stoppers for chairside efficiency.

Key Features

• Osseodensification approach preserves and densifies residual bone rather than excavating it
• Five sinus expansion drills covering Ø2.5, 2.8, 3.3, 3.7, and 4.2 mm diameters
• Seven depth-control stoppers (4 to 10 mm) lock drilling depth for safe sinus floor approach
• Ø2.0 mm guide drill (SD-GD20) for initial pilot osteotomy
• Recommended drilling speed of 800 to 1200 RPM with copious irrigation
• Stainless steel drills with silicone ring and titanium components for surgical-grade durability
• Organized cassette with labeled positions for chairside efficiency and infection control
• Fully autoclavable for sterile repeatable use across implant-with-sinus-elevation cases

Specifications

• Product Type: Sinus Expansion (Osseodensification) Drill Kit
• Brand: Surgident
• Model Code: SD-SED
• Application: Crestal approach sinus floor elevation in dental implant surgery
• Sinus Expansion Drills: 5 drills — Ø2.5, 2.8, 3.3, 3.7, 4.2 mm
• Guide Drill: 1 drill — Ø2.0 mm (SD-GD20)
• Depth Stoppers: 7 stoppers — 4, 5, 6, 7, 8, 9, 10 mm
• Recommended Drilling Speed: 800 to 1200 RPM
• Materials: Stainless steel, silicone ring, titanium
• Supply Condition: Non-sterile (sterilize before clinical use)
• Sterilization: Autoclavable (121°C / 30 min or 132°C / 15-25 min)
• EO Gas Sterilization: Compatible per ISO 11135
• Cassette: Organized labeled case with spare slot

Packaging

• 5 x Drills
• 7 x Stoppers
• 1 x Guide Drill

Directions for Use

Pre-Surgical Planning

• Measure the depth of the residual bone of the maxillary sinus through pre-operative X-ray or CBCT imaging
• Plan the implant position, diameter, and required sinus floor elevation height
• Verify the case is suitable for crestal sinus elevation (typically 4-8 mm of residual ridge height)
• Confirm the patient has no contraindications such as active sinus pathology, immune deficiency, or relevant systemic conditions

Kit Preparation

• Sterilize the complete kit via autoclave following the recommended protocol (121°C / 30 min or 132°C / 15-25 min)
• Open the sterilized cassette and verify all drills, stoppers, and accessories are present
• Arrange the drilling sequence — guide drill first, then expansion drills in ascending diameter order

Guide Drilling

• Attach the Ø2.0 mm guide drill (SD-GD20) to a compatible surgical motor handpiece
• Set the rotation speed to 800-1200 RPM with copious saline irrigation
• Drill the pilot osteotomy to 2 mm shorter than the measured residual bone depth
• Example: if measured residual bone depth is 6 mm, use the number 4 stopper (SDST-04) to limit guide drilling depth

Sinus Expansion Drilling

• For safety, mount a stopper one number lower than the planned final drilling depth on the sinus expansion drill
• Example: For 5 mm depth drilling, mount the number 4 stopper (SDST-04)
• Begin with the smallest sinus expansion drill (SED-25, Ø2.5 mm) at 800-1200 RPM with copious irrigation
• Drill until the stopper reaches the alveolar crest — this safely limits drilling depth
• Progress through the expansion drills in ascending diameter (SED-28 → SED-33 → SED-37 → SED-42) per the planned implant diameter
• The drills incrementally expand the osteotomy while preserving bone through the osseodensification effect

Progressive Depth Extension

• If drilling is not complete when the stopper reaches the alveolar crest, replace the stopper with one of higher number and continue drilling
• Example: If the number 5 stopper (SDST-05) is not enough, switch to number 6 (SDST-06) to drill deeper
• Progress the depth gradually to gently lift the Schneiderian membrane through controlled hydraulic pressure
• Avoid sudden deep drilling — the controlled stopper-based approach is essential for sinus floor safety

Sinus Floor Elevation and Graft Placement

• Verify the sinus floor has been lifted to the planned height without membrane perforation
• Place the chosen bone graft material into the prepared site to fill the elevated compartment
• Proceed with implant placement using the implant manufacturer’s protocol

Post Use Care

• Disassemble all components and rinse with flowing water to remove body fluids and debris
• Clean each drill and stopper thoroughly using suitable brushes (do not use metal brushes or steel wool)
• Use a surgical instrument cleaner per the cleaner manufacturer’s instructions
• Rinse three times in flowing or distilled water for 20 seconds each
• Air-dry or wipe with clean cloth and alcohol to prevent water spots
• Sterilize via autoclave or EO gas per the recommended protocols
• Return all components to their designated positions in the cassette for storage

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
