Surgident GBR Comfix Kit | 225 Screw Holes (SD-GBRT)

Description

The Surgident GBR Comfix Kit is a complete surgical solution for fixing barrier membranes, titanium meshes, and block bone grafts during guided bone regeneration procedures. Built around 225 organized screw and tack positions, the kit provides a structured selection of bone tacs (3.5 mm and 5.0 mm) along with dedicated organisers, pilot drills, a tap applicator, a mallet, an NLBC drill with depth stopper, and length-graded tac remover drivers — everything the clinician needs from initial pilot drilling through final tack removal at re-entry. The applicator instruments feature strong, secure connections that grip screws and tacks reliably without dropping them mid-procedure, allowing the surgeon to focus on graft management instead of component handling. Housed in a sterilizable tray with marked positions for each component, the kit supports efficient, predictable workflow across simple ridge augmentation and complex block bone fixation cases alike.

Key Features

• Complete GBR fixation kit for membranes, titanium meshes, and block bone grafts
• 225 organized screw holes for systematic bone tack and screw storage
• Includes 3.5 mm and 5.0 mm bone tac organisers color-coded red and blue
• Three pilot drill sizes (Ø1.2, Ø1.4, Ø1.8 mm) for stepped osteotomy preparation
• Tap applicator and stainless steel mallet for controlled tack insertion
• NLBC Ø5.0 mm drill with depth stopper for precise controlled drilling
• Three tac remover drivers (L 52 mm, L 26 mm, L 20 mm) for second-stage removal access
• Housed in a sterilizable tray with labeled positions for organized chairside use

Specifications

• Product Type: Complete GBR Fixation Kit
• Brand: Surgident
• Model Code: SD-GBRT
• Screw Holes: 225 organized positions
• Bone Tac Sizes: 3.5 mm and 5.0 mm
• Pilot Drill Sizes: Ø1.2 mm, Ø1.4 mm, Ø1.8 mm
• NLBC Drill: Ø5.0 mm with depth stopper
• Tac Remover Drivers: L 52 mm, L 26 mm, L 20 mm
• Applications: Membrane fixation, titanium mesh fixation, block bone graft fixation
• Tray: Sterilizable cassette with labeled positions
• Sterilization: Autoclavable complete kit

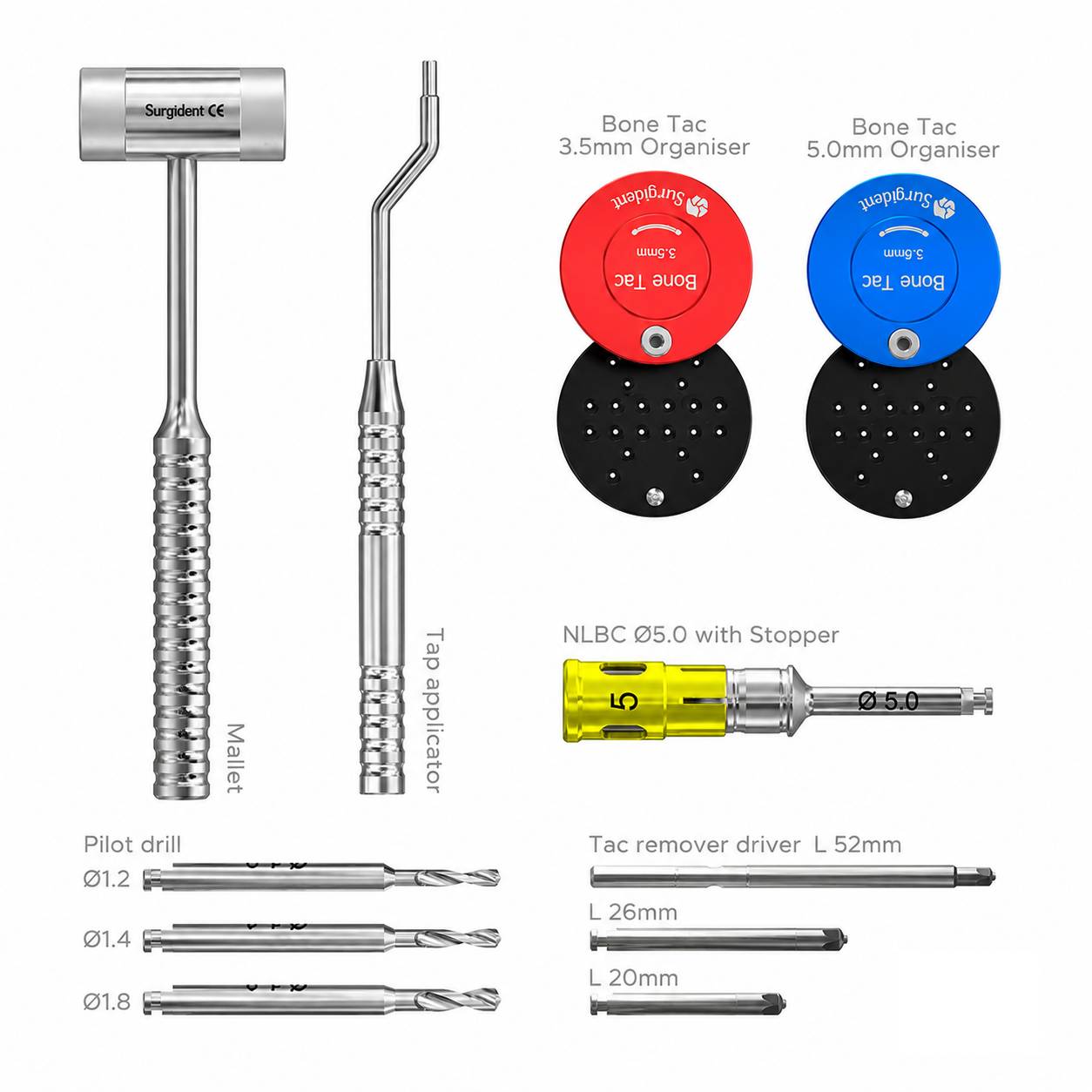

Packaging

• 1 x Mallet
• 1 x Tap Applicator
• 2 x Bone tac organisers
• 3 x Pilot drills
• 1 x NLBC drill with stopper
• 3 x Tac remover drivers
• 1 x Sterilizable tray

Directions for Use

Pre-Surgical Setup

• Open the sterilized Comfix Kit tray and verify all components are present
• Confirm the case plan and choose appropriate bone tac size (3.5 mm or 5.0 mm) for the cortical bone available
• Prepare the graft material and barrier membrane or titanium mesh ahead of fixation

Site Preparation

• Complete flap elevation and expose the defect requiring augmentation
• Place the bone graft material and trim the barrier or mesh to cover the defect with appropriate margin
• Identify the bone tack fixation positions around the periphery of the membrane or mesh

Pilot Drilling (When Required)

• For dense cortical bone, select the appropriate pilot drill (Ø1.2, Ø1.4, or Ø1.8 mm)
• Use the pilot drill to create a small guide hole at each planned fixation point
• Use the NLBC Ø5.0 mm drill with stopper when preparing wider fixation sites for screws
• Irrigate copiously with saline during all drilling steps

Bone Tac Insertion

• Pick up a bone tac from the corresponding 3.5 mm (red) or 5.0 mm (blue) organiser using the tap applicator
• Position the tac perpendicular to the bone at the planned fixation point through the membrane
• Apply controlled mallet impulses to drive the self-tapping tip securely into the cortex
• Continue until the tac head sits flush against the membrane with even pressure distribution
• Repeat at each planned fixation point until the membrane is fully stabilized

Flap Closure

• Verify all tacks are seated firmly with no membrane movement
• Close the soft tissue flap with tension-free primary closure over the fixed membrane
• Suture per the planned protocol and deliver post-operative instructions

Tac Removal at Re-Entry

• At the re-entry appointment, expose the augmented site with a flap reflection
• Select the appropriate tac remover driver length (L 20, 26, or 52 mm) based on access
• Engage and unscrew each tack carefully without damaging the newly formed bone
• Proceed with implant placement or further prosthetic planning as per the case

Post Use Care

• Return all instruments to their designated positions in the tray after the procedure
• Clean each instrument thoroughly and inspect for damage before sterilization
• Sterilize the complete kit via autoclave following the recommended protocol
• Store the sterilized kit in a clean dry environment ready for the next case

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
