Surgident Trephine Bur 13mm – Assorted (SD-TBA)

Description

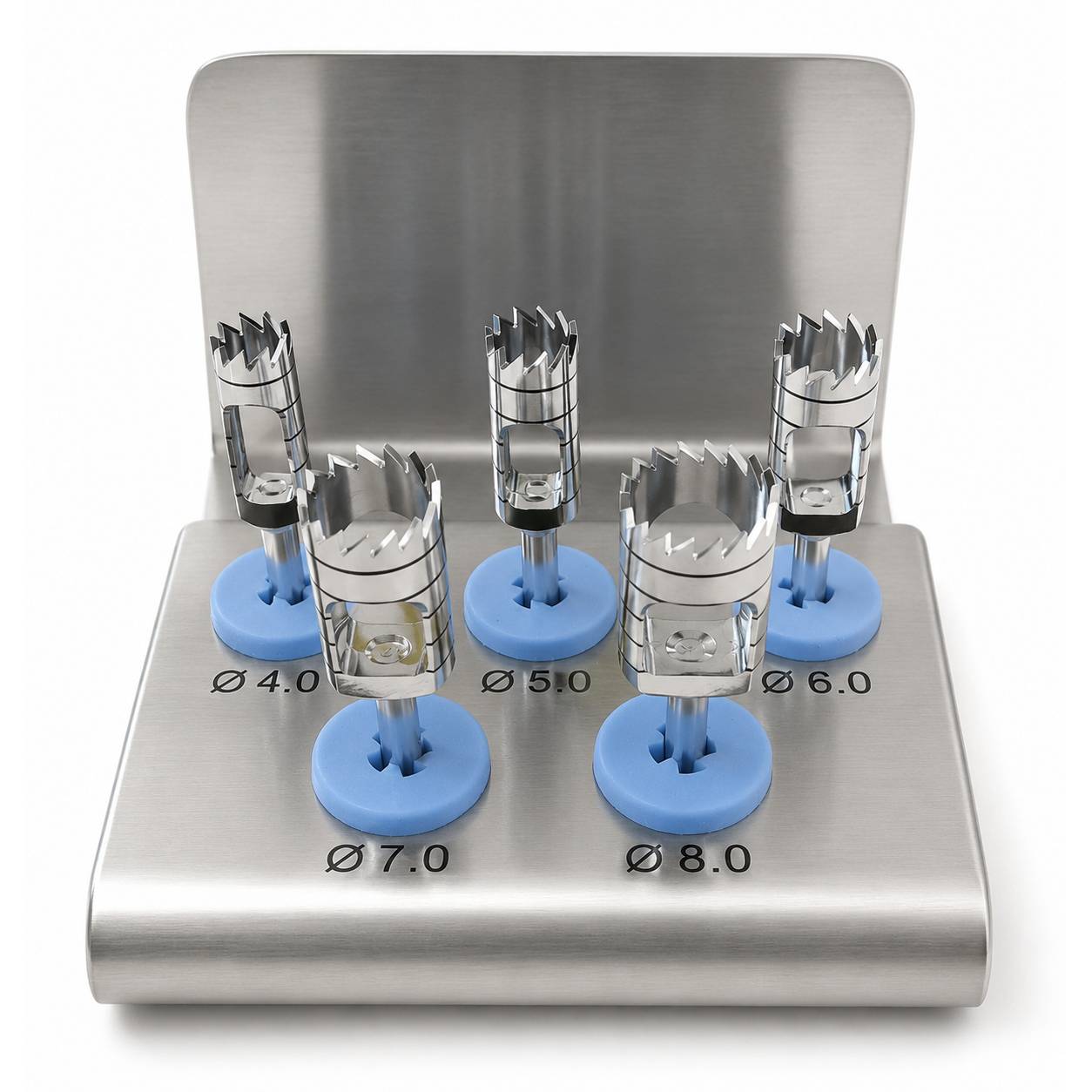

The Surgident Trephine Bur Assorted Set (SD-TBA) brings together five precision-engineered trephine burs in a compact 13 mm working length — purpose-built for autogenous bone harvesting, implant retrieval, and bone core preparation across routine intraoral surgical sites. The serrated cutting edges deliver clean, efficient bone cutting while the hollow tubular design captures intact bone cores within the bur lumen, preserving valuable autogenous block grafts without fragmentation. With diameters ranging from Ø4.0 to Ø8.0 mm in 1 mm increments, the kit offers complete flexibility to match the case — whether harvesting a small ramus chip, retrieving a failed implant, or preparing a wider core for ridge augmentation work. The shorter 13 mm working length provides better control and access in anterior or shallow harvest sites compared to longer trephines. Supplied in an organized stainless steel stand with labeled silicone-cushioned positions.

Key Features

• Complete assorted set of 5 trephine burs in Ø4.0, 5.0, 6.0, 7.0, and 8.0 mm diameters
• Compact 13 mm working length offers improved control in anterior and shallow surgical sites
• Aggressive serrated cutting edges deliver clean efficient bone-cutting action
• Hollow tubular design captures intact bone cores without fragmentation
• Graduated depth markings along the shaft provide visual drilling depth control
• Surgical-grade stainless steel construction for durability across many sterilization cycles
• Compatible with standard surgical motor contra-angle handpiece
• Supplied in a sterilizable stainless steel stand with labeled silicone-cushioned positions

Specifications

• Product Type: Trephine Bur Set (Assorted)
• Brand: Surgident
• Model Code: SD-TBA
• Number of Burs: 5 trephine burs
• Diameters Included: Ø4.0, 5.0, 6.0, 7.0, 8.0 mm
• Working Length: 13 mm
• Cutting End Design: Aggressive serrated cutting edges
• Body Design: Hollow tubular for intact bone core capture
• Depth Markings: Graduated markings along the shaft
• Material: Surgical-grade stainless steel
• Shank Type: Standard contra-angle (CA) surgical motor compatible
• Stand: Sterilizable stainless steel base with labeled silicone positions
• Sterilization: Autoclavable
• Applications: Autogenous bone block harvesting, implant retrieval, ridge augmentation core preparation

Packaging

• 1 x Ø4.0mm Trephine Drill
• 1 x Ø5.0mm Trephine Drill
• 1 x Ø6.0mm Trephine Drill
• 1 x Ø7.0mm Trephine Drill
• 1 x Ø8.0mm Trephine Drill

Directions for Use

Pre-Surgical Planning

• Identify the clinical indication — autogenous bone harvesting, implant retrieval, or bone core preparation
• For bone harvesting: select the donor site (chin, anterior ramus, tuberosity) based on the required graft volume — the 13 mm length suits anterior and shallow sites particularly well
• For implant retrieval: measure the failed implant diameter via radiography and select the trephine 1 mm larger
• Plan the drilling depth based on the target bone volume or implant length

Pre-Operative Preparation

• Sterilize the complete kit via autoclave following the recommended surgical instrument protocol
• Achieve adequate local anesthesia at the surgical site
• Complete the flap elevation to fully expose the bone surface for harvesting or the failed implant for retrieval

Trephine Selection and Setup

• Select the appropriate diameter trephine bur from the stand based on the case plan
• Attach the bur to a compatible surgical motor contra-angle handpiece
• Set the motor to a low-speed range (typically 800-1500 RPM) with copious saline irrigation
• Verify firm bur engagement before contacting bone

Bone Block Harvesting

• Position the trephine perpendicular to the bone surface at the planned harvest position
• Apply controlled steady pressure with copious saline irrigation
• Drill to the planned depth using the graduated markings on the shaft for visual depth control
• Complete the core cut and gently rock the trephine to release the bone block
• Carefully remove the trephine — the intact bone core remains captured within the hollow lumen
• Push the bone core out of the trephine into a sterile container for grafting

Implant Retrieval

• Choose a trephine 1 mm larger than the failed implant diameter
• Center the trephine over the failed implant with the cutting edge engaging the bone around the implant
• Drill carefully to the implant depth, using copious irrigation to prevent bone heat damage
• The hollow trephine cuts a clean cylindrical osteotomy around the implant
• Remove the trephine and use appropriate forceps to extract the loosened implant from the site
• Manage the residual defect with appropriate grafting and membrane coverage as needed

Post Use Care

• Remove any captured bone particles from each trephine lumen using a sterile cleaning rod or brush
• Clean all burs with surgical-grade detergent under flowing water
• Use a non-metal brush to gently scrub the serrated cutting edges and lumen interior
• Inspect each bur for damage, dull edges, or wear before sterilization
• Sterilize the complete kit via autoclave following the standard surgical instrument protocol
• Return all burs to their designated stand positions for storage

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
