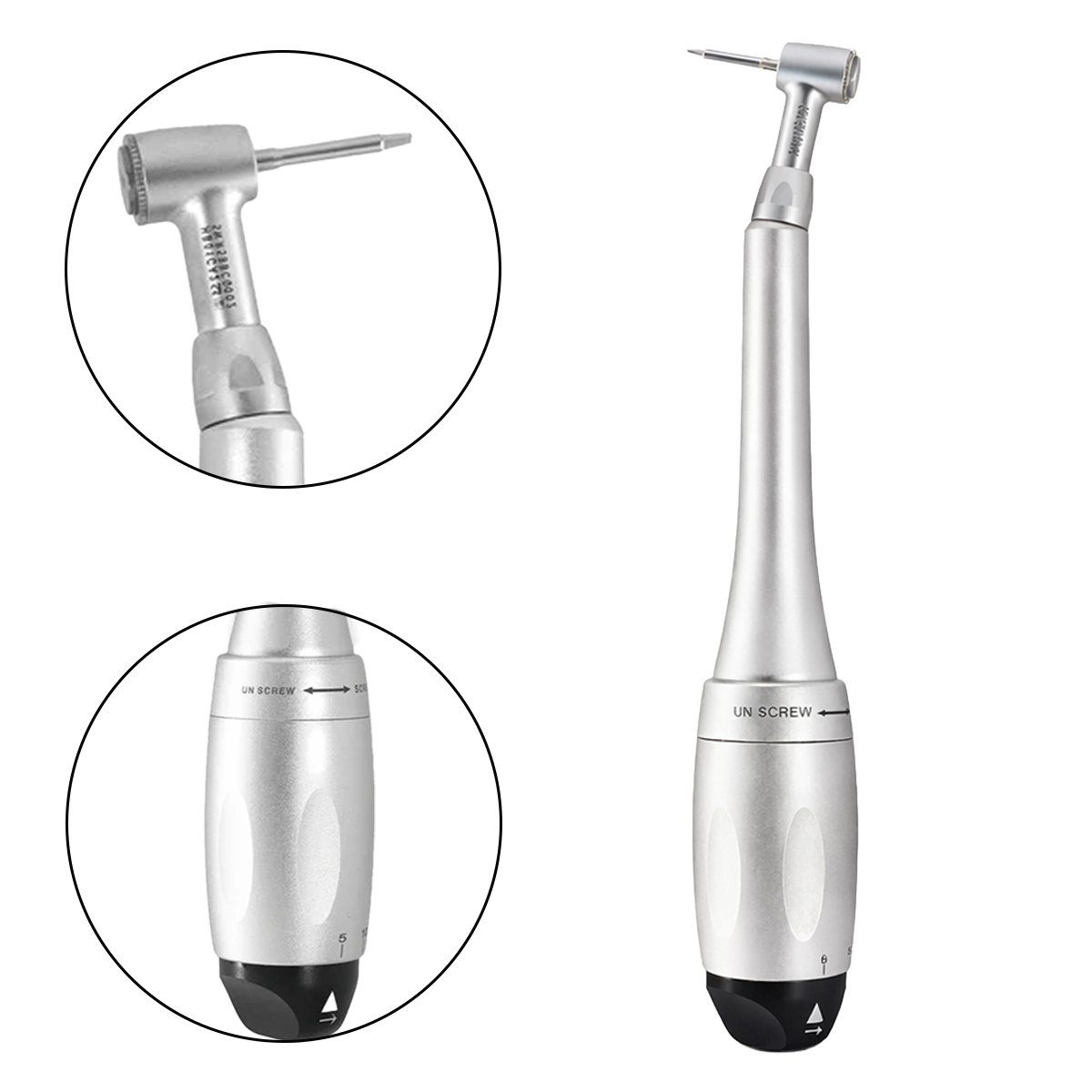

Surgident SD-Torque Implant Prosthetic Handpiece with 2 Drivers (SD-TQ)

Description

Dentaltech SD-Torque Implant Prosthetic Handpiece with 2 Drivers (SD-TQ) is a precision-driven instrument designed for accurate placement and removal of implant prosthetic components. Featuring a contra angle design, it enables easy access to posterior and molar regions where conventional straight tools are limited. The adjustable torque range of 5–35 Ncm ensures controlled force application, minimizing the risk of damage to implant and surrounding bone. Its ergonomic handle and long neck design enhance stability and operator comfort during procedures. The system includes 1.2 mm hex drivers in both short and long lengths, offering flexibility across various clinical applications. The detachable head supports autoclave sterilization, ensuring proper infection control, while the body can be disinfected . Built with high-quality standards, this handpiece ensures durability, reliability, and efficient performance in implant dentistry.

Key Features

• Contra angle design ensures superior access to posterior and molar regions
• Adjustable torque range provides precise and controlled tightening
• Ergonomic handle improves grip stability and operator comfort
• Includes 1.2 mm hex drivers in short and long sizes
• Reduces risk of implant and prosthetic component damage
• Detachable head allows effective sterilization and infection control
• High quality construction ensures durability and consistent performance
• Compatible with standard contra angle implant driver systems

Specifications

• Torque Range: 5–35 Ncm
• Driver Head Ø: 1.2 mm
• Driver Length: Short (23.5mm) & Long (30mm)
• Design Type: Contra Angle
• Connection Type: Latch System
• Sterilization: Head Only

Packaging

Dentaltech SD-Torque Implant Prosthetic Handpiece with 2 Drivers (SD-TQ)

• 1 x Prosthetic Handpiece
• 2 x Drivers (Short (23.5mm) & Long (30mm))

Directions for Use

Preparation

• Select appropriate driver and ensure components are clean and lubricated
• Inject handpiece oil into lubrication hole before use

Adjustment

• Set desired torque value using torque selector
• Insert the selected driver securely into the contra angle head

Operation

• Engage the driver with implant screw or prosthetic component
• Rotate the handle clockwise or counterclockwise for tightening or loosening
• Maintain steady controlled movement for accurate torque delivery

Post Use Care

• Disassemble head from body before sterilization
• Autoclave only the head for recommended duration
• Disinfect the body using alcohol and avoid autoclaving it
• Store the device with torque setting at 5 Ncm after use

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product
