Surgident Convex Osteotome Set – R Set for Sinus Lift (SD-CONVEX)

Description

Surgident Convex Osteotome Set – R Set (SD-CONVEX) is a specialized surgical instrument system developed for sinus lift procedures, bone expansion, and implant site preparation. The set includes five convex osteotomes with sequential diameters that facilitate controlled and progressive ridge expansion while preserving bone integrity. The convex tip design is specifically engineered to support predictable sinus floor elevation and bone condensation during implant surgery. Manufactured from high-quality surgical-grade stainless steel, the instruments provide excellent durability, corrosion resistance, and long-term clinical performance. The included color-coded depth-control stoppers allow clinicians to regulate insertion depth accurately, enhancing procedural safety and consistency. Supplied in a sterilization cassette for efficient organization and instrument management, the SD-Convex R-Set is suitable for implantologists and oral surgeons seeking reliable instruments for atraumatic osteotomy expansion and sinus augmentation procedures.

Key Features

• Convex tip design supports controlled sinus floor elevation
• Sequential osteotome sizes enable progressive ridge expansion
• Includes interchangeable depth control stoppers
• Color coded stoppers improve surgical workflow efficiency
• Suitable for bone condensation and implant site preparation
• Manufactured from surgical grade stainless steel
• Reusable instruments designed for long term clinical use
• Supplied in a sterilization cassette for organized storage

Specifications

• Product Type: Osteotome Set
• Model: SD-CONVEX
• Set Variant: R-Set
• Osteotome Sizes: 2.0 / 2.5 / 3.0 / 3.5 / 4.0 mm
• Tip Design: Convex
• Number of Instruments: 5
• Stopper Sizes: 4 / 6 / 8 / 10 / 12 mm
• Material: Surgical Grade Stainless Steel
• Depth Control: Color Coded Stoppers
• Application: Sinus Lift Procedures
• Reusable: Yes

Packaging

• 1 x SD-Convex R-Set Sterilization Cassette
• 5 x Convex Osteotomes (R-2.0, R-2.5, R-3.0, R-3.5, R-4.0)

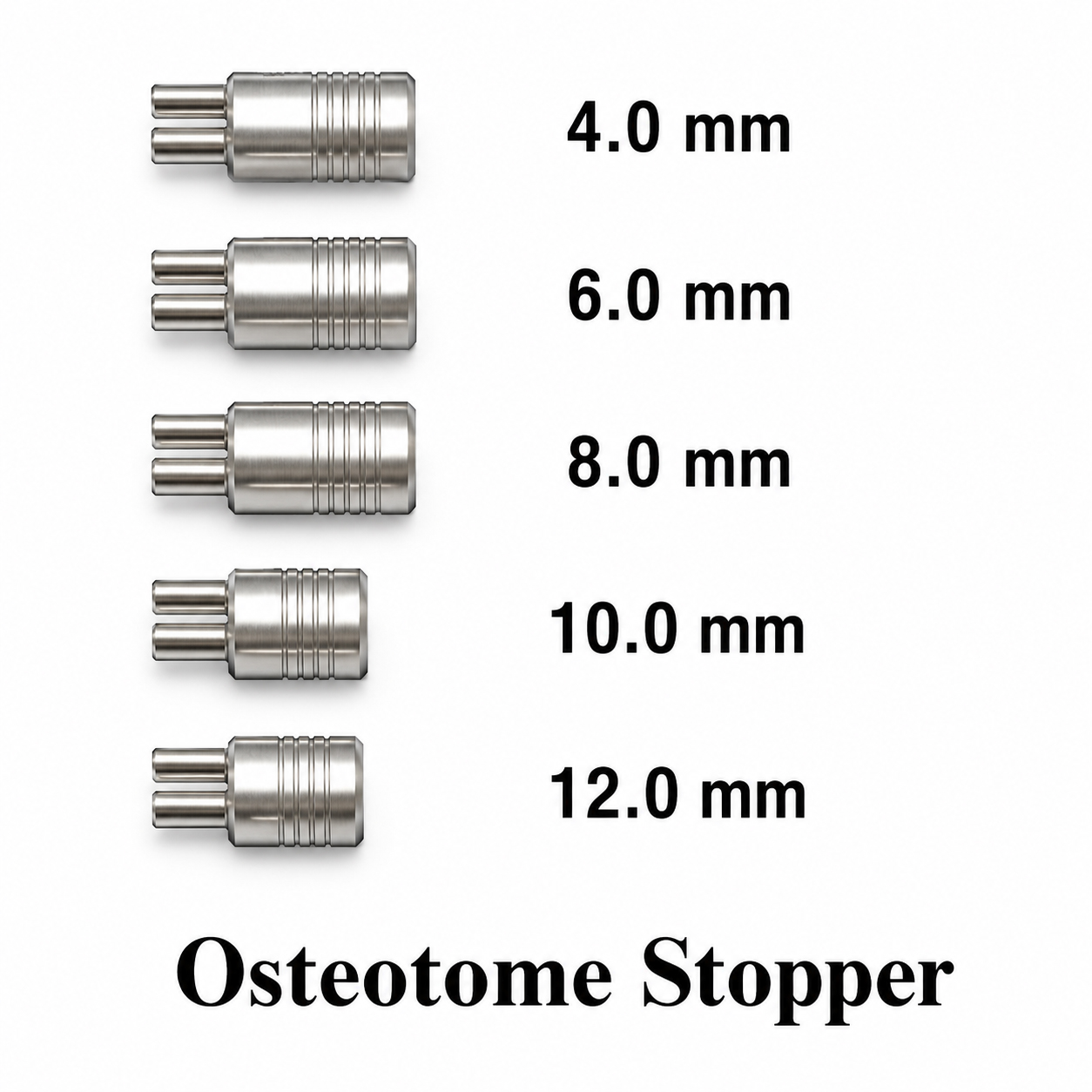

• 5 x Depth Control Stoppers (4 mm, 6 mm, 8 mm, 10 mm, 12 mm)

Directions for Use

Preparation

• Evaluate the implant site clinically and radiographically
• Select the appropriate osteotome diameter and stopper length
• Attach the desired depth control stopper before use

Osteotomy Expansion

• Begin with the smallest osteotome size
• Advance the instrument using controlled surgical force
• Progress sequentially through larger osteotome diameters

Sinus Elevation

• Use the convex tip to elevate the sinus floor gradually
• Monitor insertion depth using the selected stopper
• Perform bone condensation and graft placement as required

Post Use Care

• Clean instruments immediately after use
• Sterilize according to standard surgical protocols
• Store all components in the provided cassette

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product
