Surgident NLBC Bone Graft Kit (SD-NLBC)

Description

The Surgident NLBC (Never Loss Bone Collector) Bone Graft Kit is a precision-engineered drilling system designed to harvest and collect autogenous bone graft material directly during implant osteotomy preparation. Conventional implant drilling discards valuable bone chips into the suction line — the NLBC system captures these chips within the drill itself, recovering autogenous bone with osteogenic, osteoinductive, and osteoconductive properties that would otherwise be lost. The kit includes four color-coded NLBC drills with integrated depth stoppers covering the full implant osteotomy sequence, along with a stainless steel bone pusher that releases the collected bone particles cleanly into a sterile container for immediate grafting. This zero-waste approach to autogenous bone is particularly valuable for socket preservation, GBR, sinus augmentation, and any case where additional graft material enhances regenerative outcomes — all without a separate harvest procedure.

Key Features

• Never Loss Bone Collector system harvests autogenous bone during routine implant osteotomy
• Five matched harvest drill and collector pairs in Ø2.0, Ø3.0, Ø4.0, Ø5.0 mm diameters
• Stainless steel surgical tools with plastic kit casing for durable autoclavable use
• Collectors designed to capture the maximum bone volume at the drilling site
• Micro-drilling precision enables accurate osteotomy at each planned implant position
• Dedicated bone pusher releases the harvested bone cleanly into a sterile container
• Corrosion-resistant construction ensures consistent performance across many cases
• Eliminates the need for a separate bone harvest procedure or donor site

Specifications

• Product Type: Bone Harvest Drill and Collector Kit (Never Loss Bone Collector)
• Brand: Surgident
• Model Code: SD-NLBC
• System Type: Bone-harvesting implant osteotomy drills with matching collectors
• Tools Material: Stainless steel
• Kit Case Material: Plastic

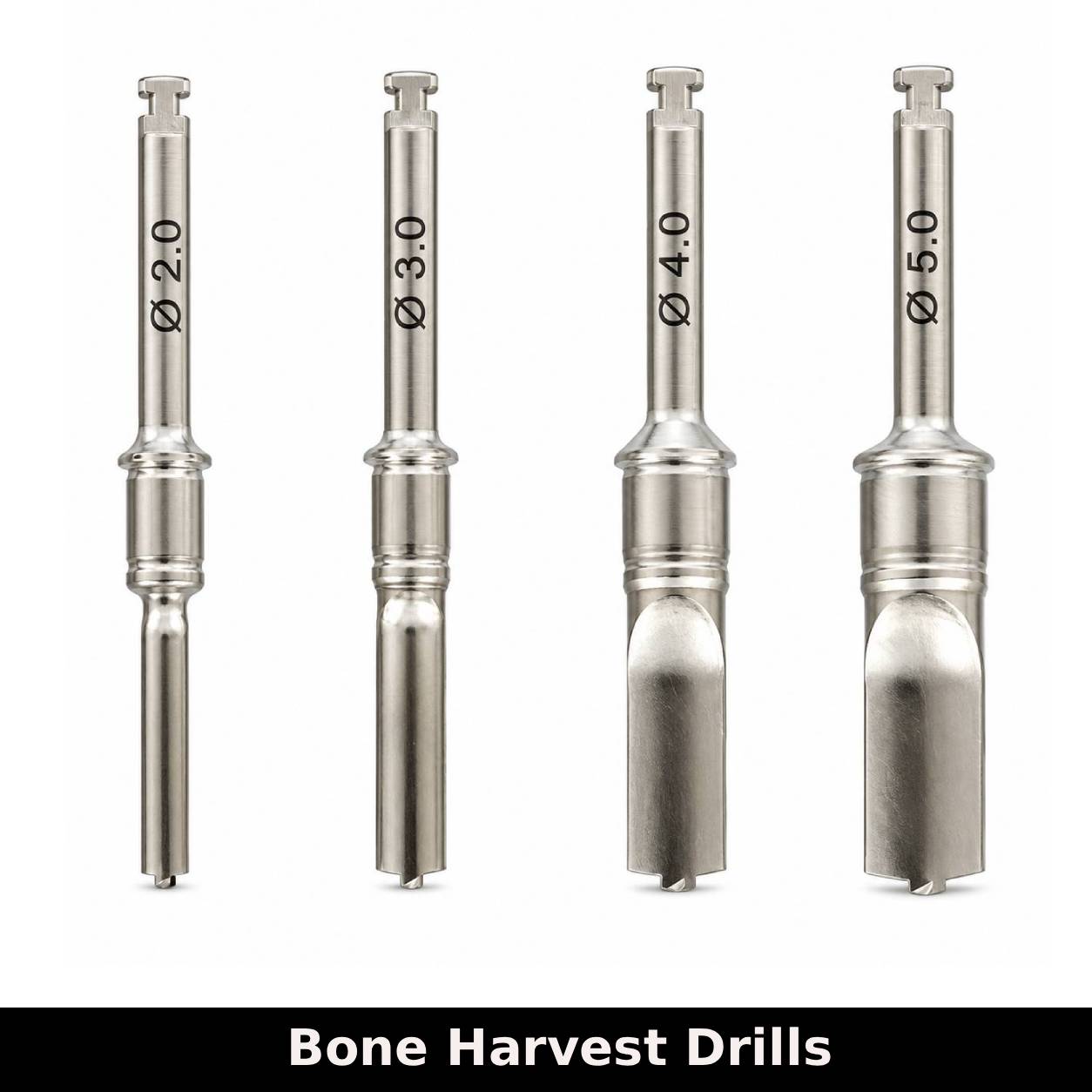

• Bone Harvest Drills Included: 5 units
• Drill Diameters: Ø2.0 mm, Ø3.0 mm, Ø4.0 mm, Ø5.0 mm
• Bone Harvest Collectors Included: 5 units
• Collector Diameters: Ø2.0 mm, Ø3.0 mm, Ø4.0 mm, Ø5.0 mm (matched to drills)
• Bone Pusher: Included for clean bone particle release
• Properties: Durable, autoclavable, corrosion-resistant
• Application: Autogenous bone collection during implant osteotomy
• Sterilization: Autoclavable

Packaging

• 4 x Bone Harvest Drills
• 4 x Bone Harvest Collectors
• 1 x Bone Pusher

Directions for Use

Pre-Surgical Setup

• Open the sterilized SD-NLBC kit and verify all drills, collectors, the bone pusher, and the case are present
• Have a sterile container ready for collecting the harvested bone particles
• Plan the implant osteotomy sequence and identify which drill diameters will be used

Drill and Collector Setup

• Confirm the implant diameter and osteotomy sequence per the implant manufacturer’s protocol
• Select the appropriate harvest drill matched to the planned diameter (Ø2.0, 3.0, 4.0, or 5.0 mm)
• Attach the matching diameter bone harvest collector to the drill assembly
• Connect the drill to a compatible surgical motor handpiece

Osteotomy with Bone Collection

• Begin drilling at the planned implant site using normal saline irrigation
• The harvest drill cuts the osteotomy while the matching collector captures the released bone particles
• Use micro-drilling motion for accurate point preparation at each planned position
• Progress through the drilling sequence using successive drill and collector sizes as needed
• Remove the drill assembly carefully to preserve the collected bone within the collector

Bone Particle Recovery

• Separate the bone harvest collector from the drill
• Hold the collector over a sterile collection container or bowl
• Insert the bone pusher into the collector and push the harvested bone particles out into the container
• Repeat with each collector used during the osteotomy sequence
• Keep the collected bone moist with sterile saline until ready for grafting

Graft Application

• Use the collected autogenous bone immediately for the planned augmentation
• Mix with allograft, xenograft, or other graft materials as the case requires
• Place the graft into the recipient site — socket preservation, GBR defect, sinus floor, or peri-implant gap
• Cover with a barrier membrane and proceed with the planned closure

Post Use Care

• Clean each drill and collector thoroughly using the bone pusher and a soft surgical brush to remove all bone debris
• Rinse all stainless steel components with surgical-grade detergent and distilled water
• Inspect each drill and collector for damage, dull edges, or wear before reuse
• Sterilize the components via autoclave following the recommended protocol
• Return all items to their designated positions in the plastic case for storage

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
