Surgident TOLA Kit II for Lateral Sinus Approach with Stoppers (SD-TOLA2)

Description

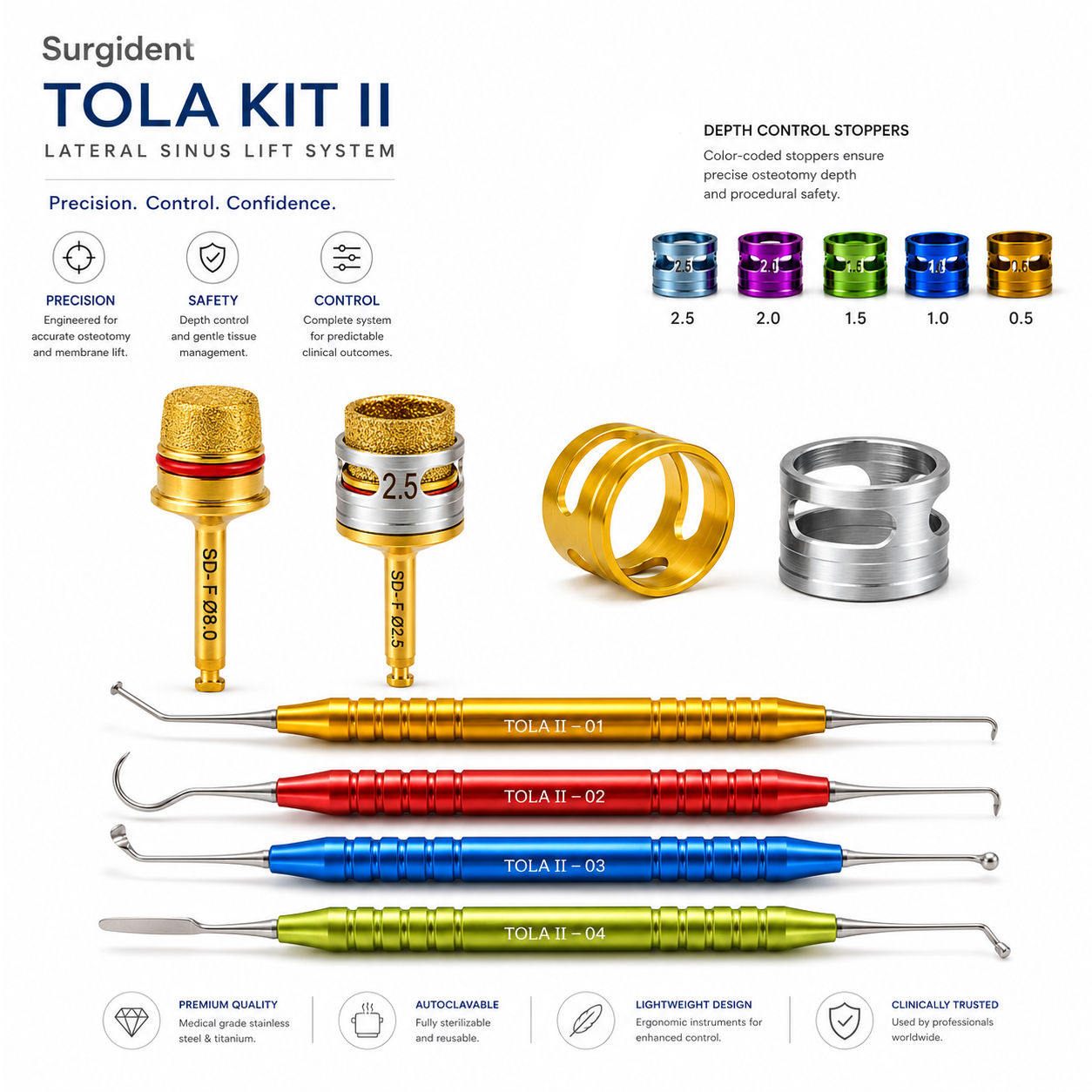

Surgident TOLA Kit II (SD-TOLA2) is a comprehensive lateral sinus lifting system designed for clinicians performing open sinus augmentation procedures in cases of severe posterior maxillary bone resorption. The kit provides all essential instruments required for creating a lateral window, elevating the Schneiderian membrane, and preparing the site for bone grafting and implant placement. The system incorporates specialized lateral cutters, core drills, sinus drills, reamers, and membrane curettes to ensure controlled and predictable surgery.

A key feature of the kit is its stopper-guided drilling system, which helps prevent excessive penetration into the sinus cavity and enhances procedural safety. The non-cutting rounded reamer design minimizes the risk of membrane damage while allowing efficient sinus floor preparation. The included curettes facilitate gentle membrane elevation and graft placement. Designed for precision, safety, and ease of use, the TOLA Kit II is an ideal solution for clinicians seeking reliable outcomes during lateral sinus augmentation procedures.

Key Features

• Designed specifically for lateral sinus approach procedures.
• Unique stopper system helps prevent over-drilling.
• Non-sharp reamer design minimizes membrane perforation risk.
• Includes complete set of drills, reamers, and curettes.
• Provides precise depth control during osteotomy preparation.
• Supports safe Schneiderian membrane elevation.
• Minimally invasive surgical workflow.
• Autoclavable surgical tray for sterilization and organization.
• High-quality stainless steel instruments for durability.
• Reduces chair time and improves procedural predictability.

Specifications

• Product Name: Surgident TOLA Kit II for Lateral Sinus Approach with Stoppers
• Model: SD-TOLA2
• Procedure Type: Lateral Sinus Lift / Open Sinus Augmentation
• Material: Surgical Grade Stainless Steel Instruments
• Stopper Sizes: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm
• Lateral Side Cutter Diameter: Ø5.0 mm, Ø7.0 mm
• Lateral Core Drill Diameter: Ø6.0 mm, Ø8.0 mm
• Lateral Sinus Drill Diameter: Ø8.0 mm
• Lateral Sinus Reamer Diameter: Ø6.0 mm, Ø8.0 mm
• Curette Types: TOLA2-01, TOLA2-02, TOLA2-03, TOLA2-04
• Sterilization: Autoclavable up to 134°C
• Application: Lateral Window Sinus Elevation Procedures
• Depth Control: Stopper-Guided Surgical System

Packaging

• 1 × Lateral Side Cutter Ø5.0 mm (LASC-50)
• 1 × Lateral Side Cutter Ø7.0 mm (LASC-70)
• 1 × Lateral Core Drill Ø6.0 mm (LACD-60)
• 1 × Lateral Core Drill Ø8.0 mm (LACD-80)
• 1 × Lateral Sinus Drill Ø8.0 mm Round (LASD-R80)
• 1 × Lateral Sinus Drill Ø8.0 mm Flat (LASD-F80)
• 1 × Lateral Sinus Reamer Ø6.0 mm (LASR-60)
• 1 × Lateral Sinus Reamer Ø8.0 mm (LASR-80)
• 1 × Stopper 0.5 mm (LAST-05)
• 1 × Stopper 1.0 mm (LAST-10)
• 1 × Stopper 1.5 mm (LAST-15)
• 1 × Stopper 2.0 mm (LAST-20)
• 1 × Stopper 2.5 mm (LAST-25)
• 1 × Curette TOLA2-01
• 1 × Curette TOLA2-02
• 1 × Curette TOLA2-03
• 1 × Curette TOLA2-04
• 1 × Sterilizable Surgical Storage Tray/Box

Directions for Use

Step 1: Pre-Surgical Assessment

• Evaluate residual bone height using CBCT imaging.
• Identify sinus anatomy and membrane condition.
• Select the appropriate surgical site.
• Plan the lateral window dimensions.

Step 2: Lateral Window Preparation

• Reflect a full-thickness flap to expose the lateral wall.
• Select the appropriate lateral side cutter or core drill.
• Attach the desired depth stopper.
• Create the lateral access window with controlled drilling.

Step 3: Sinus Floor Preparation

• Use sinus drills and reamers sequentially.
• Advance carefully using stopper-guided depth control.
• Maintain copious irrigation during drilling.
• Preserve membrane integrity throughout the procedure.

Step 4: Membrane Elevation

• Use TOLA curettes to gently detach the Schneiderian membrane.
• Elevate the membrane circumferentially.
• Inspect for membrane integrity.
• Create sufficient space for graft placement.

Step 5: Bone Grafting and Implant Site Preparation

• Place graft material beneath the elevated membrane.
• Condense graft material as required.
• Prepare implant osteotomy if indicated.
• Complete implant placement according to protocol.

Step 6: Closure

• Reposition the flap.
• Achieve tension-free suturing.
• Verify surgical site stability.
• Follow standard post-operative protocols.

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
