Surgident Implant Positioning Kit without Guide Stent (SD-IPO)

Description

The Surgident Implant Positioning Kit (SD-IPO) is a freehand system that helps you position implants accurately without fabricating a surgical guide stent. It makes the prosthetic endpoint predictable during surgery — letting you verify the site and the final crown’s size and shape before the osteotomy is committed. The kit pairs a Ø2.0 × 32 mm positioning drill (P-DR20) with five positioning guides and five guide pins sized 6, 7.5, 9, 10.5 and 12 mm, each matched to the mesio-distal crown width of the tooth being replaced. The drill engages through the selected guide to start the orifice; the same-size guide pin then seats into that site as a physical reference. In multiple-implant cases, the standing pin controls inter-implant spacing, parallelism and crown footprint as adjacent sites are prepared — a practical, stent-free route to restoratively driven implant placement.

Key Features

• Freehand placement — no surgical stent needed
• Checks final crown size and shape during surgery
• Five sizes (6–12 mm) matched to crown width
• Drill engages through guide for accurate orifice
• Same-size guide pin marks the prepared site
• Standing pins control spacing and parallelism
• Separated drill, guide and pin components
• Colour-coded by size for quick identification

Specifications

• Material — surgical stainless steel
• Positioning drill — P-DR20, Ø2.0 mm × 32 mm, stainless steel
• Positioning guides — PG-060 to PG-120, 6 / 7.5 / 9 / 10.5 / 12 mm, 6 mm

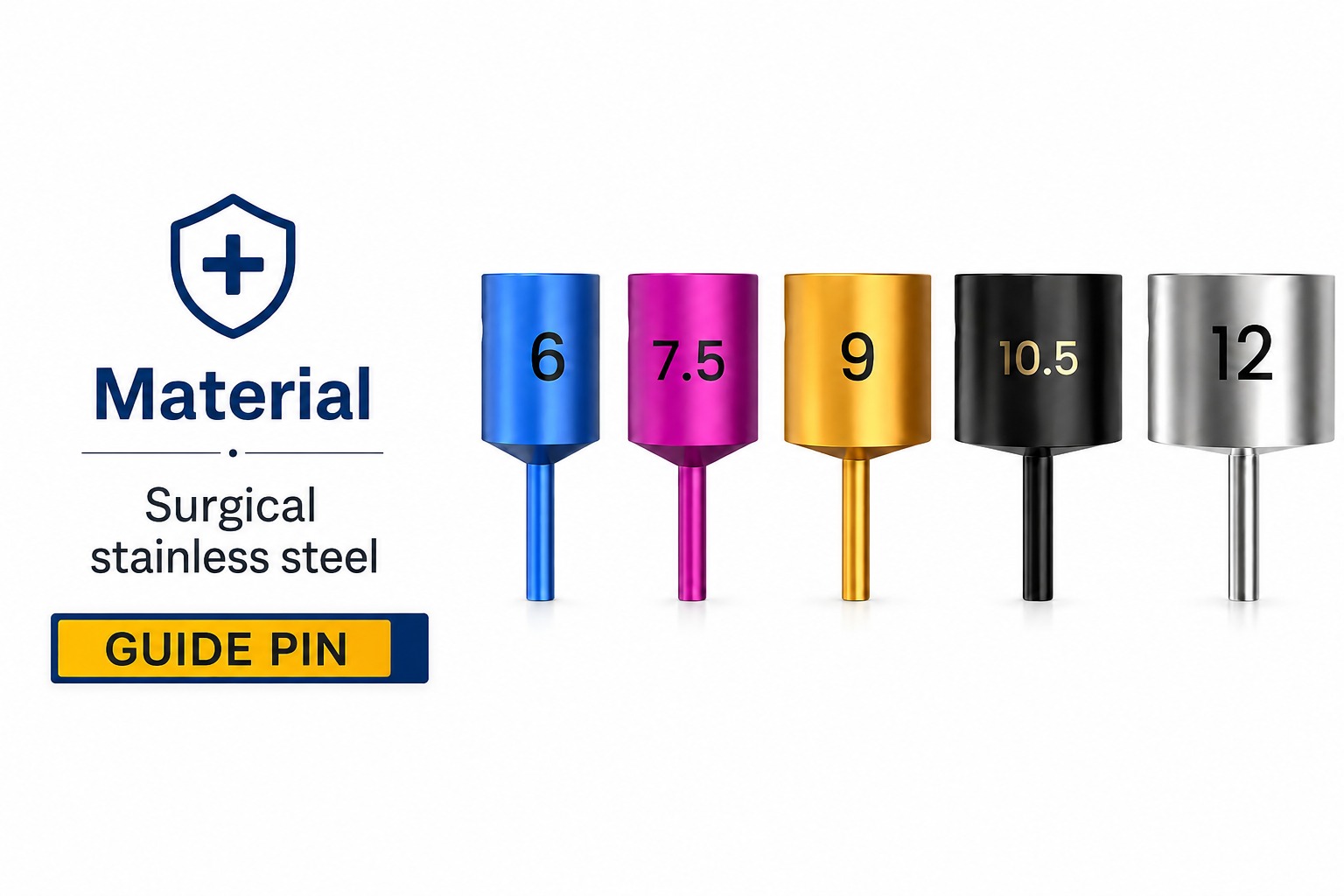

• Guide pins — GP-060 to GP-120, Ø6 / 7.5 / 9 / 10.5 / 12 mm, 17 mm height, stainless steel
• Size range — 6 to 12 mm, matched to mesio-distal crown width
• Sterilisation — autoclavable, reusable

Packaging

• Positioning Drill
• 10 x Guide Pins (2 Of Each Size)
• 5 x Positioning Guides

Directions for Use

• Select the positioning guide that matches the mesio-distal width of the missing tooth.
• Slide the guide over the positioning drill and prepare the osteotomy on the planned site.
• Replace the drill with the same-size guide pin and seat it into the prepared site to preserve the space.
• For the next missing tooth, repeat steps 1–2 — the standing pin maintains correct spacing and parallelism between sites.
• Continue placing implants into the marked positions per your routine surgical protocol.
• Clean components ultrasonically, then autoclave before reuse.

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
