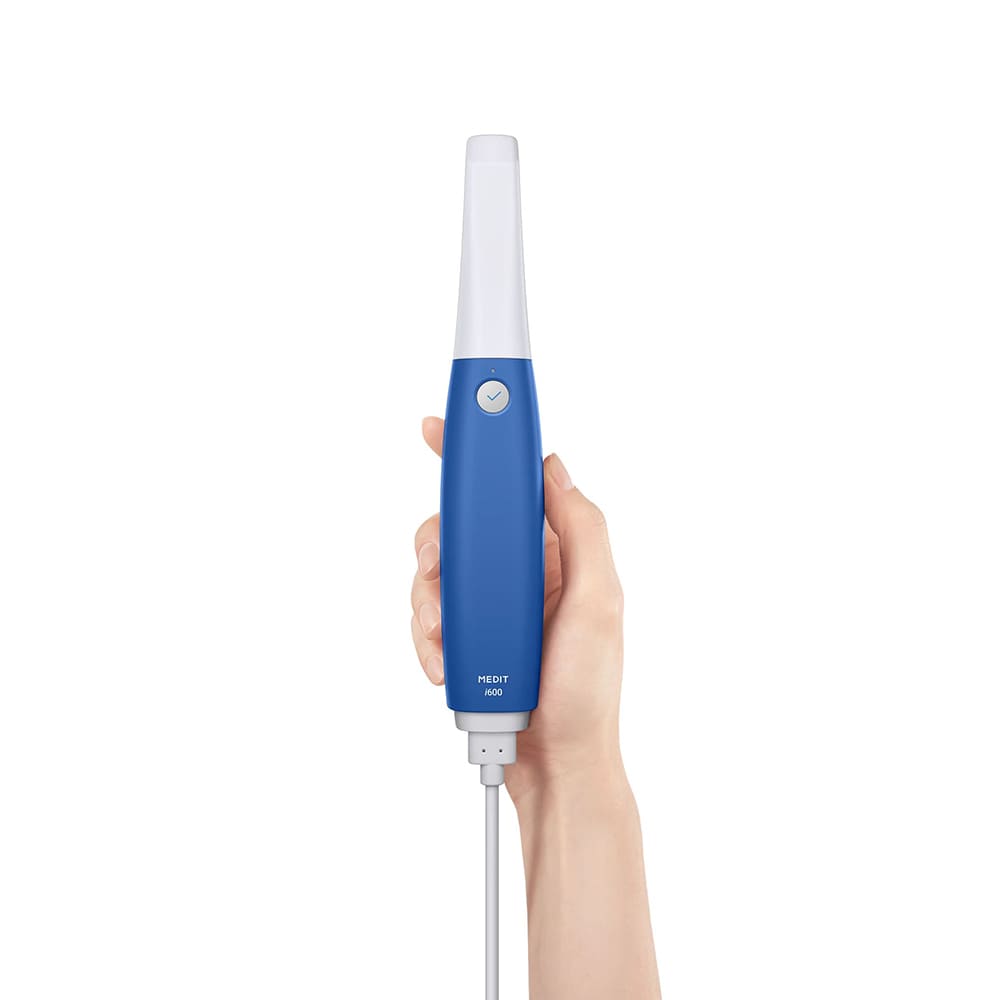

Medit i600 Intraoral Scanner

Description

The Medit i600 Intraoral Scanner is the entry-level chairside digital impression scanner from Medit, built for clinics that want a simple, one-click scan workflow without the higher-tier features of the i700. It captures 3D models of teeth, gums, and bite registration without putty trays, and the system is set up so a first-time digital adopter can land usable scans within a short learning curve.

The i600 uses video-based capture at 35 frames per second with a real-time 3D motion preview during scanning, so the operator can confirm scan completeness before lifting the handpiece. Full-arch precision is rated at 10.9 µm ± 0.98 µm, which is suitable for crown and bridge, implant, and routine orthodontic case planning. A single-click button on the handpiece starts and pauses scanning, which keeps the chairside flow simple and reduces software navigation between cases.

The handpiece is lightweight and ergonomic for comfortable single-hand scanning, and ships with 180-degree reversible scan tips that can be flipped to either orientation, which helps in cramped posterior regions and when alternating between upper and lower arches. Setup is plug-and-scan over a single wired USB connection directly into the workstation, with no external power brick, and scans flow into the cloud-based Medit Link platform for lab handoff, treatment planning, and case storage across multiple workflows.

On Dentalkart, the Medit i600 intraoral scanner is available through the Request Price workflow with competitive India pricing, COD on eligible orders, and pan-India delivery on 100% genuine, warranty-backed equipment. If a more feature-rich Medit scanner is the better fit, see the Medit i700. Otherwise, compare more options in our intraoral scanner range, or browse more Medit products.

Frequently Asked Questions

Is the Medit i600 wireless?

No, the Medit i600 is a wired intraoral scanner that connects to the workstation over a USB cable. The wired connection keeps data transfer stable and scan accuracy consistent during continuous capture, with no battery state to monitor between patients and no wireless re-pairing during chairside use.

What is the scanning speed and accuracy of the Medit i600?

The Medit i600 captures intraoral scans at 35 FPS with real-time 3D motion video, and full-arch precision is rated at 10.9 µm ± 0.98 µm. That range covers crown and bridge, implant, and routine orthodontic case planning in everyday general practice without slowing the chairside workflow.

What is the difference between the Medit i600 and i700?

The Medit i600 is the simpler, more budget-friendly Medit scanner with one-click scanning and 35 FPS capture. The Medit i700 adds a built-in UV-C LED self-disinfection module, ortho auto tooth segmentation, a remote-control button, vibration cues for scan continuity, and dual buccal bites for occlusion. Both scanners share 180-degree reversible tips and direct USB connection.

What scan tips does the Medit i600 use?

The Medit i600 uses 180-degree reversible scan tips that can be flipped to either orientation on the handpiece. This is helpful in cramped posterior regions and when alternating between upper and lower arch scanning, and reduces the need for repositioning the handpiece during a multi-quadrant case.

What software platform does the Medit i600 use?

The Medit i600 runs on the open Medit Link platform, which is a cloud-based system for case storage, lab communication, and case-by-case workflow management. Medit Link supports a range of dental treatment types and lets the clinic send scans to a dental laboratory or treatment planner without proprietary file conversion.

Key Features

• Lightweight Design: The scanner’s lightweight and ergonomic design ensures ease of use and maneuverability during scanning procedures.
• Single-Click Scanning: With a single click, users can initiate the scanning process, streamlining the workflow and making it user-friendly.
• Versatile Scanning Tips: The scanner features 180-degree reversible tips, allowing for comprehensive scanning, even in challenging areas.
• Direct PC Connection: It can be directly connected to a PC, simplifying data transfer and enabling immediate access to scan results.
• Open Medit Link System: The scanner is compatible with the Medit Link system, which enhances communication with dental labs through a real-time cloud-based platform, supporting various treatment types and workflows.
• High Precision: The scanner provides a full arch scan with an impressive precision of 10.9μm ± 0.98, ensuring accurate digital impressions.
• Fast Scanning Frame Rate: With a scanning frame rate of up to 35 FPS (Frames Per Second), it captures real-time 3D motion video technology, improving the scanning experience.

Specifications

• Handpiece Dimensions: 248 x 44 x 47.4 mm
• Handpiece Weight: 245g
• Tip Size: 22.2 x 15.9 mm
• Scan Area: 15 x 13 mm
• Frames Per Second: Up to 35 FPS.
• Light Source: LED
• Reversible Tip: Yes
• Anti-Fogging Technology: Adaptive anti-fogging
• Imaging Technology: 3D moving video technology in full color
• Full Arch: 10.9μm ± 0.98.
• Autoclavable up to 100 times.
• Connectivity: USB 3.1 Gen1 connectivity

Packaging

• 1 x Intraoral Scanner
• 4 x Tips

Directions for Use

• Preparation: Ensure that the scanner is properly cleaned and sterilized according to your clinic’s hygiene protocols.Prepare the patient by explaining the scanning process and ensuring their comfort.
• Setup: Connect the scanner to a computer using the provided power delivery cable. Install and launch the scanner software on the computer.
• Scanning: Hold the scanner comfortably and position it in the patient’s mouth.Use the scanner’s ergonomic design to navigate and capture images of the oral cavity.Utilize the 180-degree reversible tips to access different areas of the mouth.Initiate scanning with a single click or follow the instructions provided by the scanner software.
• Real-Time Feedback: Monitor the scan in real-time on the computer screen to ensure that all necessary areas are captured.
• Completion: Once the scan is complete, review the scan data to verify its quality and completeness.
• Data Transfer: Save the scanned data on the computer for further processing or transfer it to the desired software or dental lab.
• Post-Scan Care: Clean and disinfect the scanner and tips according to your clinic’s protocols.
• Documentation: Properly document the scan and integrate it into the patient’s dental records.

Warranty & Service

• Manufacturer/Importer warranty for “Medit i600 Intraoral Scanner” 2 years as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will be exchanged or taken back only if the seal of the package or the Product is intact/not altered in any manner or has not been tampered with.
