Codyson Ultrasonic Cleaner CD-4862 (6 Litres)

Description

Key Features

Digital Control:User-friendly digital control panel for effortless operation.

3-Color LED Display:Clear visual display with three colors for easy status indication.

Adjustable Timer Settings:Customize cleaning durations with 6 timer settings.

Temperature Control:Optimize cleaning conditions with three temperature settings (50-55-60℃).

Stainless Steel Cleaning Tank:Large 6.0L SUS304 stainless steel tank for efficient cleaning.

Capacitive Touch Screen:User-friendly touch screen with a simplified 4-button design.

Frequency and Power:Operates at 35,000Hz frequency with a total power of 300W

Dual Ceramic Heaters:Efficient temperature control with two ceramic heaters (160W total).

Drainage System:Pull-out draining plastic basket and drainage valve for easy cleaning.

Durable Construction:4.5mm engineering plastic housing with a double fixing structure.

Visual Window:Large window in the lid for monitoring the cleaning process.

Certifications:CE, ROHS, GS, PSE, CETL certifications for safety and quality assurance.

Application Specific:Suitable for cleaning dental instruments and veterinary hospital surgical instruments.

Specifications

1. Model: CD-4862
2. Capacity: 6000ml
3. Tank Size/basket size: 32.3×20.5×9.9cm
4. Whole Unit Size:51.5×30.5x24cm
5. Transducers: 2 sets of industrial-grade transducers
6. Frequency: 35,000Hz
7. Power supply: 300W
8. Heaters: 2 ceramic heaters (2*80W=160W)
9. Temperature Settings: 50-55-60℃
10. Control: Digital with Capacitive Touch Screen
11. Timer Settings: 6 options
12. Housing Material: ABS-Acrylonitrile butadiene styrene, 4.5mm thick wall housing

Packaging

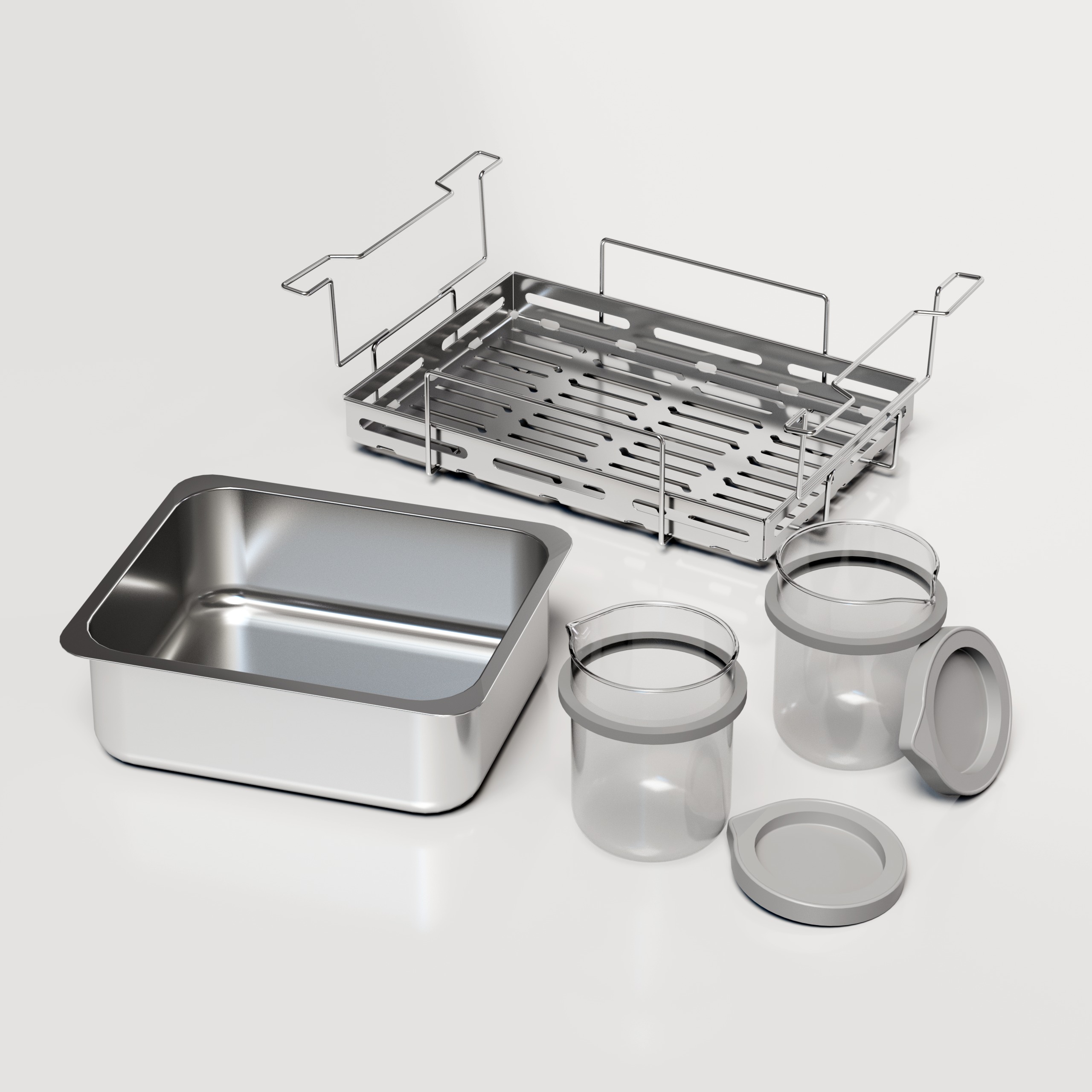

• 1 x Ultrasonic Cleaner Unit
• 1 x Top Cover
• 1 x Indirect Cleaning Tank
• 1 x Stainless Steel Rack and Tray
• 1 x Beaker and Beaker Holder
• 1 x Power Cord
• 1 x Hose
• 1 x User Manual

Directions for Use

OPERATION GUIDELINES
1.Remove the cover and put it on the cover holder vertically. Put items in the basket then put them in the cleaning tank. Add water to a level between MIN and MAX and above the area to be cleaned.
Caution: If the unit is turned on without water, ultrasonic energy will not be absorbed. This model also has high power. Once on for over 15 seconds, it may damage the unit or severely reduce the life of the unit.
10:00
2. Connect the power cord to an outlet and turn the switch on. LED display shows 10:00 This is the most common timer setting. If the timer needs to be adjusted, press Time button.
Select desired time setting by pressing Time button:
→10min-15min-20min-25min-30min →5min
Prolonged cleaning time may result in:
a. Loosening of the screws if used.
b. If items are plated and have existing cracks, the cracks may become more pronounced.
c. Coating with preexisting damages may experience more peeling.
3. Press On/Off button to start cleaning. During cleaning, buzzing sound can be heard from the cleaning tank, indicating that the cleaning is underway. Closing the lid will reduce the noise level.
The digital timer will count down to show the remaining cleaning time. When it displays 00:00, the cleaning is done.
To stop cleaning at any time, press On/Off button.
If The unit is equipped with overheat protector. If the unit has been running for too long, the red warning light will illuminate, indicating the unit is under overheat protection. The unit can not be operated until idling for about 15 to 20 minutes. The warning light turns off and the operation can be resumed.
4.Select one of the four cleaning methods recommended in the manual.
a. When the heater is needed, press TEMP button to select one of the 3 preset temperatures. Press Heater button, flashes, indicating the heater is turned on. When the water reaches the set temperature, dims, indicating the heater is turned off.
To ensure safety, the unit is designed with dual protections. The heater will be turned off automatically if it has been running for 50 minutes.
b. When debris “smoke” is no longer visible, cleaning is done. If additional cleaning is needed, reset the timer and repeat the steps above.
5.When cleaning is completed, switch off the power, open the lid and retrieve the basket and the items. Alternatively, raise and suspend the basket above water as illustrated in the Optional Accessories section to drain water in the manual.
Connect the hose to the drainage pipe as shown.
Open the drainage valve to drain the dirty water.
Clean and wipe the tank dry.
Close the drainage valve.

Additional Information

Country of Origin: PRC

Manufacturer:
Shenzhen Codyson Electrical Co., Ltd.
7th Entire Building, Taigu Yinde Industrial Park,
No. 9 Lanzhu West Road, Zhukeng Community,
Longtian Street, Pingshan District,
Shenzhen, Prc

Packer:
Shenzhen Codyson Electrical Co., Ltd.
7th Entire Building, Taigu Yinde Industrial Park,
No. 9 Lanzhu West Road, Zhukeng Community,
Longtian Street, Pingshan District,
Shenzhen, Prc

Imported & Marketed By:
VASA Denticity Limited
Khasra No. 15/1, Mustil No. 6, Village Dabodha,
Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be
