Codyson Stainless Steel Cleaning Beaker for Ultrasonic Cleaner (300ml)

Description

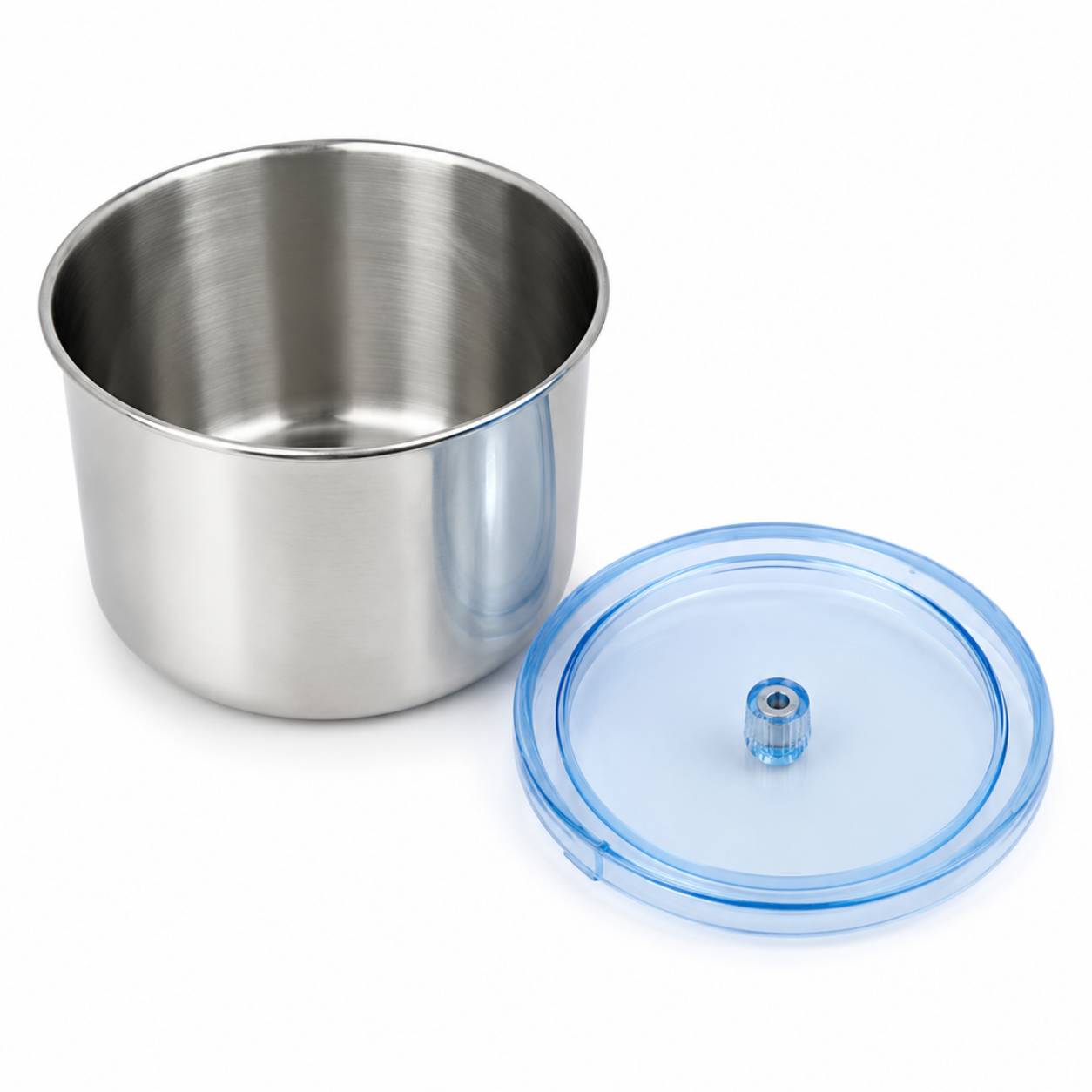

The Codyson Stainless Steel Cleaning Beaker is a compact 300 ml accessory designed for indirect ultrasonic cleaning of dental burs, endodontic files, small instruments, and precision parts. The stainless steel construction handles a wider range of cleaning solvents than the standard glass beaker option — including aggressive degreasers and acidic cleaners that would risk damaging the ultrasonic tank if used directly. The transparent blue plastic lid keeps solvent evaporation to a minimum and helps contain splashing during the ultrasonic cycle while still allowing visual inspection of the cleaning progress. Suspended within the machine’s water bath, ultrasonic waves transmit into the beaker and cavitate the isolated solvent — delivering focused cleaning power without cross-contamination between batches. Compatible with Codyson CD-7920, CD-4821, CD-4821 Pro, CS4, CS8, and CS6.2 ultrasonic cleaner models.

Key Features

• Purpose-built stainless steel accessory beaker for indirect ultrasonic cleaning applications
• 300 ml capacity suits small-batch cleaning of burs, files, and precision instruments
• Stainless steel construction resists a wider range of cleaning solvents than glass
• Transparent blue lid minimizes solvent evaporation and reduces splashing during cycle
• Central lid grip allows secure removal of the solvent-filled beaker
• Protects the ultrasonic tank from aggressive solvents that could damage stainless steel over time
• Prevents cross-contamination between different cleaning solvent batches
• Compatible with Codyson CD-7920, CD-4821, CD-4821 Pro, CS4, CS8, and CS6.2 models

Specifications

• Product Type: Ultrasonic Cleaner Accessory (Stainless Steel Beaker)
• Brand: Codyson
• Capacity: 300 ml
• Beaker Material: Stainless steel
• Lid Material: Transparent plastic
• Compatible Models: Codyson CD-7920, CD-4821, CD-4821 Pro, CS4, CS8, CS6.2
• Application: Indirect ultrasonic cleaning of dental instruments, burs, endodontic files, and precision parts
• Reusability: Fully reusable with proper care
• Sterilization: Beaker is autoclavable

Packaging

• 1 x Stainless Steel Beaker

Directions for Use

Setup

• Ensure the ultrasonic cleaner tank is filled with clean water to the recommended fill level
• Optionally add a small amount of surfactant or ultrasonic cleaning solution to the water bath to improve cavitation transmission through the beaker wall
• Do not fill the water bath above the maximum fill line

Beaker Preparation

• Fill the stainless steel beaker with the chosen cleaning solvent (isopropyl alcohol, degreaser, ultrasonic cleaning solution, enzymatic cleaner, or appropriate acidic cleaner)
• Fill to a level sufficient to fully submerge the items being cleaned
• Leave adequate headroom below the rim to prevent overflow during cavitation

Item Loading

• Place the dental burs, endodontic files, small instruments, or precision parts into the beaker
• Ensure items are fully submerged in the solvent
• Do not overload the beaker — items should be spaced for adequate solvent circulation

Beaker Positioning

• Place the transparent lid over the beaker to control evaporation and splashing
• Lower the loaded beaker carefully into the ultrasonic tank’s water bath
• Position it so the lower portion of the beaker is submerged in the water bath for effective ultrasonic wave transmission
• Ensure the beaker is stable and does not touch the tank sides or bottom during operation

Cleaning Cycle

• Set the ultrasonic cleaner to the desired timer setting per the cleaning requirement
• Start the ultrasonic cleaning cycle
• Ultrasonic waves transmit through the water bath, into the stainless steel wall, and cavitate the solvent inside the beaker
• Cleaning proceeds within the beaker without direct contact between the solvent and the ultrasonic tank

Post-Cleaning

• Turn off the ultrasonic cleaner at the end of the cycle
• Carefully remove the beaker using the central lid grip
• Remove the lid and inspect the cleaning result
• Rinse the cleaned items with distilled water or an appropriate rinse solution
• Dry the items thoroughly before storage or further use
• Empty the used solvent from the beaker per applicable disposal guidelines

Care and Maintenance

• Rinse the stainless steel beaker thoroughly with clean water after each use
• Inspect for any signs of pitting or corrosion — replace if compromised
• Clean the transparent lid with mild detergent and water; do not use abrasive scrubbers on the lid
• Store the beaker and lid in a clean dry location
• Empty and refill the ultrasonic tank water regularly per the machine’s maintenance schedule
