Medit T 710 3D Scanner

Description

The Medit T710 3D Scanner represents a advancement in dental scanning technology, offering a sleek and sophisticated solution that combines efficiency with style. Designed with a focus on ease of use and high-quality performance, this dental lab scanner is a simple yet powerful choice for professionals in the field.

One of its standout features is the remarkable speed it offers. With the T710, you can scan a full dental arch in just 8 seconds, making it the fastest dental lab scanner available. This swift scanning capability is made possible by a high-quality hardware setup and optimized software, working in tandem to boost your workflow and productivity.

The T710’s four 5.0MP cameras provide exceptional high-resolution scan data, ensuring every detail is captured with precision. There are no blind spots in your scans thanks to the strategic positioning of the cameras, eliminating the need for multiple scans and providing accurate and detailed results.

Accuracy is paramount in CAD/CAM dental work, and the T710 doesn’t disappoint. It adheres to strict international standards, including ISO 12836, ANSI/ADA standard No. 132, and VDI 2634, ensuring that your bridges, implants, and bars are well-designed and of the highest quality.

The scanner’s open system allows you the freedom to import and export files in STL format, giving you the flexibility to work with a variety of software options. Additionally, the auto-elevation feature simplifies the scanning process by automatically determining the correct scanning height.

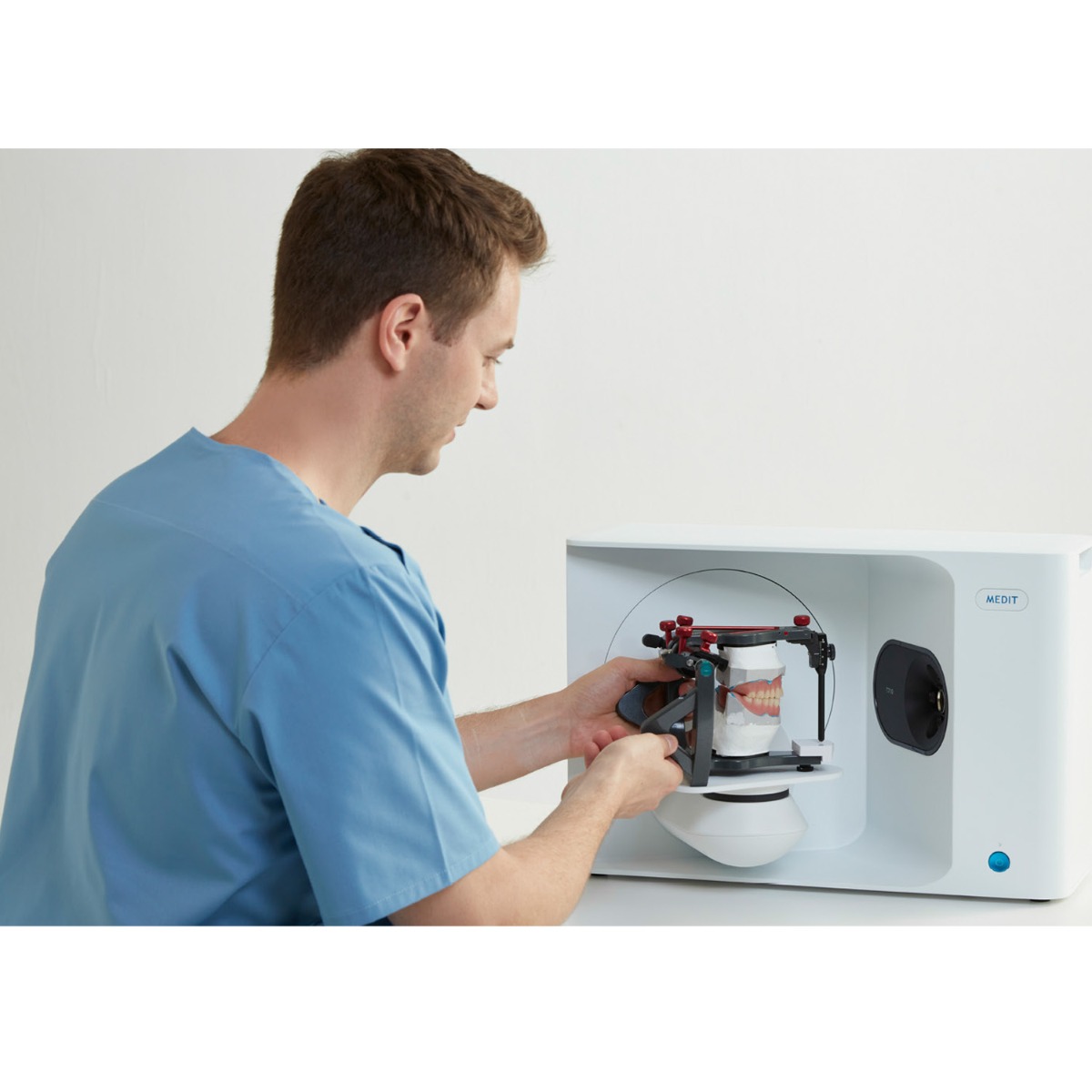

The Medit T710 scanner is designed to maximize work efficiency. It accommodates full-size articulators for reproducing precise occlusion orientations, and its flexible multi-die scanning capability allows you to scan full-arch or partial cases with multiple dies simultaneously.

Compact and stylish, the T710 offers a wider scan area, no blind spots, and the convenience of full-size articulator scanning. Its impressive specifications, including a mono 5.0MP x 4 resolution, 4-micron accuracy, and a fast scan speed of 8 seconds, make it a top choice for dental professionals seeking a comprehensive and efficient 3D scanning solution.

With the included Medit Scan for Labs software, you can further optimize your digital workflow, capture precise color texture scans, and enjoy features like auto-alignment, no downtime processing, customized scan sequences, HD mode for selected stages, and advanced capabilities for replicating dentures and working with implant bar scanning cases.

Key Features

• High-speed, 8-second full-arch scanning
• 4 high-resolution cameras, no blind spots
• 4-micron accuracy, adheres to ISO standards
• Open system for file import/export (STL)
• Auto-elevation for ease of use
• Full-size articulator scanning capability
• Medit Scan for Labs software included
• Advanced scanbody alignment for precision

Specifications

• Resolution of camera: Mono 5.0(MP) x 4
• Point Spacing: 0.040mm
• Scan area: 100mm x 73mm x 60mm
• Scan principle: Phase-shifiting optical triangulation
• Size: 505mm x 271mm x 340mm
• Weight: 15kg
• Light source: LED, 150 ANSI – lumens, Blue LED
• Connection: USB 3.0 B Type
• Power: AC 100-240V, 50-60 Hz
• Accuracy (ISO 12836): 4µm
• Full arch scan speed: 8 sec (7cut)
• Full arch impression scan speed: 45 sec

Packaging

• 1 X Medit T 710 3D Scanner

Directions for Use

• Set Up: Ensure that the scanner is properly set up on a stable surface, and all connections, including the USB cable, are secure. Power on the scanner and your computer.
• Calibration: Before you start scanning, it’s crucial to perform calibration.

Scanning Process:

• Position the Object: Place the dental model or object you want to scan in the scanner’s field of view. Make sure it’s stable and well-lit for optimal results.
• Software Initialization: Launch the scanner software on your computer. Follow the software’s user manual for guidance on starting a new scan session and selecting the appropriate settings.
• Scan Sequence: Determine the scanning sequence, whether it’s a full-arch scan, partial scan, or specific area scan. You can customize the sequence based on your needs.
• Auto-Elevation: If applicable, enable the auto-elevation feature to allow the scanner to automatically adjust the scanning height for the object.
• Begin Scanning: Initiate the scanning process through the software. Depending on the selected sequence, the scanner will start capturing data.
• Monitor Progress: Keep an eye on the scanning progress through the software interface. Ensure that the object is fully captured, and there are no blind spots in the scan.
• Review Data: After scanning is complete, review the captured data to ensure it meets your requirements. Zoom in on specific areas for a closer look if necessary.

Post-Processing:

• Save Data: Once you are satisfied with the scan results, save the data in the preferred file format (typically STL) and location on your computer.
• Data Export: If needed, you can export the scan data for use in various CAD/CAM software applications. The Medit T710’s open system allows for compatibility with different software.

Maintenance:

• Cleaning: After each scan, it’s essential to clean the scanner’s cameras and any surfaces that may have come into contact with the scanned object.

Shut Down:

• Power Off: Power down the scanner and your computer, ensuring all equipment is safely turned off.
