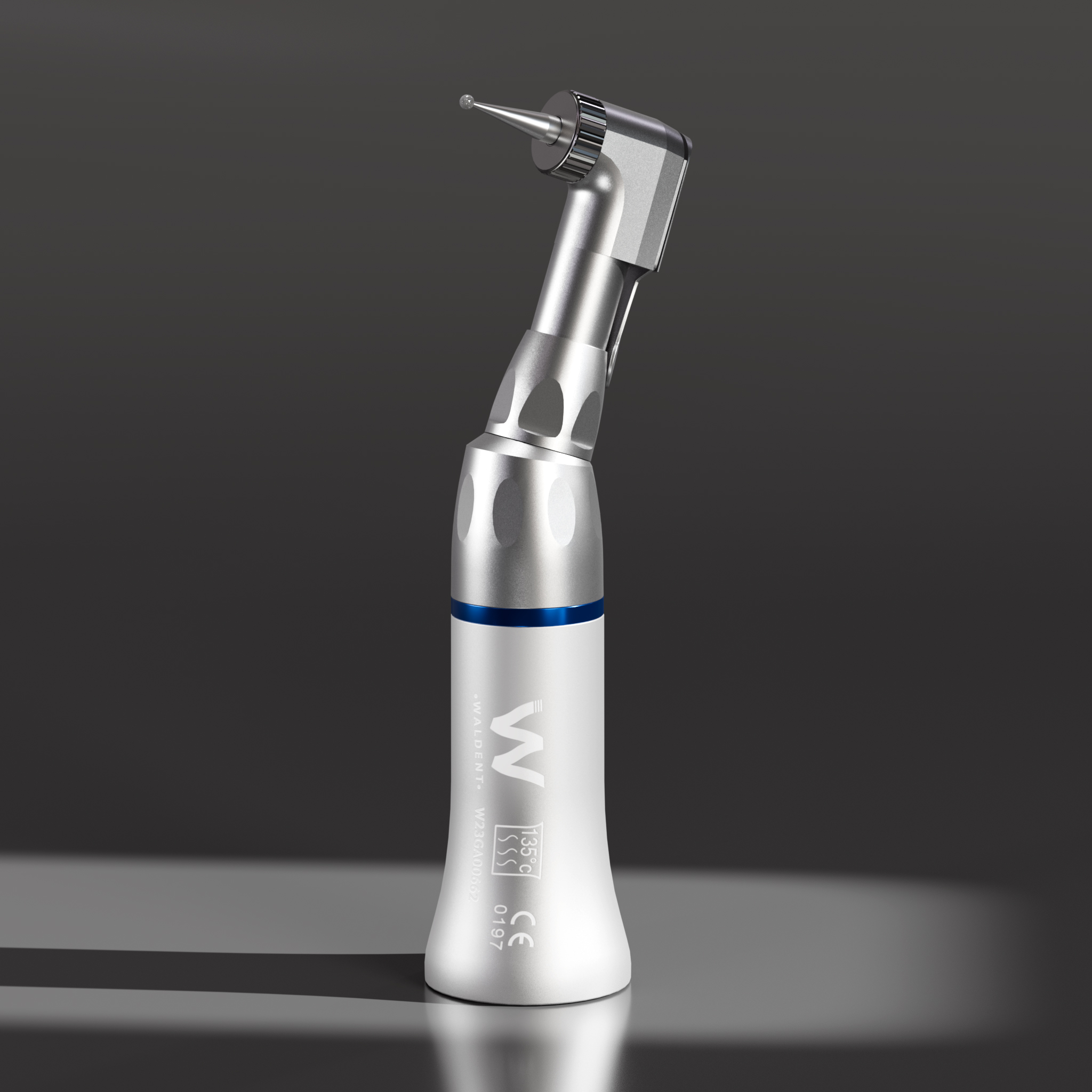

Waldent Contra-angle Handpiece Special Edition (W-141)

Description

Waldent Contra-angle Handpiece Special Edition is designed to facilitate more user-comfortability for the professional and a significant reduction in procedural times for their patients.

With the innovative technique, those hard to reach and hard to see places are more easily accessible, thus streamlining and shortening procedures, making it possible to achieve results with greater accuracy and precision.

INDICATION –

• For Cavity Preparation.
• In Post &Core.
• In Polishing.

ADVANTAGES –

• Suitable for any E-type headpiece accords with ISO standard.
• Simple technology with integrated design.
• High Durability.
• Functionally reliable.
• Aluminum body.
• Latch type.
• Suitable for both steam and chemical autoclave.
• Made of high quality.

Key Features

• Ergonomic design ensures comfortable handling and reduces hand fatigue during extended use.
• Lightweight construction improves maneuverability without compromising durability.
• Delivers optimal torque and control with a precise gear ratio for efficient performance.
• Precision engineering guarantees smooth, consistent rotation throughout procedures.
• Fully autoclavable to meet stringent hygiene and sterilization standards.
• Universally compatible with most dental units for seamless integration.
• Quiet operation minimizes noise, enhancing comfort for both patient and practitioner.
• Designed for easy cleaning and maintenance, prolonging the lifespan of the handpiece.

Specifications

Technical Specifications

• Rotating Speed: 600RPM-40,000RPM
• Noise: ≤ 65dB
• ChuckType:Swing latch type
• Bur Applicable: Ø2.35mm CA Burs
• Connections: E – type coupler
•  Material: Stainless Steel
• Autoclavable: Sterilized at max. 135°C
• Total Length: 8.5cm

PRECAUTIONS:

• Avoid contamination of the handpiece with Blood or other fluids
• Periodic oiling of the handpiece with good-quality Oils will yield better results.
• Kindly follow the manual for speed control & usage

Packaging

• 1 x Waldent Contra-angle Handpiece Special Edition
• 1 x Instruction Manual
• 1 x Wrench
• 1 x Oiling Mouthpiece

FOR HANDPIECE OIL – Click here to buy the Handpiece Oil

Directions for Use

Preparation:

• Ensure that the handpiece is clean and properly sterilized before each use.
• Check the compatibility of the handpiece with your E-type headpiece, ensuring it conforms to ISO standards.
• Select the appropriate bur size (Φ2.35mm) for the intended procedure.

Setup:

• Connect the handpiece to the dental unit, making sure it is securely attached to the E-type headpiece.

Autoclaving:

• If the handpiece needs to be sterilized, autoclave it at 135 degrees Celsius, following the recommended sterilization procedures. Ensure it is suitable for both steam and chemical autoclave methods.

Oiling:

• Periodically apply a recommended high-quality oil to the handpiece for smooth operation.

Speed Control:

• Follow the manual for proper speed control settings based on the specific procedure and bur being used.

Procedure:

• Hold the handpiece with a comfortable grip, taking advantage of its ergonomic design.

Rotation Speed:

• Be aware of the forward and reverse rotation speeds (1.5W/min forward, 1.4W/min reverse) as specified in the technical specifications.

Noise Level:

• Keep in mind the noise level (≤60dB) and take appropriate measures, such as using hearing protection if necessary.

Post-Procedure:

• After the procedure, disconnect the handpiece from the dental unit.
• Clean the handpiece thoroughly, following recommended cleaning procedures.

Maintenance:

• Regularly inspect the handpiece for any signs of wear or damage.
• Adhere to the recommended maintenance schedule outlined in the manual.

Precautions:

• Avoid contamination of the handpiece with blood or other fluids.
• Strictly follow the manual for speed control and usage instructions.
• Adhere to the recommended precautions to ensure the longevity and proper functioning of the handpiece.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
