Waldent Carpo RVG V-Sensor Size – 1
RVG Sensor For High-Resolution Intraoral Imaging
Enter pincode to verify fast clinic delivery & dispatch speed.
Key Highlights
Description

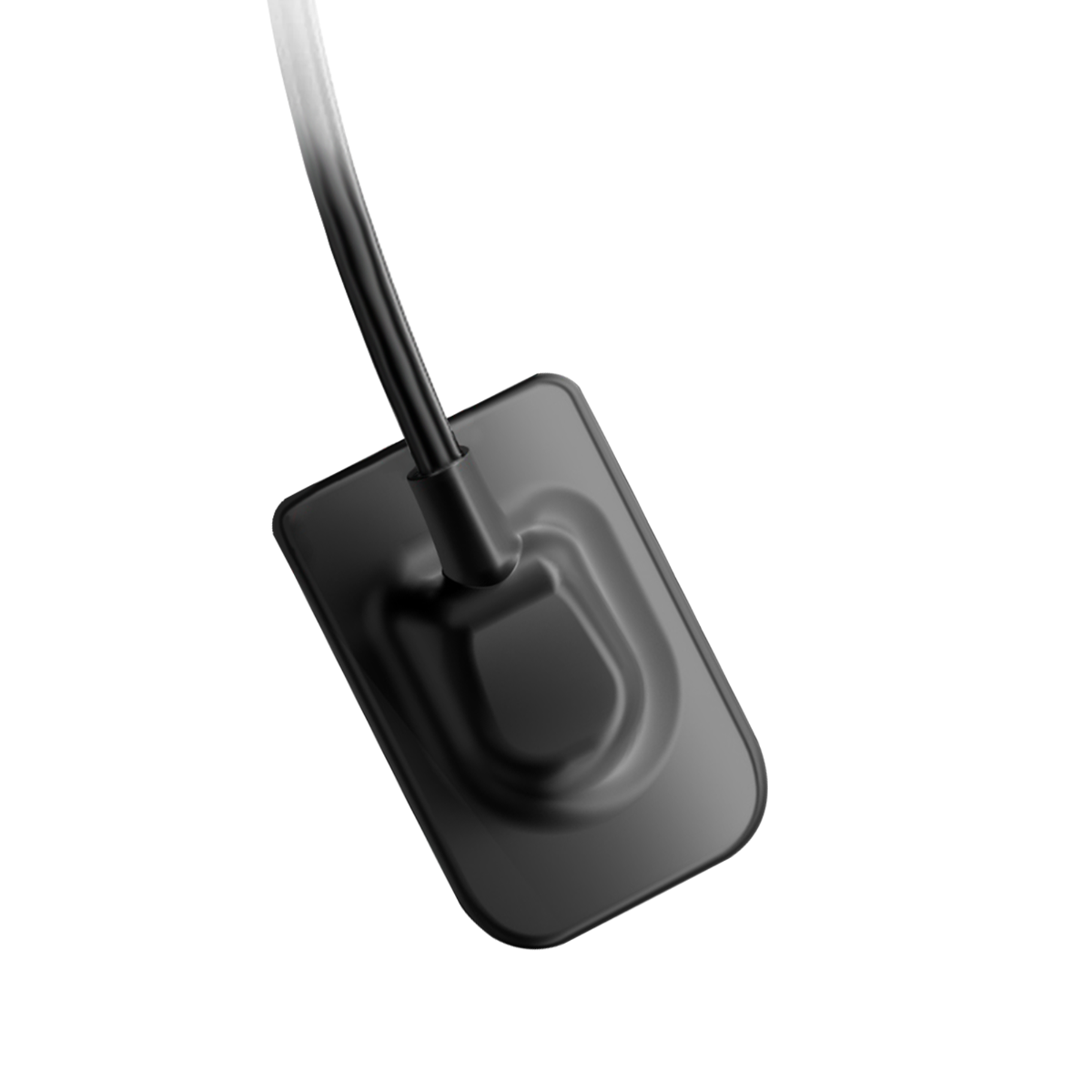

Waldent V-Sensor RVG is an ideal solution for intraoral imaging needs with an easy-to-use sensor that allows users to capture exceptional images quickly and easily. The sensor is packed in a shock-resistant case and silicon padding offers protection from falls.
The tissue is exposed to X-ray radiation and the refracted light is captured by the sensor. The image is processed instantly and converted into digital data using Analog-to-Digital converters. This digital data is sent to the computer where the doctor can view the scan instantly.
Key Features
- Dust-Proof & Water-Proof
- Highly Flexible Cable
- Smart & User-Friendly Software
- High theoretical resolution
- Based on CMOS
- Automatic exposure detection
- Durable and reliable with smooth casing
- 3s to complete image processing
- User friendly 4 step software
Specifications
- Detector Technology : APSCMOS
- Scintillator : CsI
- Pixel Matrix : 1000*1500
- Theoretical Resolution : 25lp/mm
- True Resolution : 20lp/mm
- Active Area (mm) : 20*30
- Mechanical Size (mm) : 25.4*36.8*4.4
- AD Conversion (bit) : 16
- Data Interface : USB2.0
- Protection : IP68
Click Here to Download Waldent Carpo RVG V-Sensor Software
Packaging
- 1 x V-Sensor RVG
- 1 x USB Flash Driver
- 1 x Silicon Protective Cover
- 1 x USB Extension Cable
- 1 x Sleeves 50pcs
- 1 x Sensor Mounting Bracket
- 1 x User Manual
Directions for Use
Connecting the Sensor to the Computer Terminal
- Connect the USB extension cable and the sensor, and then insert the other end of the USB extension cable into USB sockets on the computer.
- Check and ensure the connection between the computer and the sensor is reliable.
Software Installing
- Connect the USB flash driver to the computer and open it
- Double click .exe file, and then click INSTALL NOW
- Enter the software installation, wait for the software to pop up the driver installation dialog box
- The software pops up the driver installation dialog box, and click EXTRACT
- Click NEXT
- Accept the agreement to continue to the next step
- The software pops up a dialog box on the right, click FINISH , to indicate successful driver installation
- In the last step, the software installation successful dialog box pops up, you can click START or close it.
Software Update
- If there is an update of V-Sensor software, the computer terminal will pop up
the following dialog box, users could choose to update it or ignore it. No network configuration is required and only network connection. If the connection is interrupted during the upgrade process, please reconnect to the Internet to upgrade. The interruption will not cause user data loss. If user really cannot connect to the Internet or upgrade, please contact the supplier, who will contact the manufacturer to solve the problem.
Warranty & Service
Package Contents
Standard clinic packaging: 1 x Waldent Carpo RVG V-Sensor Size – 1 (Factory sealed box)
For detailed package breakdowns or bulk master-carton counts, contact our wholesale desk.
| Brand | Waldent |
|---|---|
| Category | Rvg Sensors |
| SKU Code | WALXX00991 |
| Availability | In Stock (Ready for Dispatch) |
| Product Type | Dental Clinic & Hospital Supply |
Clinical Instructions
- Inspect the packaging seal before clinical application.
- Prepare the operative field following standard clinical isolation protocol.
- Apply according to manufacturer directions and standard restorative technique.
- Dispose of single-use items in bio-medical waste according to healthcare regulations.
Warranty & Return Policy
- 100% Genuine Guarantee: All items are procured directly from verified brand manufacturers & authorized distributors.
- 10-Day Replacement Window: Eligible for return or replacement if received damaged, defective or with broken seal.
- Manufacturer Warranty: Standard warranty applicable according to brand terms.
DentaHaus Benefits
100% Genuine Products
Direct supply from verified dental manufacturers
Best Wholesale Price
Special tiered pricing for clinics & doctors
Fast Pan-India Delivery
Express shipping across all PIN codes
GST Invoice Available
Claim input tax credit on all purchases
Questions & Answers
Get answers from dental experts and verified practitioners
What are the main clinical advantages of Waldent Carpo RVG V-Sensor Size – 1?
Key clinical advantages include ergonomic handling, reliable dimensional stability, compatibility with all standard restorative dental materials, and excellent clinical comfort for patients.
Payment Options
Ratings & Reviews
Verified feedback from practicing dentists & clinics
The material and handling consistency is top-notch. Our clinic orders in bulk batches and we get predictable, durable patient results every single time.
Very convenient product for everyday restorative and clinical procedures. The wholesale 10+ discount saves us substantial clinic supply overhead.
Recommended Products
Still exploring? These dental supplies might fit your clinic needs
Waldent Carpo RVG V-Sensor
Woodpecker RTA i-Sensor RVG By Waldent Size – 2
Woodpecker RVG i Sensor Size – 1 (Compatible With Windows only)
Woodpecker RTA Intelli-Sensor RVG By Waldent Size – 1.5
Waldent Carpo RVG V-Sensor Size – 2
Waldent Dental Air Compressor Oil Free
Cartridge For Waldent Spectra Airotor -Standard (W-132c)
Waldent Sterilization Reels – 75mm
Waldent Premium Plus LED Airotor – Super torque (W-123)
Waldent Surgical 20° Handpiece 85mm (W-152)

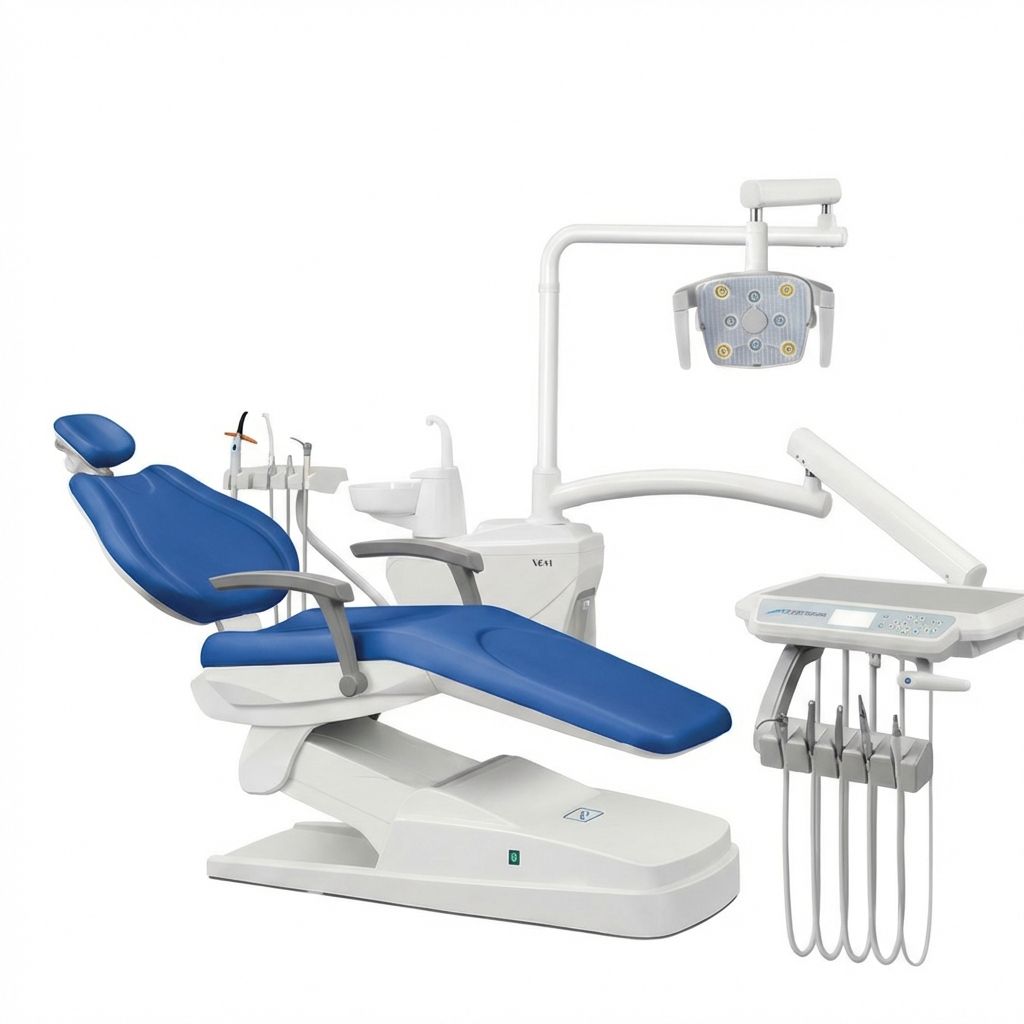

Waldent Orion Dental Chair – Blue
