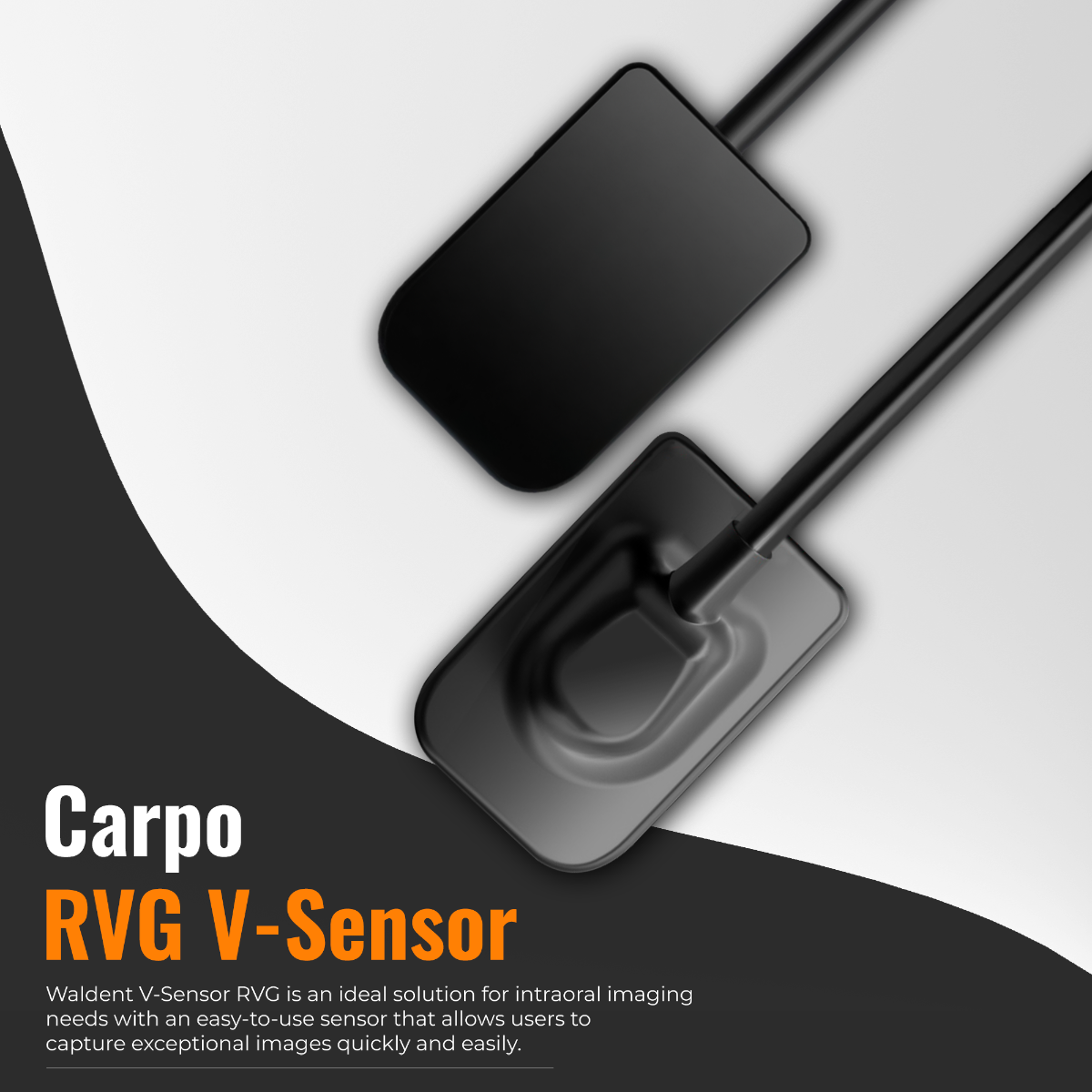

Waldent Carpo RVG V-Sensor
RVG Sensor For High-Resolution Intraoral Imaging
Enter pincode to verify fast clinic delivery & dispatch speed.
Key Highlights
Description
Waldent V-Sensor RVG is an ideal solution for intraoral imaging comes with an easy-to-use sensor that allows users to capture exceptional images quickly and easily. The sensor is packed in a shock-resistant case and silicon padding offers protection from falls. The tissue is exposed to X-ray radiation and the refracted light is captured by the sensor. The image is processed instantly and converted into digital data using Analog-to-Digital converters. This digital data is sent to the computer where the doctor can view the scan instantly.
Key Features
- Dust-Proof & Water-Proof
- Highly Flexible Cable
- Smart & User-Friendly Software
- High theoretical resolution
- Based on CMOS
- Automatic exposure detection
- Durable and reliable with smooth casing
- 3s to complete image processing
- User friendly 4 step software
Specifications
Hardware requirements
|
CPU |
≥ 1.0GHz |
|
Memory |
≥ 2GB |
|
Hard Disk |
≥ 64GB |
|
Display Resolution |
1024*768 or above |
|
USB ports |
USB2.0 ≥ 1 |
Operating system requirements
- Microsoft Windows 7/8/10 32-bit/64-bit
Technical Data
|
Model |
V-Sensor1/ V-Sensor2 |
|
Dimensions |
19.6cm x 14.4cm x 3.4cm±1cm(Package) |
|
Mechanical Size-1(mm) |
25.4*36.8*4.4 |
|
Mechanical Size-2(mm) |
32*45*4.4 |
|
Weight |
0.4kg ± 10% |
|
Effective imaging area |
V-Sensor1: 20x30mm2 |
|
V-Sensor2: 26x36mm2 |
|
|
Power |
1.5W Max |
|
Sensor technology |
CMOS CsI |
|
Pixel size |
20um |
|
Resolution |
Theoretical: 25 lp/mm |
|
Measured: ＞12 lp/mm |
|
|
X-ray energy range |
55~100kV |
|
Data interface |
USB2.0 |
|
Electrical safety class |
Depend on the computer terminal that the sensor is connected to. |
|
Protection against liquid / particular matter |
IP68 (Intraoral part of sensor) |
|
IPX8 (USB cables) |
|
|
Anti-defibrillation application part |
No |
|
AP/APG type equipment |
Non-AP/APG type equipment |
|
Operating conditions |
Use: in enclosed spaces Ambient temperature: 10°C ~ 35 °C Relative humidity: 20% ~ 90% Operating altitude < 3000m above sea level |
|
Transport and storage conditions |
Ambient temperature: -20 °C ~ 55 °C Relative humidity: 20% ~ 80%, no condensation Atmospheric pressure: 70kPa~106kPa |
Packaging
- 1 x V-Sensor RVG
- 1 x USB Flash Driver
- 1 x Sleeves 50pcs
- 1 x USB Extension Cable
- 1 x Sensor Mounting Bracket
- 1 x Silicone Protective Cover
- 1 x User Manual
Directions for Use
How to installation:
Connect the Sensor:
- Connect the sensor to a USB 2.0 port on your computer.
Ensure Proper Power Supply:
- Make sure the sensor is receiving power, and all connections are secure.
Check System Requirements:
- Ensure that your computer meets the specified hardware and operating system requirements.
Insert Installation Disc or Download Software:
- Insert the installation disc provided with the V-Sensor or download the software from the manufacturer’s website.
Follow Installation Instructions:
- Run the installer and follow the on-screen instructions to install the software.
Driver Installation:
- If prompted, install any required drivers for the V-Sensor.
How to Use:
Launch the Imaging Software:
- Open the installed imaging software on your computer.
Connect the V-Sensor:
- Ensure that the V-Sensor is properly connected to the USB port.
Position the Sensor:
- Place the sensor in the patient’s mouth according to the imaging requirements.
Prepare the Patient:
- Instruct the patient on proper positioning and cooperation during the imaging procedure.
Set Exposure Settings:
- Adjust exposure settings as needed for the specific imaging procedure.
Capture Image:
- Use the imaging software to trigger the X-ray exposure and capture the intraoral image.
Review Images:
- After capturing images, review them on the computer screen.
Analysis and Diagnosis:
- Use the software tools for analysis and diagnosis as needed.
Save Images:
- Save the captured images in the desired format and location.
Patient Records:
- Organize and manage patient records within the software.
Radiation Safety:
- Adhere to proper radiation safety practices during X-ray procedures.
Regular Maintenance:
- Perform regular maintenance checks on the V-Sensor and software.
User Training:
Ensure that users are adequately trained on the correct usage of the V-Sensor and software.
