Waldent Sealing Machine

Description

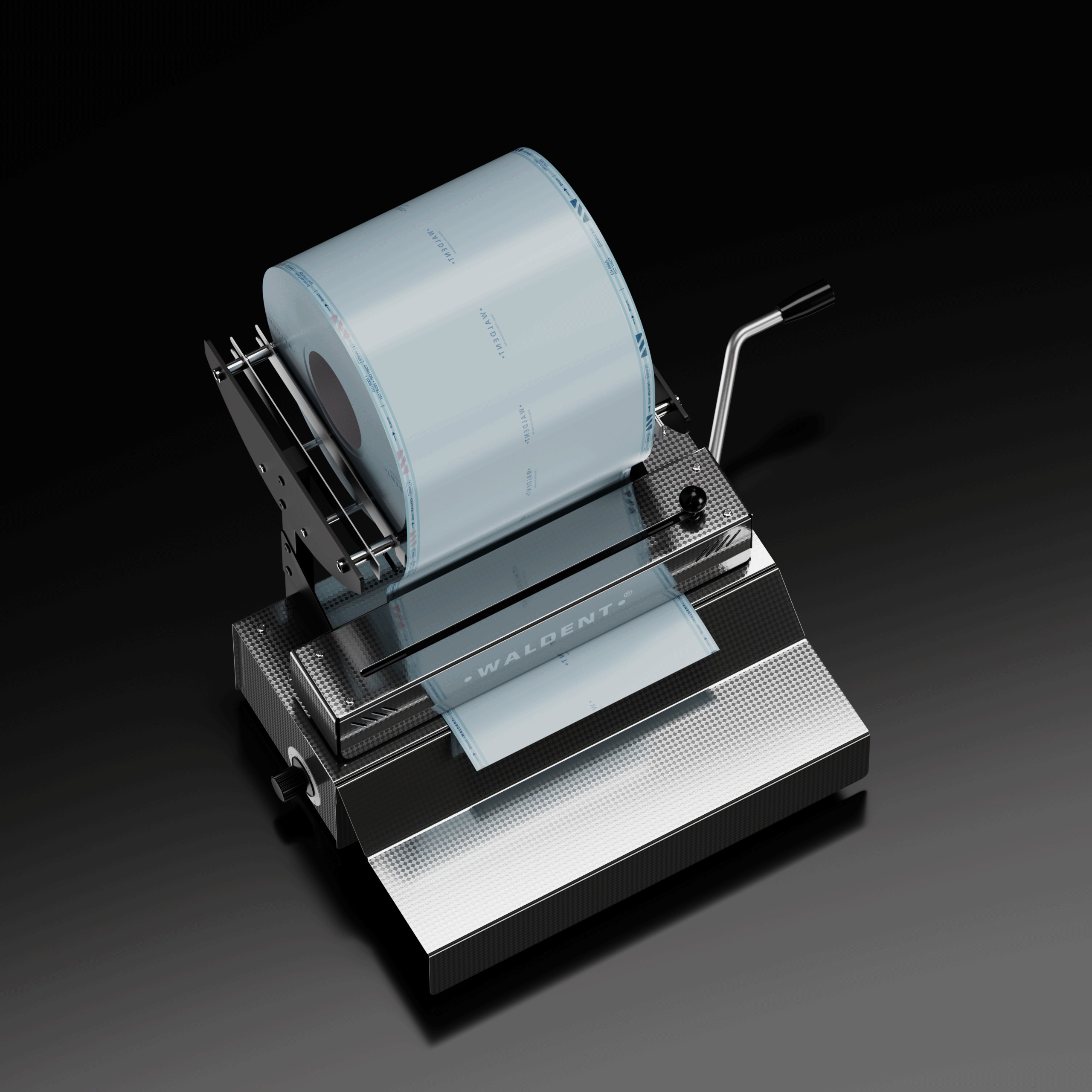

Waldent Sealing Machine

Sealing machines are used for sealing the sterilization pouches. This process keeps the instrument sealed after the sterilization & also helps in maintaining perfect sterility during their shelf life. Waldent sealing machine is a fast and reliable impulse sealer, fulfills all quality and safety standards. It has an effective heat control and high-quality performance. It comes with extra blades & are easy to replace.

It consists of medical paper and polypropylene layer, the change of font color indicates the finishing of the sterilizing process. Put the sterilized instruments in sealed package and save them for a long time.

The product has different width specifications of 5cm,7cm and 10cm to meet the seal requirements of instruments with different dimensions. Sterilization should be maintained from the cycle to the point they are used.

INDICATION :

• The sealing machine is used for sealing the sterilization pouches.

Key Features

• Made up of high quality stainless steel, ergonomically designed body.
• Have effective heat control and high-quality performance.
• Comes with safety insulation.
• It is easy to replace the blade.
• The external standard surgical knife blade.

Specifications

• Category: Sterilization
• Material: Stainless Steel
• Disposable/ Reusable: Reusable
• Model: Sealing Machine
• Sealing Temperature: 220°C ± 10°C
• Power: 500W
• Fuse: 3A
• Sealer Width: 250mm
• Indentation Width: 12mm
• Net Weight: 5.5kg

Packaging

• 1 x Mainframe
• 1 x Platform
• 1 x Rocker
• 1 x Cutter handle
• 1 x Power Cord
• 2 x Cutter Blades
• 2 x Racks
• 2 x Hexagonal Wrench (S = 4)
• 2 x Bushing
• 4 x Baffles
• 4 x Hexagonal Socket Screws (M5*10)
• 4 x Screws
• 4 x Cross Screws (M4*7)
• 4 x Cross Screws (M4*25)
• 18 x Propylene Covers

Directions for Use

Operation:

• When the indicator light goes off, the sealer is ready to use.
  Caution: The operating temperature of the sealing bar is very high, be careful to avoid directly twisting the bar.
• For optimal sealing temperature, and sealing quality, please select the knob position between settings 3 and 4. Transparent sterilization pouches must be placed between the pressure bar and sealing bar with the paper side facing downward. Turn, and keep pressing down the crank with pressure until the pouch is properly sealed.
  Attention: If the pouch or bag is not pressed firmly enough, the sealing quality may not be acceptable. The crank must be turned and kept under pressure for at least 4 seconds. Then, slit the pouch/bag and return the crank to its vertical position. The sealing operation of a pouch is complete. With power on, the sealing operation can be continued.

Cutting off pouches or bags:

• When the cutter handle is quickly pulled, the cutting blades slit off the pouch. If the cutter handle is pulled to slowly, the sterilization pouch will become creased and not be cut properly. Pulling the cutter back and forth can complete the cut-off of the pouches or bags.

Loading rolls of pouches:

• The roll can be replaced on the rack, and the end of the roll can be inserted from behind and between the pressure bar and sealing bar. With the paper side facing down, and making sure that the stripe remains in the guide rail, pull the shape forward until you have enough length to encapsulate the instruments for sterilization. Then, seal the pouch and cut it off to complete the operation.

Additional Information

• Manufactured By: CHINA BEST GROUP LIMITED, 118#, Xitianfan Village, Chengxi New Area, Yongkang 321300, China
• Packed By: CHINA BEST GROUP LIMITED, 118#, Xitianfan Village, Chengxi New Area, Yongkang 321300, China
• Marketed By: VASA DENTICITY LIMITED, Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India

Warranty & Service

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the products and the liability to replace any such product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
