74% OFF

Waldent

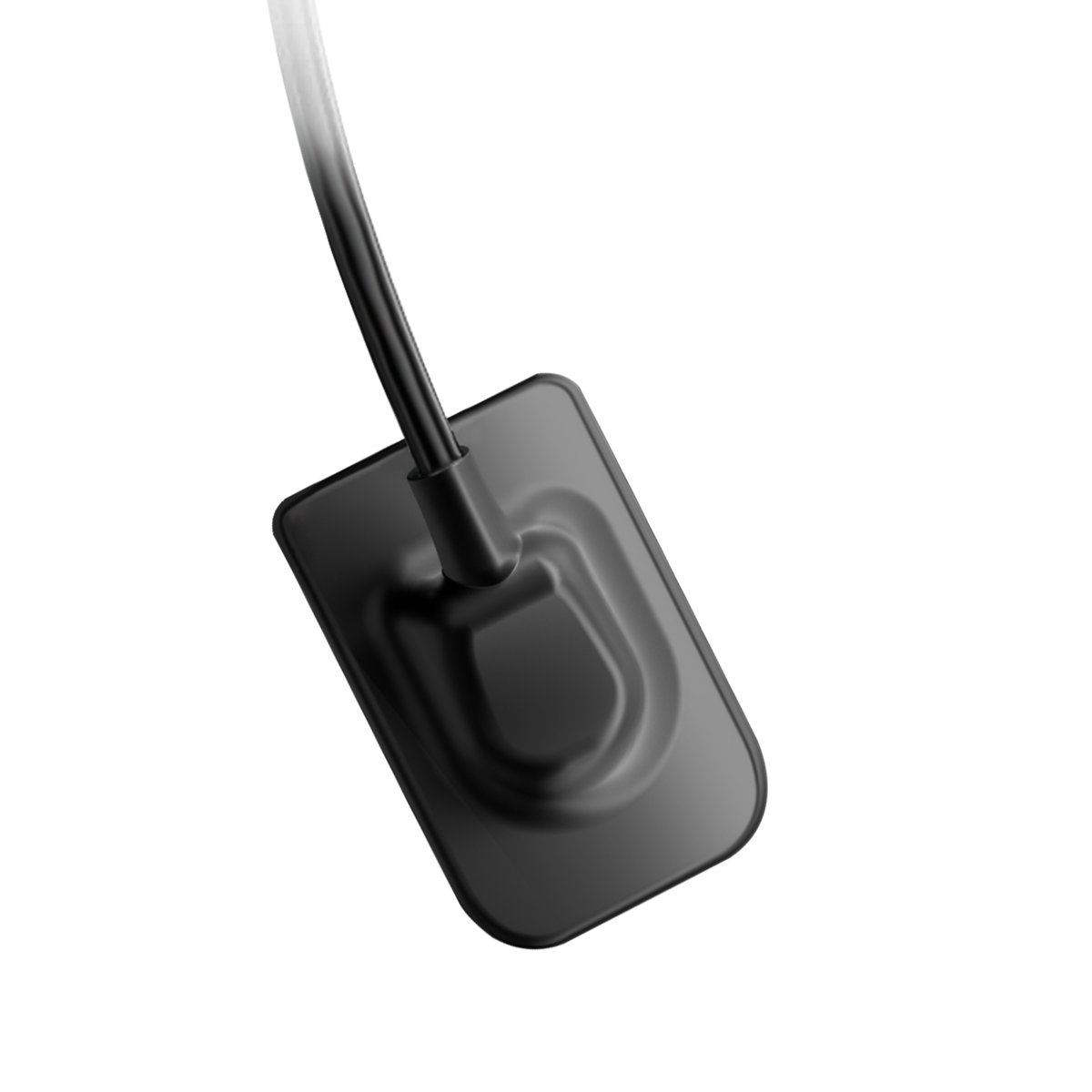

Waldent Carpo RVG V-Sensor Size – 2

RVG Sensor For High-Resolution Intraoral Imaging

4.6 ★ (22 Ratings)

SKU: WALXX01032

₹51,565.00 MRP ~~₹196,000.00~~ 74% OFF

Inclusive of all taxes Earn 516 DentoCoins

Wholesale / Bulk Pricing

Special tiered pricing for clinics & distributors

Buy 5+ units ₹50,533.70 / unit

Extra 2% OFF

Buy 10+ units ₹49,502.40 / unit

Extra 4% OFF

Arrives By: 8 Sep – 10 Sep

10-Days Returnable Hassle-free replacement

100% Genuine Direct authorized supply

Delivering to: -

Enter pincode to verify fast clinic delivery & dispatch speed.

Need 50+ units for clinic or college? Get instant institutional wholesale quotation

Key Highlights

RVG Sensor For High-Resolution Intraoral Imaging

Description

Waldent V-Sensor RVG is an ideal solution for intraoral imaging comes with an easy-to-use sensor that allows users to capture exceptional images quickly and easily. The sensor is packed in a shock-resistant case and silicon padding offers protection from falls.

The tissue is exposed to X-ray radiation and the refracted light is captured by the sensor. The image is processed instantly and converted into digital data using Analog-to-Digital converters. This digital data is sent to the computer where the doctor can view the scan instantly.

Key Features

Dust-Proof & Water-Proof
Highly Flexible Cable
Smart & User-Friendly Software
High theoretical resolution
Based on CMOS
Automatic exposure detection
Durable and reliable with smooth casing
3s to complete image processing
User friendly 4 step software

Specifications

Hardware requirements

CPU	≥ 1.0GHz
Memory	≥ 2GB
Hard Disk	≥ 64GB
Display Resolution	1024*768 or above
USB ports	USB2.0 ≥ 1

Operating system requirements

Microsoft Windows 7/8/10, 32-bit/64-bit

Technical Data

Model	V-Sensor1/ V-Sensor2
Dimensions	19.6cm x 14.4cm x 3.4cm±1cm(Package)
Mechanical Size-2(mm)	32454.4
Weight	0.4kg ± 10%
Effective imaging area	V-Sensor2: 26x36mm²
Power	1.5W Max
Sensor technology	CMOS CsI
Pixel size	20um
Resolution	Theoretical: 25 lp/mm
Resolution	Measured: ＞12 lp/mm
X-ray energy range	55~100kV
Data interface	USB2.0
Electrical safety class	Depend on the computer terminal that the sensor is connected to.
Protection against liquid / particular matter	IP68 (Intraoral part of sensor)
Protection against liquid / particular matter	IPX8 (USB cables)
Anti-defibrillation application part	No
AP/APG type equipment	Non-AP/APG type equipment
Operating conditions	Use: in enclosed spaces Ambient temperature: 10°C ~ 35 °C Relative humidity: 20% ~ 90% Operating altitude < 3000m above sea level
Transport and storage conditions	Ambient temperature: -20 °C ~ 55 °C Relative humidity: 20% ~ 80%, no condensation Atmospheric pressure: 70kPa~106kPa

Click Here to Download Waldent Carpo RVG V-Sensor Software

Packaging

1 x V-Sensor RVG
1 x USB Flash Driver
1 x Sleeves 50pcs
1 x USB Extension Cable
1 x Sensor Mounting Bracket
1 x Silicone Protective Cover
1 x User Manual

Directions for Use

Connecting the Sensor to the Computer Terminal

Connect the USB extension cable and the sensor, and then insert the other end of the USB extension cable into USB sockets on the computer.
Check and ensure the connection between the computer and the sensor is reliable.

Software Installing

Connect the USB flash driver to the computer and open it
Double click .exe file, and then click INSTALL NOW
Enter the software installation, wait for the software to pop up the driver installation dialog box
The software pops up the driver installation dialog box, and click EXTRACT
Click NEXT
Accept the agreement to continue to the next step
The software pops up a dialog box on the right, click FINISH , to indicate successful driver installation
In the last step, the software installation successful dialog box pops up, you can click START or close it.

Software Update

If there is an update of V-Sensor software, the computer terminal will pop up
the following dialog box, users could choose to update it or ignore it. No network configuration is required and only network connection. If the connection is interrupted during the upgrade process, please reconnect to the Internet to upgrade. The interruption will not cause user data loss. If user really cannot connect to the Internet or upgrade, please contact the supplier, who will contact the manufacturer to solve the problem.

Warranty & Service

Manufacturer/Importer warranty of 3 Years as applicable for this product
Warranty does not apply against any physical damage to the product
Service and Warranty are handled by the manufacturer/importer directly for this product
Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Package Contents

Standard clinic packaging: 1 x Waldent Carpo RVG V-Sensor Size – 2 (Factory sealed box)

For detailed package breakdowns or bulk master-carton counts, contact our wholesale desk.

Brand	Waldent
Category	Rvg Sensors
SKU Code	WALXX01032
Availability	In Stock (Ready for Dispatch)
Product Type	Dental Clinic & Hospital Supply

Clinical Instructions

Inspect the packaging seal before clinical application.
Prepare the operative field following standard clinical isolation protocol.
Apply according to manufacturer directions and standard restorative technique.
Dispose of single-use items in bio-medical waste according to healthcare regulations.

Warranty & Return Policy

100% Genuine Guarantee: All items are procured directly from verified brand manufacturers & authorized distributors.
10-Day Replacement Window: Eligible for return or replacement if received damaged, defective or with broken seal.
Manufacturer Warranty: Standard warranty applicable according to brand terms.
