Waldent Schuster Class B Autoclave 23L

Description

Waldent Schuster Class B Autoclave 23L, a sterilization solution engineered to deliver swift and secure instrument sterilization with utmost efficiency. With its generous 23-liter chamber capacity, this autoclave offers unparalleled versatility to accommodate diverse sterilization requirements.

Operating on a robust 134℃ universal Class B program, it guarantees effective sterilization within a remarkably short span of just 23 minutes, aligning seamlessly with European Class B standards. The microcomputer control system ensures precise temperature management within a tight tolerance of ±0.5℃, enhancing the reliability and consistency of the sterilization process. Navigating through operations is made effortless with the user-friendly touch-button control panel, simplifying the entire sterilization procedure. Moreover, the adjustable dry time feature allows users to tailor the drying process according to specific preferences, ensuring optimal results every time.

Safety remains paramount with the Waldent Schuster Class B Autoclave 23L, boasting a double-door locking mechanism fortified with both mechanical and electrical locks. This ensures secure sealing until pressure reaches zero, providing peace of mind throughout the sterilization cycle. Additionally, the autoclave is equipped with alarms to signal an empty clean water tank and a fully utilized water tank, further enhancing operational safety. Engineered for user convenience, this autoclave incorporates a multi-safety protection system alongside an air-conditioned heat removal mechanism to prevent overheating, prioritizing user safety at every step of the sterilization process.

Key Features

• 23-liter chamber capacity for versatile sterilization
• 134℃ universal Class B program efficiency
• Precise temperature control within ±0.5℃
• Touch-button control panel for easy operation
• Double-door locking system for secure sealing
• Alarms for water tank levels
• Multi-safety protection system for user safety

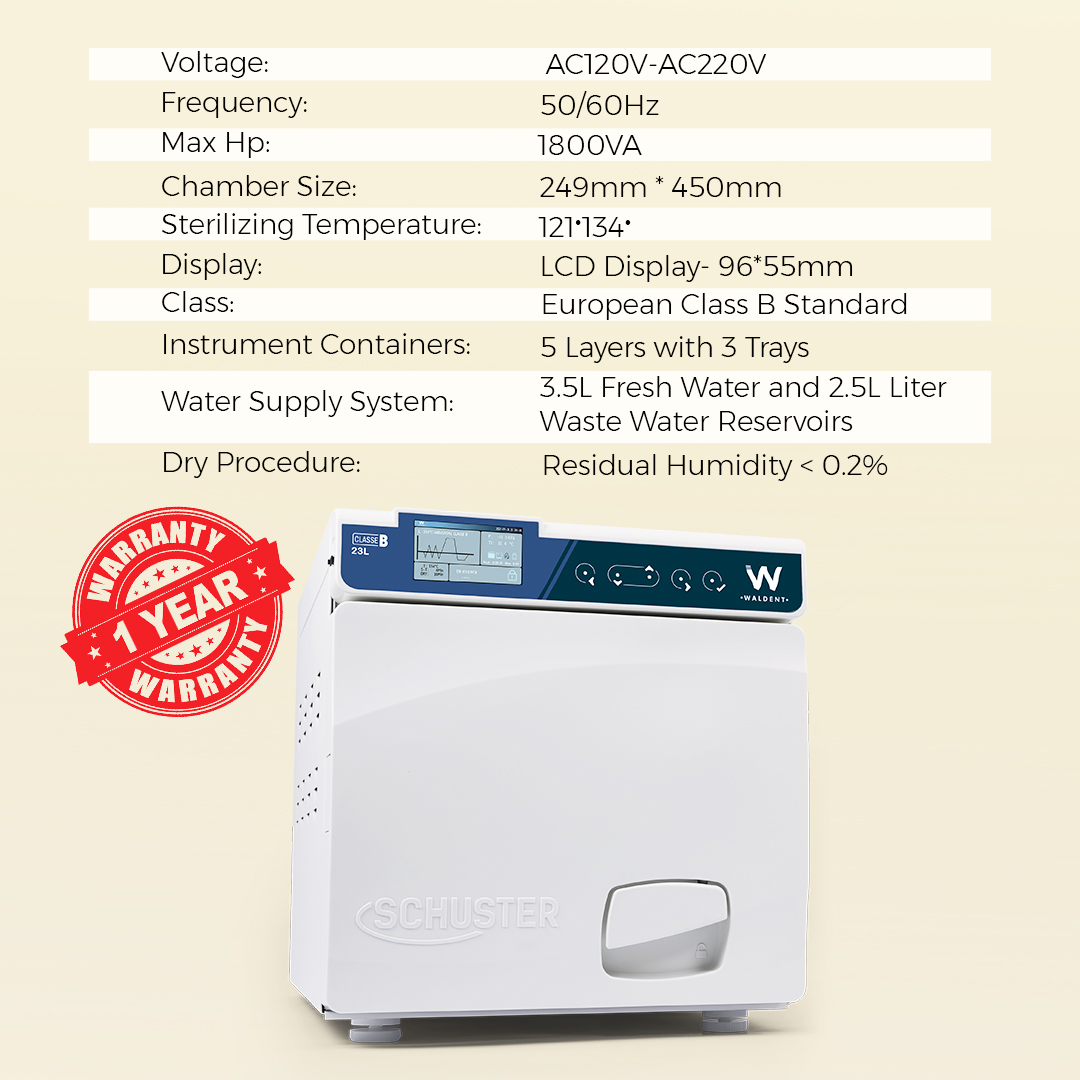

Specifications

• Voltage: AC120V-AC220V
• Frequency: 50/60Hz
• Max Hp: 1800VA
• Chamber Size: 249mm * 450mm
• Sterilizing Temperature: 121℃, 134℃
• Display: LCD Display- 96*55mm
• Class: European Class B Standard
• Instrument Containers: 5 Layers with 3 Trays
• Water Supply System: 3.5L Fresh Water and 2.5L Liter Waste Water Reservoirs
• Dry Procedure: Residual Humidity < 0.2%
• Sterilization Programs – There are total of 8 programs (6 sterilization programs and 2 testing programs). Six sterilization programs are – 134℃ Universal Class B (Applicable：Wrapped instruments), 134℃ Fast Class S (Applicable：Unwrapped instruments), 134℃ Prion Class B (Applicable：Stubborn virus), 121℃ Universal Class B (Applicable：Wrapped instruments), 121℃ Fast Class S (Applicable：Unwrapped instruments), Custom Sterilization Program. Two Testing programs are B&D -Helix Test and Leak and Vacuum test.

Packaging

• 1 x Main Unit of Autoclave
• 1 x Power Cord
• 1 x Water Ejection Tubing
• 1 x Internal Sterilization Basket
• 3 x Sterilization Trays
• 1 x USB drive
• 2 x Printer paper
• 1 x Gasket
• 1 x Instruction Manual

Directions for Use

To use the Waldent Schuster Class B Autoclave 23L effectively, follow these step-by-step directions:

Preparation:

• Ensure the autoclave is placed on a stable surface with proper ventilation.
• Check the water levels in both the clean water tank and waste water reservoir, ensuring they are adequately filled.
• Ensure all instruments to be sterilized are properly cleaned and packaged according to standard protocols.

Power On:

• Plug the autoclave into a suitable power outlet with the provided voltage and frequency (AC220V, 50Hz).
• Switch on the power using the designated power button.

Loading:

• Open the autoclave chamber doors using the handles.
• Load the instruments into the sterilization chamber, making sure not to overcrowd or obstruct the trays.
• Close the chamber doors securely.

Settings:

• Use the touch-button control panel to select the desired sterilization program (e.g., 121℃ or 134℃).
• Adjust any additional parameters such as dry time according to preference.

Initiation:

• Once settings are configured, initiate the sterilization cycle by pressing the start button.
• The autoclave will begin the sterilization process, and the LCD display will provide real-time status updates.

Monitoring:

• Throughout the sterilization cycle, monitor the autoclave for any alarms or warnings.
• Address any issues promptly, such as low water levels or system malfunctions.

Completion:

• Once the sterilization cycle is complete, the autoclave will emit a signal indicating the cycle has finished.
• Carefully open the chamber doors using caution as steam may be released.
• Allow the instruments to cool before handling.

Unloading:

• Remove sterilized instruments from the chamber using appropriate handling procedures.
• Store or use sterilized instruments as needed.

Shutdown:

• After use, power off the autoclave using the designated power button.
• Clean the exterior of the autoclave with a damp cloth, ensuring it is free from debris.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
