Waldent Intraoral Scanner Trolley with CPU Mount (TJ-Q08-2)

Description

Waldent Intraoral Scanner Trolley with CPU Mount (TJ-Q08-2)  is a purpose-built mobile workstation designed for intraoral cameras, scanners, and their peripherals. It features a detachable display-mounted stand with a VESA bracket for securing a monitor at eye level, and a top panel fitted with an integrated hand grip for easy manoeuvring. A dedicated mouth scan handle holder keeps the scanner tip secure and within reach, while it accommodates most popular intraoral scanning systems. The lower shelf offers space for a laptop, capture unit, or accessories, and a built-in multi-socket power strip keeps devices powered without trailing cables. Four universal wheels with locking pedals provide smooth mobility and stable positioning across operatories. The clean white powder-coated finish resists corrosion and wipes down easily for infection control. A practical, ergonomic solution that streamlines digital imaging workflows and keeps chairside equipment organised and mobile.

Key Features

• Detachable display-mounted stand with VESA bracket for monitor fitting
• Top panel with integrated hand grip for easy movement
• Dedicated mouth scan handle holder suitable for most scanners
• Built-in multi-socket power strip for cable-free operation
• Four universal wheels with locking pedals for stability
• Durable white powder-coated finish for easy cleaning

Specifications

• Model: TJ-Q08-2
• Material: Powder-coated steel frame with white finish
• Overall Height: 1210 mm
• Top Panel Size: 460 mm (W) x 450 mm (D)
• Lower Shelf Size: 445 mm (W) x 285 mm (D)
• Base Span: 480 mm (W) x 500 mm (D)
• Shelf Gap: 220 mm between top panel and lower shelf
• Display Mount: Adjustable VESA bracket, top-mounted
• Accessory: Side-mounted mouth scan handle holder
• Mobility: Four universal castors, front two with locking pedals

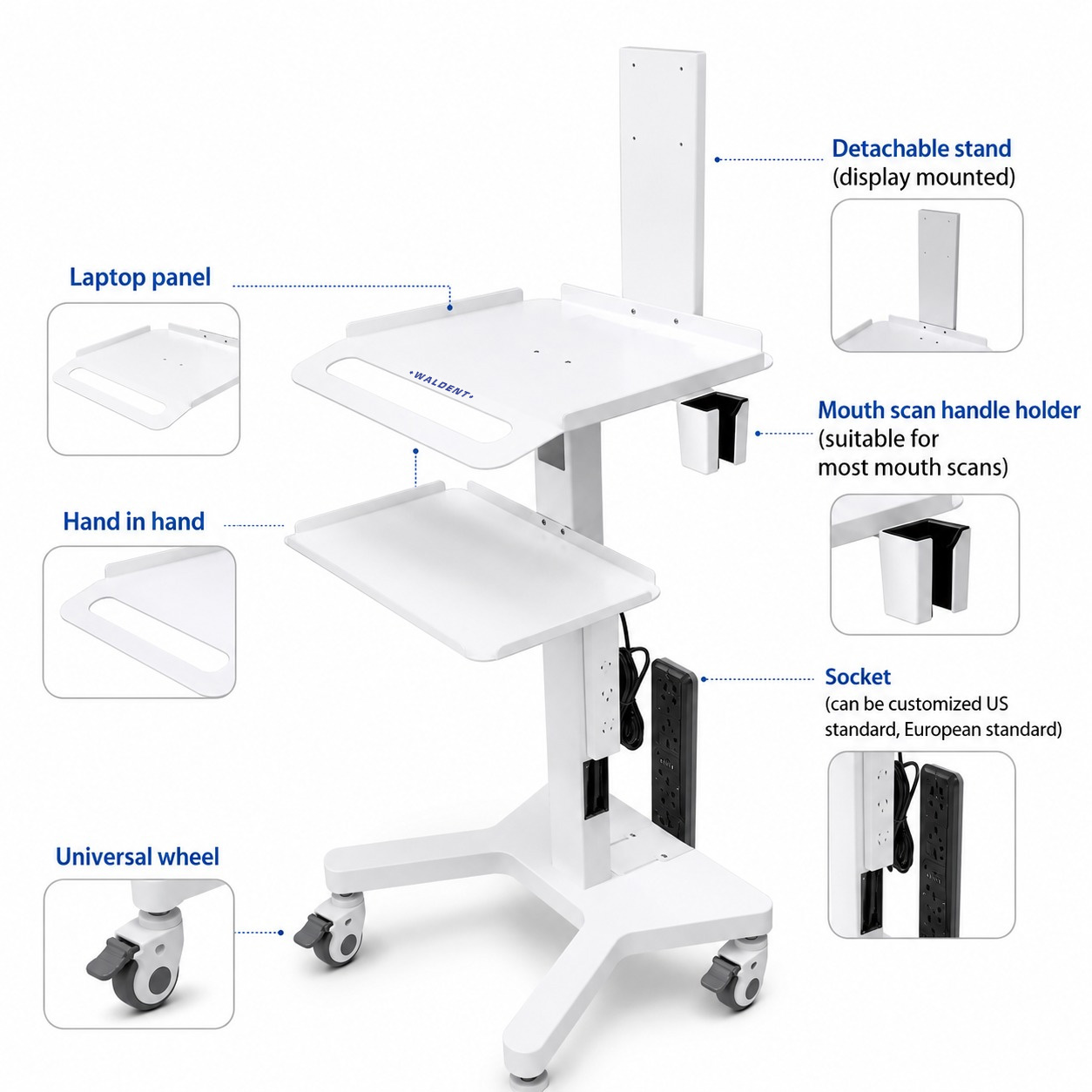

Packaging

• 1 x Detachable Stand (Display Mounted)
• 1 x Laptop Panel
• 1 x Hand-in-Hand Grip
• 1 x Mouth Scan Handle Holder
• 1 x Socket (US/European standard)
• 4 x Universal Wheels

Directions for Use

Step 1 – Fit the Castors

• Insert the four universal wheels into the sockets on the cross-shaped base
• Position the two locking-pedal castors at the front

Step 2 – Attach the Column

• Fix the vertical column onto the centre of the base
• Tighten the bolts fully so the column stands straight and stable

Step 3 – Mount the Lower Shelf

• Attach the lower shelf to the column at the marked lower position
• Secure with screws from underneath and check it sits level

Step 4 – Fix the Top Handle Panel

• Mount the top handle tray above the lower shelf
• Align the screw holes and keep the cut-out grip on the operating side

Step 5 – Install the VESA Display Bracket

• Fix the VESA bracket to the top of the vertical column
• Adjust to the required height slot before final tightening

Step 6 – Attach Accessories

• Fit the mouth scan handle holder onto the side of the top panel
• Clip the power strip to the column and route the cable neatly along the frame

Final Check

• Engage the wheel locks and confirm all screws are tight
• Test the trolley for stability and wipe down all surfaces before clinical use

Additional Information

Foshan Tuojin Medical Technology Co., Ltd.
4th Floor, B Elevator, Building A13, New Light Source, Luocun, Shishan Town, Nanhai District, Foshan City, Guangdong Province, China

Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana“ 122506, India
Phone: +91 72899 9945

Warranty & Service

• Warranty is not applicable for this product.
