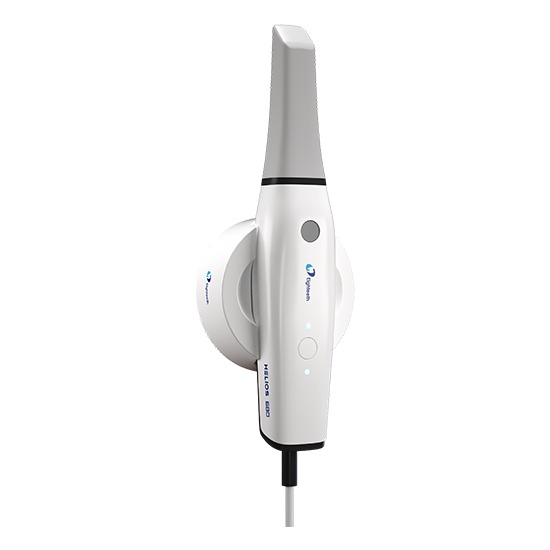

Eighteeth Helios 680 Intraoral Scanner

Description

The Eighteeth Helios 680 Intraoral Scanner is a chairside digital impression scanner that uses DLP structured light to capture 3D models of teeth, gums, and bite registration without conventional impression trays. It is built for routine restorative, implant, orthodontic, and aligner workflows in general practice.

Full-arch accuracy on the Helios 680 is rated at ≤20 µm with capture running at 30 FPS, which gives smooth scans during continuous motion. The unit produces true 24-bit full-color 3D images and offers a transparent scanning mode alongside the standard mode for cases that benefit from a different visual rendering. The scanner is calibration-free out of the box, so you plug it in over USB and start scanning without a separate calibration object or warm-up routine.

On-device AI handles soft-tissue filtering, noise reduction, occlusal contact analysis, and automatic margin line detection, which cuts down the manual cleanup time between capture and case export. Files export in open STL, OBJ, and PLY formats, and the Helios software is compatible with exocad, 3Shape, and Dental Wings CAD/CAM ecosystems. The scanner tip is autoclavable for up to 100 sterilization cycles, and software updates are pushed to the unit automatically through the cloud.

On Dentalkart, the Eighteeth Helios 680 intraoral scanner is available at the best price in India at ₹2,40,000, with COD and fast pan-India delivery on 100% genuine, warranty-backed equipment. Compare options in our intraoral scanner range, or browse more Eighteeth products.

Frequently Asked Questions

What is the scanning accuracy of the Eighteeth Helios 680?

The Eighteeth Helios 680 captures intraoral scans at ≤20 µm full-arch accuracy using DLP structured light technology, with scanning at 30 FPS in true 24-bit color. That spec range is suitable for restorative, implant, and orthodontic case planning, including full-arch and quadrant scans for crown, bridge, and aligner cases.

What are the system requirements for the Helios 680?

The Helios 680 software runs on a Windows 10 or 11 workstation with an Intel Core i5 12th-generation processor, 16 GB DDR4 RAM, 256 GB SSD, and an NVIDIA GeForce GTX 1650 or better graphics card. The scanner connects to the workstation over USB and is calibration-free, so no separate calibration block is required.

Is the Eighteeth Helios 680 compatible with exocad and 3Shape?

Yes, the Eighteeth Helios 680 exports scans in open STL, OBJ, and PLY formats, and the workflow is compatible with exocad, 3Shape, and Dental Wings CAD/CAM platforms. This makes it practical for clinics that already work with in-house labs or external design partners on those systems, without proprietary file conversion.

How many times can the Helios 680 scanner tip be sterilized?

The Helios 680 scanner tip is autoclavable for up to 100 steam-sterilization cycles, which supports chairside infection-control protocols between patients. Tracking sterilization cycles per tip is a useful habit so optical clarity stays consistent across the lifecycle of each tip, and tips are replaced before performance drifts.

Key Features

• DLP structured light technology with ≤20 μm full-arch accuracy
• 30 FPS scanning for fast, smooth full-arch captures
• True 24-bit full-color 3D imaging
• Calibration-free — plug and scan instantly
• Standard and transparent scanning modes
• AI soft tissue filtering, noise reduction, and occlusal analysis
• Automatic margin line detection
• Autoclavable tip — up to 100 sterilization cycles
• Open format export — STL, OBJ, PLY
• Compatible with exocad, 3Shape, and Dental Wings
• Cloud-based automatic software upgrades
• USB connectivity

Specifications

• Technology: DLP Structured Light
• Scan Accuracy (Full Arch): ≤20 μm
• Frame Rate: 30 FPS
• Color Capture: True Full-Color 3D (24-bit)
• Scanning Modes: Standard & Transparent
• Scanner Size: 245 × 47 × 36 mm
• Scanner Head Size: 18.6 × 16.7 mm (S) / 22 × 18 mm (L)
• Weight: 245 g
• Depth of Field: 16 mm
• System Calibration: Calibration-Free
• Connection Interface: USB
• Data Output Formats: STL, OBJ, PLY
• Software Compatibility: Exocad, 3Shape, Dental Wings
• Disinfection: Autoclavable tip — up to 100 cycles
• Post-Processing Time: 1–2 minutes
• Display Output: Local Send / Cloud Send
• AI Compatibility: Yes (NVIDIA GPU)
• Cloud Platform: AWS

Recommended System Requirements

• Processor: Intel Core i7-13700 13th Gen (or equivalent)
• Memory: 32GB DDR4, 2666 MHz (or better)
• Hard Drive: 1TB SSD (or more)
• Graphics Card: NVIDIA GeForce RTX 3060 (6GB VRAM)
• Display: 15.6″ FHD 1920×1080 (or more)
• USB Interface: USB 3.0 or higher — Voltage 4.9V–5.1V, Current >1A
• Operating System: Windows 10/11

Packaging

• 1 x Helios 680 Scanner
• 1 x Holder of Scanner
• 3 x Reusable Scanning Tip, Size L
• 1 x Reusable Scanning Tip, Size S
• 1 x USB Flash Drive (Software Installer)

Directions for Use

How to Install – Eighteeth Helios 680 Intraoral Scanner:-

System Check

• Ensure the laptop/PC meets minimum recommended system requirements
• Verify Windows 10/11 is installed and updated
• Confirm NVIDIA GeForce RTX 3060 (6GB VRAM) or equivalent GPU is present

Software Installation

• Run the installer and follow on-screen instructions
• Allow NVIDIA GPU drivers to install if prompted
• Restart the system after installation completes

Hardware Connection

• Plug the Helios 680 scanner into a USB 3.0 or higher port
• Ensure USB voltage is within 4.9V–5.1V and current >1A
• Wait for the system to automatically detect and configure the scanner
• Driver installation will complete automatically on first connection

Software Activation

• Launch the Helios software
• Log in or register your device using the provided credentials
• Connect to AWS cloud for automatic software activation and updates
• Scanner is ready to use once activation is confirmed

First Use

• Attach scanning tip onto scanner head
• No manual calibration needed — scanner auto-calibrates on launch
• Run a test scan to verify connection and image quality before clinical use

How to Use – Eighteeth Helios 680 Intraoral Scanner:-

Step 1 – Launch Software

• Open Helios software on the connected PC
• Log in and create or select a patient case

Step 2 – Attach Scanning Tip

• Select appropriate tip size — S (18.6 × 16.7 mm) or L (22 × 18 mm)
• Attach firmly onto the scanner head
• No powder or heating required

Step 3 – Select Scanning Mode

• Choose Standard mode for regular teeth and soft tissue
• Choose Transparent mode for enamel or translucent structures

Step 4 – Begin Scanning

• Insert scanner tip gently into the patient’s mouth
• Start from the posterior occlusal surface and move anteriorly
• Maintain smooth, steady sweeping motion
• Keep within 16 mm depth of field for best accuracy

Step 5 – Complete the Arch

• Scan upper arch, lower arch, and buccal bite registration
• Software stitches data automatically in real time
• Rescan any missing areas immediately if flagged

Step 6 – AI Processing

• Apply AI soft tissue filtering and noise reduction
• Run occlusal analysis and automatic margin line detection as needed
• Post-processing completes within 1–2 minutes

Step 7 – Export & Send

• Review final 3D model for completeness
• Export in STL, OBJ, or PLY format
• Send to lab via Local Send or Cloud Send

Step 8 – After Use

• Remove and autoclave the scanning tip
• Wipe scanner body with compatible disinfectant
• Store in protective case

Additional Information

• Country of Origin: PRC
• Manufacturer: Eighteeth

Warranty & Service

• Manufacturer/Importer warranty of 2 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
