Upcera FLNTScan R2 Intraoral Scanner

Description

The Upcera FLNTScan R2 Intraoral Scanner is an AI-assisted digital impression scanner built for general practice, crown and bridge, implant, edentulous, and orthodontic workflows. It captures full-arch 3D scans without putty trays and runs an on-device AI pipeline that handles soft-tissue filtering, margin refinement, and post-scan analysis as you scan.

The handpiece weighs 165 g, which keeps single-hand scanning comfortable across long appointments and full-mouth scans. Full-arch accuracy is rated at ≤20 µm and single-crown accuracy at ≤10 µm, with a complete full-arch scan finishing in under 60 seconds. The scanner uses an ultra-large field of view of 16 × 14 mm with a 25 mm depth of field, which reduces the number of passes needed to capture the arch and helps with deep prep margins or limited mouth-opening cases.

The FLNTScan R2 includes a dedicated Edentulous Arch module for soft-tissue capture in denture and implant planning, Scan Body Smart Matching that snaps an implant scan body into position in around one second, Hybrid Impression Scanning that merges intraoral data with silicone impression data for complex cases, and Metal Scanning Optimization for cleaner capture on alloy crowns and titanium abutments. Post-scan, the software auto-generates an Oral Health Report that flags caries, plaque, and calculus, and an orthodontic simulation module produces an auto-aligned tooth-movement preview for case discussion with the patient. Scan files export as STL, PLY (true colour), and OBJ, and QR-based cloud case sharing lets you push a 3D model to a lab or patient phone without manual file transfer. The unit is rated for 30,000+ hours of clinical use.

On Dentalkart, the Upcera FLNTScan R2 intraoral scanner is available at the best price in India at ₹2,85,000, with COD and pan-India delivery on 100% genuine, warranty-backed equipment. Compare more options in our intraoral scanner range, or browse more Upcera products.

Key Features

• AI-Powered Speed — Full-arch scan completed in under 60 seconds
• High Accuracy — ≤10µm single crown, ≤20µm full arch
• Ultra-Large Field of View — 16×14mm scanning scope with 25mm depth of field
• Lightweight Ergonomic Design — 165g handpiece for fatigue-free extended scanning
• Scan Body Smart Matching — 1-second implant scan body positioning for accurate implant workflows
• Edentulous Arch Scanning — Enhanced soft tissue capture for denture and implant planning
• Metal Scanning Optimization — Reduced reflection noise for scanning on metallic surfaces
• Hybrid Impression Scanning — Combines intraoral and silicone impression data for complex cases
• High-Resolution Refinement — Improved interproximal margin and gingival detail capture
• Oral Health Report — Auto-detects caries, plaque, and calculus post-scan
• Orthodontic Simulation — Auto-alignment tools for treatment planning and patient communication
• Cloud Case Sharing — QR-based instant 3D model sharing across devices and with patients
• True-Color 3D Output — Exports in STL, PLY (True Color), and OBJ formats
• 30,000+ Hour Lifespan — Built for long-term, high-volume clinical use

Specifications

• Model: FLNTScan R2
• Handpiece Size: 243 × 40 × 32mm
• Handpiece Weight: 165g (without cable)
• Connection: Wired USB 3.0
• Scanning Scope: 16 × 14mm
• Depth of Field: 0–25mm
• Scanning Accuracy: Single Crown ≤10µm / Full Arch ≤20µm
• Imaging Method: Optical Continuous Video Capture
• Image Mode: 3D Video
• Output Formats: STL, PLY (True Color), OBJ
• Scanner Tips Included: 3 Standard + 1 Mini + 1 Protective Cover
• Standard Tip Size: 115 × 20.5 × 18mm
• Mini Tip Size: 115 × 17 × 13.5mm
• Anti-fog Method: Fan-cooling
• Calibration Tip: 1 Set (Optional)
• Working Lifespan: >30,000 hours

Packaging

• 1 × FLNTScan R2 Handpiece
• 3 × Standard Scanner Tips (115 × 20.5 × 18mm)
• 1 × Mini Scanner Tip (115 × 17 × 13.5mm)
• 1 × Protective Cover
• 1 × USB 3.0 Cable
• 1 × Calibration Tip Set (Optional)

Directions for Use

How to Install:-

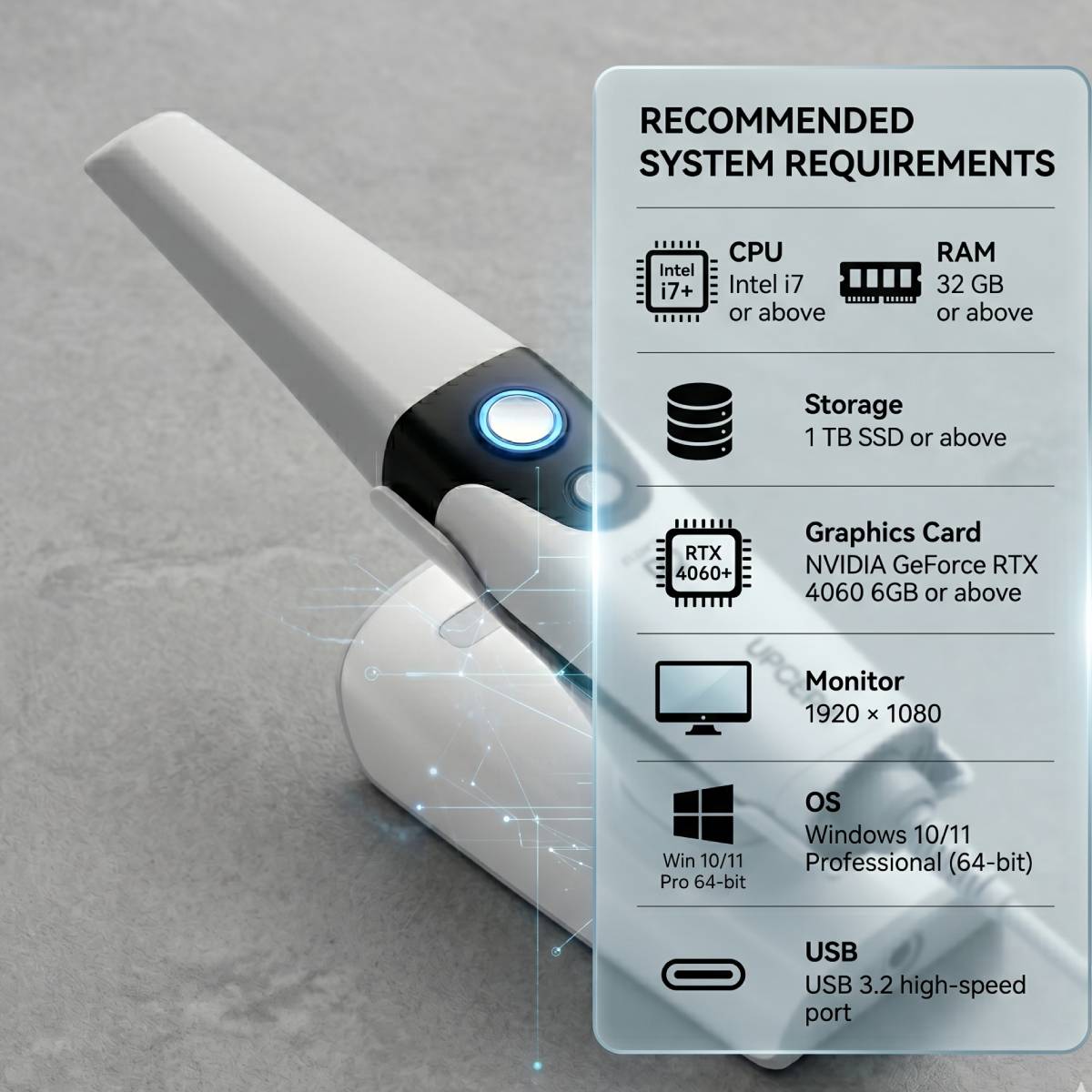

• Ensure your workstation meets the minimum system requirements before proceeding with installation.
• Connect the FLNTScan R2 handpiece to your computer using the provided USB 3.0 cable.
• Download and install the latest version of the compatible scanning software from the Upcera official website or the provided installation media.
• Follow the on-screen prompts to complete software installation; restart the system if prompted.
• Once the software is installed, launch it and allow it to detect the connected scanner automatically.
• Attach the calibration tip and perform the initial calibration as guided by the software.
• Register your device on the Upcera portal if required for warranty activation and software updates.
• Once calibration is complete, the scanner is ready for clinical use.

How to Use:-

• Launch the scanning software on your workstation and ensure the FLNTScan R2 handpiece is properly connected via USB 3.0.
• Create or open the patient file in the software and select the type of scan required — single crown, full arch, or implant.
• Attach the appropriate scanner tip — Standard tip for regular cases, Mini tip for patients with limited mouth opening or posterior access.
• Select the relevant clinical module based on the case:
  1. Standard Scan for routine restorative cases
  2. Scan Body Smart Matching for implant workflows
  3. Edentulous Arch Scanning for denture or implant planning
  4. Metal Scanning for crowns or restorations with metallic surfaces
  5. Hybrid Impression Scanning for complex or hard-to-access areas
• Position the scanner tip intraorally and begin scanning using smooth, continuous strokes along the occlusal, buccal, and lingual surfaces.
• Monitor the real-time 3D model building on screen; the AI algorithm automatically stitches frames as you scan.
• Use the High-Resolution Refinement Area function for interproximal zones and gingival margins requiring enhanced detail.
• Once scanning is complete, review the 3D model and apply Quick Reset or Model Optimization if needed.
• Generate an Oral Health Report to visualize caries, plaque, or calculus findings for patient communication.
• Use Orthodontic Simulation for case presentation or share the scan via QR-based Cloud Case Sharing with the patient or lab.
• Export the final scan in STL, PLY (True Color), or OBJ format to your preferred CAD/CAM or lab software.
• After use, remove and clean the scanner tip as per manufacturer guidelines before storage

Additional Information

• Country of Origin: Made in PRC
• Manufacturer: Upcera
