Eighteeth E -Xtreme Endomotor

Description

Eighteeth E-Xtreme Endomotor exemplifies cutting-edge precision in endodontic procedures. Weighing under 100 grams, its compact design ensures operator comfort and minimizes hand fatigue. The device features a 360° contra-angle rotation for enhanced maneuverability, facilitating precise root canal shaping. Its innovative brushless motor minimizes internal noise, creating a tranquil treatment environment. With ten customizable memory modes, operators can effortlessly adapt settings, including speed, torque, and operation modes. The device excels in both continuous rotation and reciprocating motion, accommodating diverse clinical needs. Offering preset programs for popular root canal file systems, the E-Xtreme simplifies procedures. This endomotor integrates efficiency, durability, and user-friendly customization, elevating the standard of endodontic instruments for dental professionals.

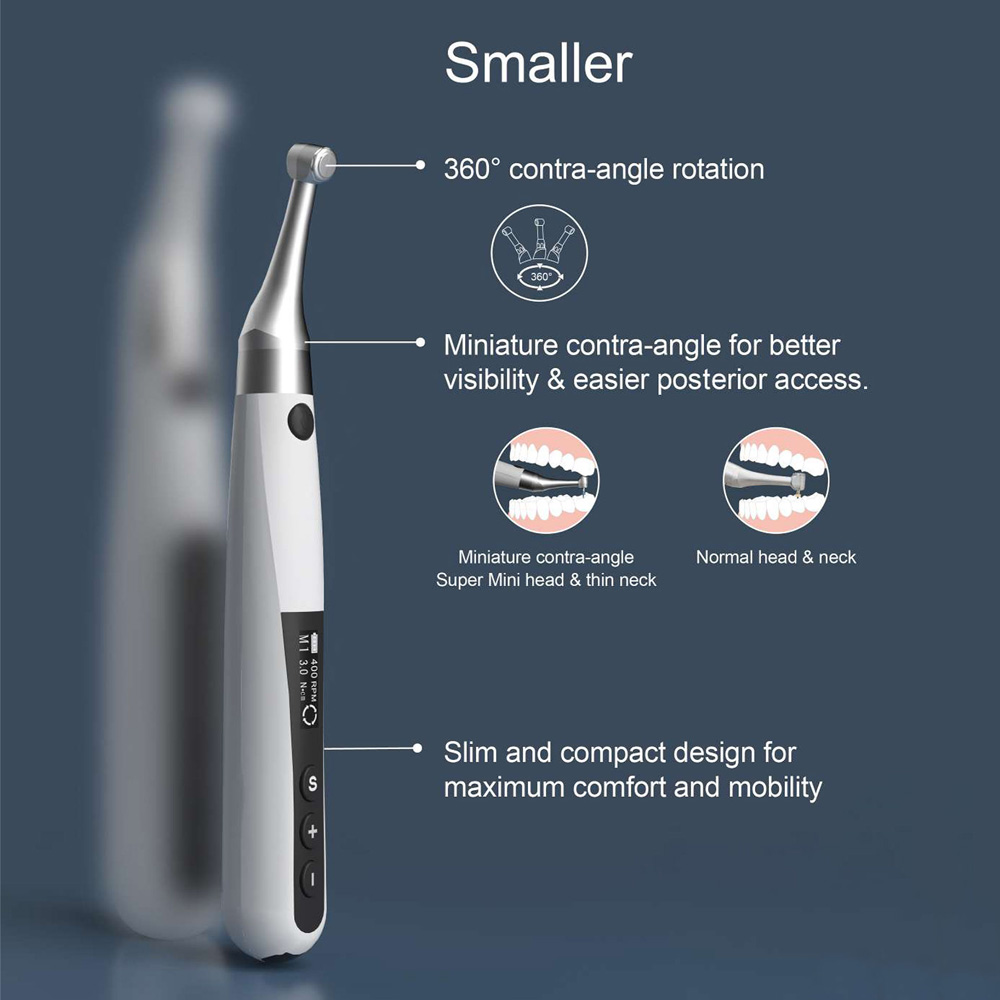

Smaller

• 360° contra-angle rotation.
• Miniature contra-angle for better visibility & easier posterior access.
• Slim and compact design for maximum comfort and mobility.

Lighter

• Less than 100 grams.
• Reducing hand fatigue during treatment.
• Providing the ultimate E-xtreme experience.

Quieter

• Eighteeth innovative motor.
• Cutting down the noise from inside.
• Allowing you to experience the tranquility.

ADVANTAGES

• Real Brushless Motor.
• Continuous Rotation.
• Reciprocating Motion.
• 10 programs with adjustable speed, torque, etc.

Key Features

Specifications

• Weight → 100 gram
• Torque Range → 0.5 Ncm-4.0 Ncm
• Power Supply → 100 V-240 V
• Frequency → 50 Hz / 60 Hz
• Speed → Upto 650 rpm
• Output → DC 5 V/ 1 A
• Charger Type → Micro USB charger
• Battery Type → Lithium ion (800mAh)
• Gear Ratio→ 1:1

Packaging

• 1 x Motor Handpiece
• 1 x Contra Angle
• 1 x Spray Nozzle
• 1 x Base
• 1 x Adapter
• 1 x Manual

Directions for Use

Startup:

• In standby mode, press the main switch to start the device.

Memory Mode Selection:

• Choose a memory mode (M1 to M9) by pressing the corresponding number.
• For preset programs, long-press ‘S’ to enter preset mode and select desired programs.

Speed and Torque Adjustment:

• Adjust speed by pressing ‘400’ and using ‘+’ or wait for 5 seconds to confirm.
• For torque, press and hold ‘S’ until torque is displayed, then adjust with ‘-‘ or ‘+’.

Rotation Direction Setting:

• Set rotation direction (Fwd or Rev) by pressing ‘S’ in operation mode.

Preset Program Use:

• If using preset programs, select one by pressing ‘S’ until desired program is displayed.

Instrument Insertion and Operation:

• Insert the root canal file into the contra angle and initiate the procedure as needed.
• Observe the progress bar on the screen during operation.

Shutdown:

• Press and hold the main switch to turn off the device.

Post-Procedure:

• Perform visual inspection of components, disassemble, and clean.
• If necessary, follow reprocessing procedures before next use.

Hygiene and Sterilization:

• For hygiene, clean, disinfect, and sterilize the contra angle and insulating sleeve before each use.
