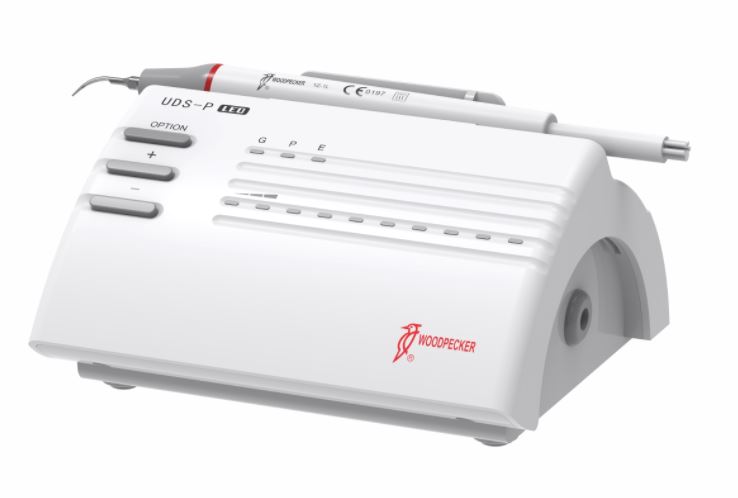

Woodpecker Uds P LED Ultrasonic Scaler

Description

UDS-P LED dental scaler is a cutting-edge, detachable, and autoclavable handpiece that operates at the optimal frequency, ensuring stable performance, while its digital controls and high efficiency make it a standout in the dental market; with features such as automatic frequency tracking, easy operation, and a power range of 3W to 20W, it offers convenience and precision for scaling procedures, while adhering to safety standards with its Class II electric shock protection and degree of protection against harmful water ingress, making it a reliable choice for dental professionals; additionally, its endo function enables efficient root canal treatments with adjustable power levels, and for utmost hygiene, the detachable handpiece can be sterilized at high temperatures and pressures, preventing cross-contamination; it is imperative to follow proper sterilization procedures, maintain cleanliness, and adhere to precautionary measures outlined in the user manual to ensure safe and effective use of the equipment. The UDS-P LED scaler’s technical specifications further demonstrate its advanced capabilities. With an output vibration excursion of less than 100μm and a half-excursion force of less than 2N, it delivers controlled and gentle scaling movements.

Key Features

• Performs Multi-function: Scaling, perio and endo.
• Optical handpiece, more convenient for clinical operation.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• The handpiece is cast from Titanium alloy to ensure sound mechanical function and durability.
• The cable is made from silica gel tube which is soft and durable.
• The scaling tip is made of special material.The cavitation produced at the end of scaling tip helps in easy cleaning of the teeth.
• It Eliminates dental calculus, bacterial plaque and tea stains on the teeth quickly without hurting the gum or the enamel.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs functions more steadily.
• Digitally controlled, easy operation and more efficient in scaling.
• Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
• CE and FDA certificated.

Specifications

• Power input 110V~ 50Hz/60Hz 220 – 240V~ 50Hz/60Hz
• Main unit input 24V~ l.3A
• Output power 3W ~ 20W
• Frequency 28kHz ± 3kHz
• Water pressure 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Main unit weight 0.68kg
• Adapter weight 1.2kg
• Dimensions 178mm×145mm×89mm

Packaging

• 1 x Main unit
• 1 x Handpiece
• 1 x Foot switch
• 6 x Tip (G1 – 2, G2 – 1, G4 – 1, P1 – 1, E1 -1)
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Directions for Use

• Ensure the power supply input is within the range of 220-240V~ 50Hz/60Hz 150mA.
• Connect the main unit input to a 24V~ 50Hz/60Hz 1.3A power source.
• Attach the handpiece securely and ensure it is detachable for sterilization.
• Before each treatment, sterilize the handpiece, scaling tip, torque wrench, endo wrench, and endochuck using recommended autoclaving methods.
• Install the scaling tip by holding the handpiece and turning the tip in the specified direction using the torque wrench.
• After each treatment, sterilize the handpiece separately, ensuring the scaling tip and endo chuckare unscrewed.
• Allow the handpiece to cool naturally before the next use to prevent scalding.
• Maintain a continuous water flow during operation to keep the scaling tip cool and efficient.
• Operate the scaler in continuous mode, adjusting the power gradually according to treatment needs.
• Follow proper sterilization protocols, including using sterile gauze or bags for packaging the handpiece, and avoid forbidden sterilization methods such as boiling or using disinfectors like iodine or alcohol.
• Regularly check the handpiece for any damage or wear, lubricate the “O” rings with dental lube, and keep the connector and cable socket dry.
• Prioritize cleanliness by cleaning the scaler before and after each operation to ensure optimal performance and infection control.

Additional Information

Warranty & Service

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
