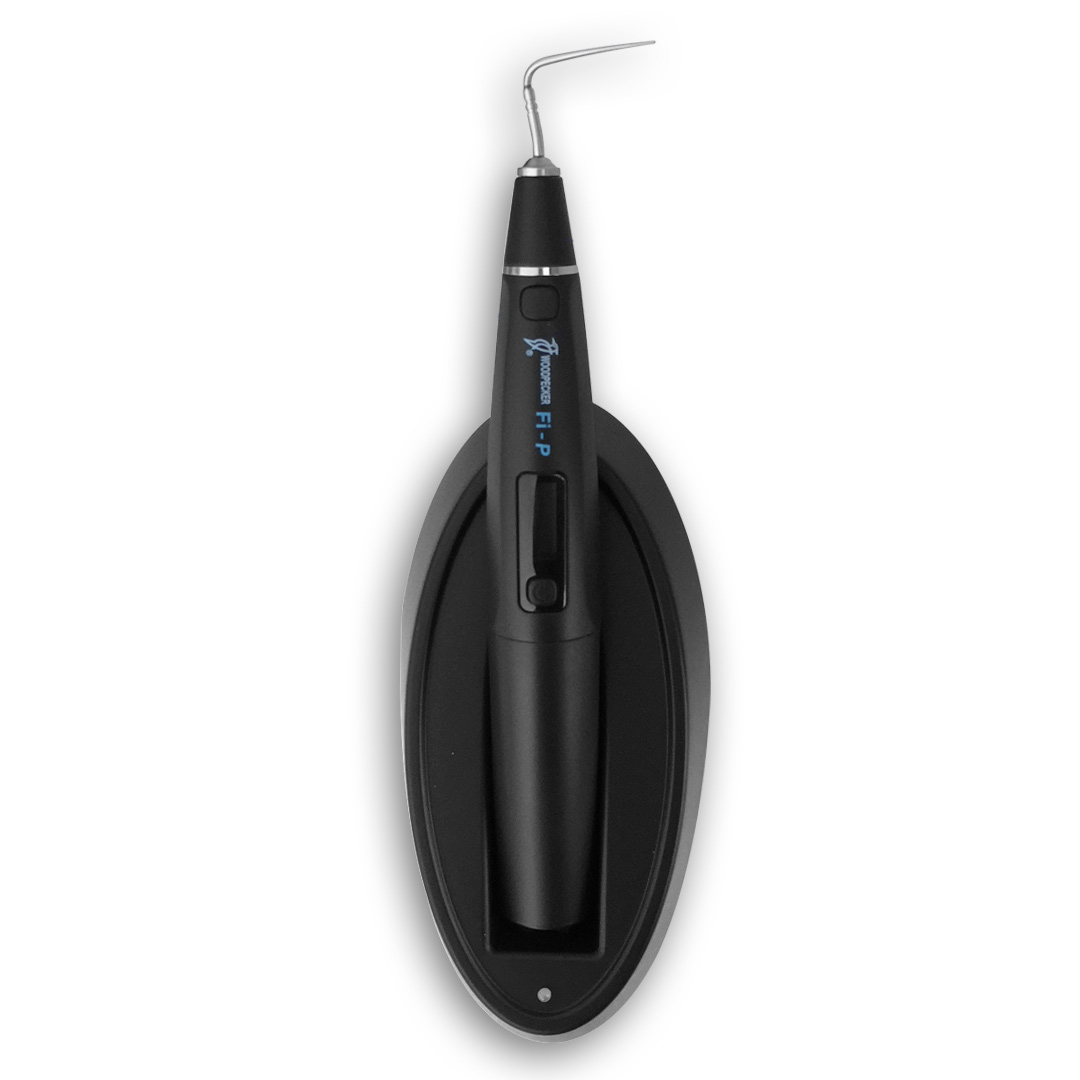

Woodpecker Obturation Pen System

Description

The Woodpecker Obturation Pen System is a versatile tool used in endodontic procedures to facilitate efficient root canal obturation. It is designed to aid in the placement and sealing of gutta-percha, a thermoplastic material commonly used in root canal treatments. With its ergonomic design and user-friendly features, this system offers enhanced precision and control during the obturation process. The Woodpecker Obturation Pen System operates through a combination of heating, cutting, and packing mechanisms to ensure optimal root canal obturation. It begins by preparing the gutta-percha points, which are selected based on the requirements of the root canal being treated. The system allows for the customization of gutta-percha points, ensuring a precise fit within the canal.

The system features a heating mechanism that softens the gutta-percha, making it pliable and easier to manipulate during placement. The temperature settings can be adjusted to meet the specific needs of the procedure. Once softened, the gutta-percha is carefully placed within the root canal, ensuring complete coverage and sealing of the canal walls.

The Woodpecker Obturation Pen System also incorporates a cutting mechanism to trim excess gutta-percha, achieving a neat and precise obturation. It assists in removing any obstructions or irregularities within the canal, ensuring a smooth and uniform seal. Additionally, the packing mechanism aids in compacting the gutta-percha, ensuring a tight seal and filling any gaps or voids.

Key Features

• Precise and efficient heating for optimal root canal filling.
• Optional preset temperatures for customizable heating.
• Intuitive interface with user-friendly controls.
• Portable and rechargeable design for convenience.
• Dedicated charging base for secure storage and charging.
• Safety classification and durable construction.
• Versatile application for various endodontic procedures.

Specifications

Size:

• Heating and Packing Instrument: 23.8mm × 158.3mm × 23.8mm
• Charging base: 75.5mm × 149.7mm × 62.6mm

Weight:

• Heating and Packing Instrument: 80g
• Charging base: 195g
• Power adapter: 167g

Technical Parameters:

• Classification: Class Ⅱ (AC/DC power adapter)
• Optional preset temperatures: 150℃ → 180℃ → 200℃ → 230℃
• Time consumption for charging: About 2.5 hours
• Power supply:
  • Input: AC100V-240V, 50/60Hz, 800mA
  • Output: DC15V/1.6A
• Battery capacity: Chargeable battery with 2000mAh capacity

Packaging

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual

Directions for Use

Charging:

• • Connect the power adapter to the charging base.
  • Plug the power adapter into a power outlet.
  • Place the Heating and Packing Instrument onto the charging base. Ensure it is properly aligned for charging.
  • Allow the instrument to charge for approximately 2.5 hours until fully charged. The charging indicator will show when the charging is complete.

Powering On:

• • Once the instrument is fully charged, remove it from the charging base.
  • Press and hold the power button on the instrument to power it on. The display will illuminate, indicating that it is ready for use.

Temperature Selection:

• • Use the temperature control buttons to select the desired temperature. The optional preset temperatures are 150℃, 180℃, 200℃, and 230℃.
  • Press the temperature control buttons to increase or decrease the temperature. The selected temperature will be displayed on the screen.

Obturation Procedure:

• • Ensure that the instrument’s heating tip is clean and free from any debris or material remnants.
  • Insert the heated tip into the obturation material, such as gutta-percha.
  • Allow the tip to heat the material for a few seconds to soften it.
  • Carefully apply the softened material into the root canal, using a gentle and controlled motion.
  • Continue the obturation process, filling the canal as required. Adjust the temperature if necessary, based on the specific requirements of the procedure.

Powering Off and Cleaning:

• • After completing the obturation procedure, press and hold the power button to turn off the instrument.
