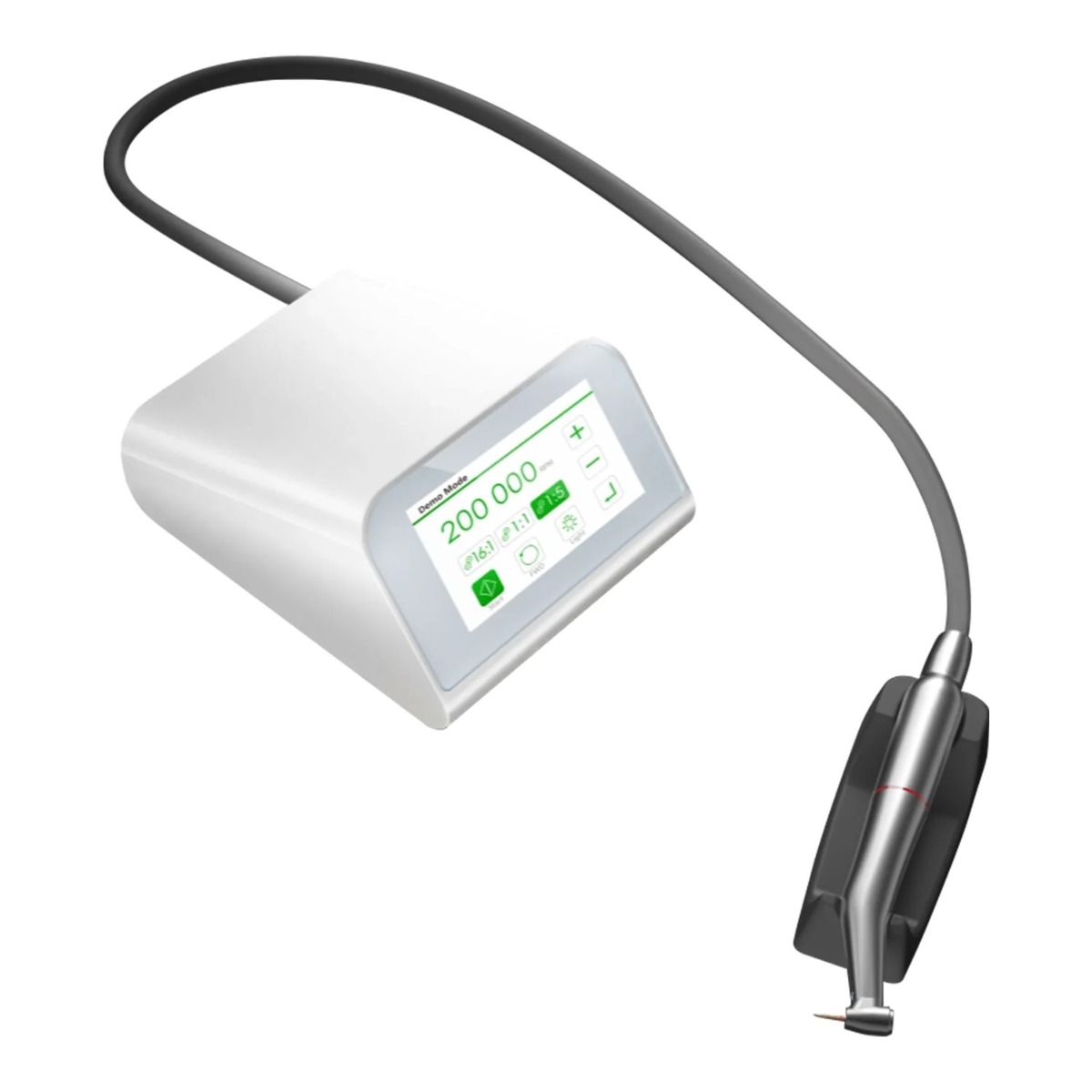

Woodpecker MT2 Dental Brushless Electric Motor With 1:5 LED Contra Angle Handpiece

Description

Key Features

• Brushless motor for precise control
• 1:5 LED Contra Angle Handpiece for stability
• Ergonomic design for comfort
• Internal water spray system for cooling
• Versatile usage across procedures
• Incorporates advanced technology

Specifications

Specification Of Main Unit

• Model: MT2
• Software version: MT2-V1.0.0
• Size: 165.5mm×129.7mm×77.6mm

Specification Of Power

• Power supply input: 100-240V~ 50/60Hz 1.5A Power supply output:
• DC 30V 3.0A

Motor Specification

• Model: E-MT
• Rotation speed: 2000-40000 rpm; Voltage input: DC 24V
• Size: Φ22×76.7mm
• Tail cord length: 1.8m Spray water source:
• Water pressure (2 bar ~ 5 bar), water flow > 50ml / min
• Spray gas source: air pressure (2.5 bar ~ 5 bar), air flow > 1.5L / min

Use Environment:

• Ambient temperature: +5℃ ~ +40℃
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa ~ 106kPa

Packaging

• 1 x Main Unit
• 1 x Motor with LED
• 1 x 1:5 Contra-Angle with LED And German Bearing
• 1 x Power Adapter

Directions for Use

Installation:

• Place the main unit on a stable surface within reach of the dental chair.
• Connect the power supply to the main unit and plug it into a power outlet.
• Ensure the foot pedal of the dental chair is properly connected to the main unit.
• Attach the 1:5 LED Contra Angle Handpiece to the motor unit securely.

Usage:

• Ensure the power switch on the main unit is turned off before use.
• Position yourself facing the screen of the main unit for easy operation.
• Turn on the power switch on the main unit and wait for the device to boot up.
• Select the appropriate speed ratio on the screen by touching the corresponding key (e.g., 1:5 for the 1:5 LED Contra Angle Handpiece).
• Control the LED light by touching the designated key on the screen.
• Adjust the speed of the motor using the “+” and “-” keys on the screen.
• Choose the desired rotation direction (forward or reverse) by touching the respective key.
• Select the working speed for the chosen mode by touching the corresponding key.
• To store the settings, touch the designated key on the screen.
• To enter the setting interface for further customization, touch the relevant key.
• For manual mode operation, touch key “8” and follow the on-screen prompts to control the motor directly without using the foot pedal.
• Calibration can be performed by touching key “9” in the setting interface and following the instructions displayed.
• To restore factory settings, touch key “10” and confirm your decision.
• Language selection can be made by touching the key “11” in the settings interface.
• To exit the submenu setting mode, touch the key “12”.

Additional Information

Warranty & Service

• Manufacturer/Importer warranty of 2 Year warranty for Main Unit and
  1-year warranty for Motor And Contra-Angle Handpicesmonths as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims about returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
