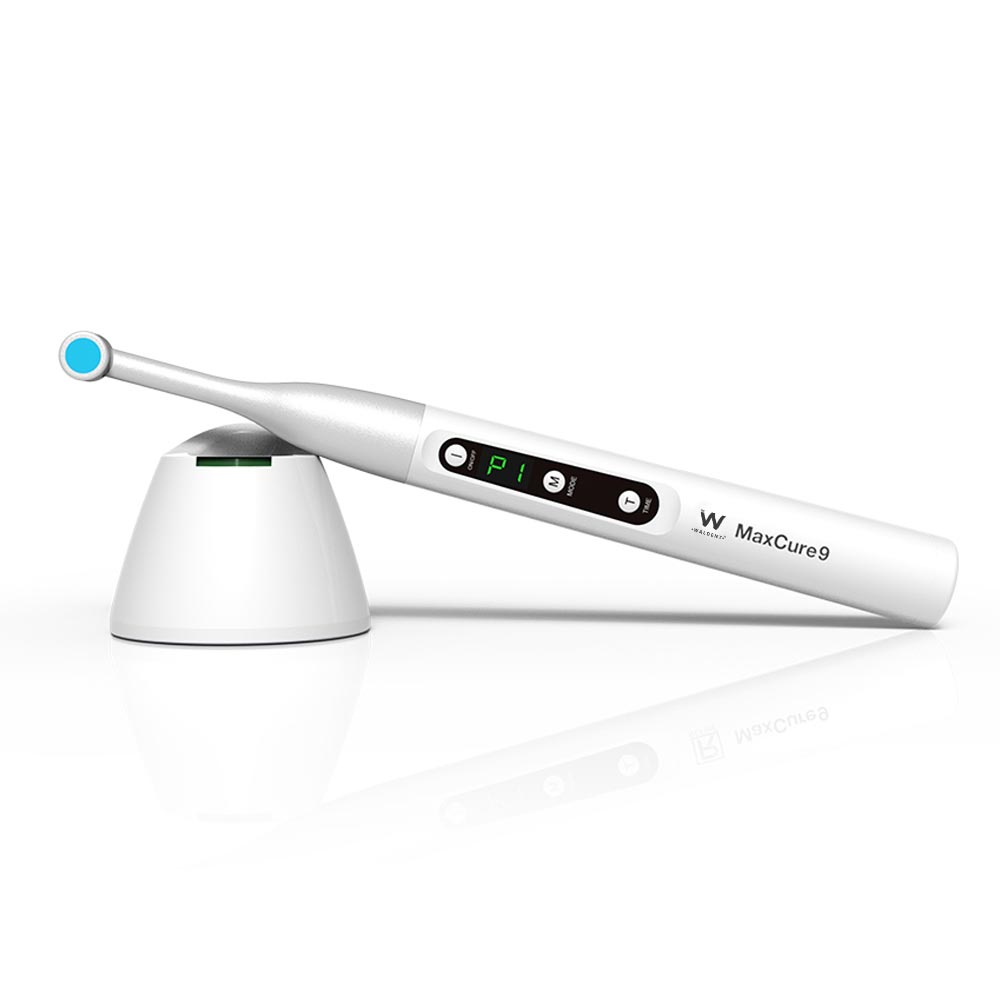

Waldent Maxcure 9 one second Light Cure Unit

Description

Light cure unit is used for the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time, it is used to restore teeth .

INDICATION :

• Used for polymerization of light cure resin-based composites. It can be used on several different dental materials that are curable by light.

ADVANTAGE :

• Especially designed to cause no fatigue to dentists hand.
• Large-capacity lithium battery.
• Shutdown automatically without any operation in 40 sec.
• Low battery warning.
• Produces narrow focus non-divergent monochromatic light.
• Requires very less power.
• Thoroughness and depth of cure is greater.

Key Features

• 1 Second curing light
• Large-capacity lithium battery
• Shutdown automatically without any operation in 40 sec
• Low battery warning
• Covered by ABS painting
• 5W powered LED
• High articulation optical fiber
• Automatic Standby/Automatic shutdown
• 5W strong power LED lamp
• Light power more than 2000mw/cm²
• When Full charged can be used over 200 times

Specifications

• Power Supply – Rechargeable Lithium Battery
• Battery voltage & capacity – 3.7V/2600mAh
• Battery Model – ICR18650
• Power Input – 100-240VAC, 50Hz/60Hz
• Power Output – DC 5V/1A
• Dimensions – ⌀72mm x 275mm
• Light Intensity – 1000mW/cm2 – 2500mW/cm2
• Light Source:5W high power blue LED
• Wavelength – 385nm – 515nm
• Net Weight – 255grams
• Power Consumption – ≤ 5W
• Software version – 1.0.0
• probe dia – 9mm
• probe length – 7.3cms
• Total unit length – 25.5cms

Mode Setting:

• TURBO mode – Display P1, Light Intensity 2300mW/cm2 – 2500mW/cm2
• NORMAL mode – Display P2, Illumination 1000mW/cm2 – 1200mW/cm2

Time Setting:

• TURBO mode : 1s, 3s
• NORMAL mode : 5s, 10s, 15s, 20s
• Lightly press the time button to choose the solidification time.

Packaging

• 1 x Main Unit
• 1 x Pedestal Charger
• 1 x Adapter
• 1 x Light Guide
• 1 x Light Hood
• 2 x “O” Ring
• 1 x Disposable sleeves Box (Pack of100)
• 1 x Instructions Manual
• 1 x Packaging list
• 1 x Quality certificate
• 1 x Warning card

Directions for Use

POWER ON/OFF MODE:

• Press the Power Button for starting/shutting down the machine.

PROGRAM SWITCH MODE:

 STEP 1:

• Long press Power Button, when the sound is heard release hand.

STEP 2:

• At the same time, the indicator light will start flashing, then repress key to select the working mode

STEP 3:

• After choosing the appropriate working mode, it will be set automatically without any operation in 3 seconds

STEP 4:

• Then press the button again to start curing the restorative material

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer/Importer warranty of  1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
