Woodpecker Ai – Motor Endomotor With Apex Locator

Description

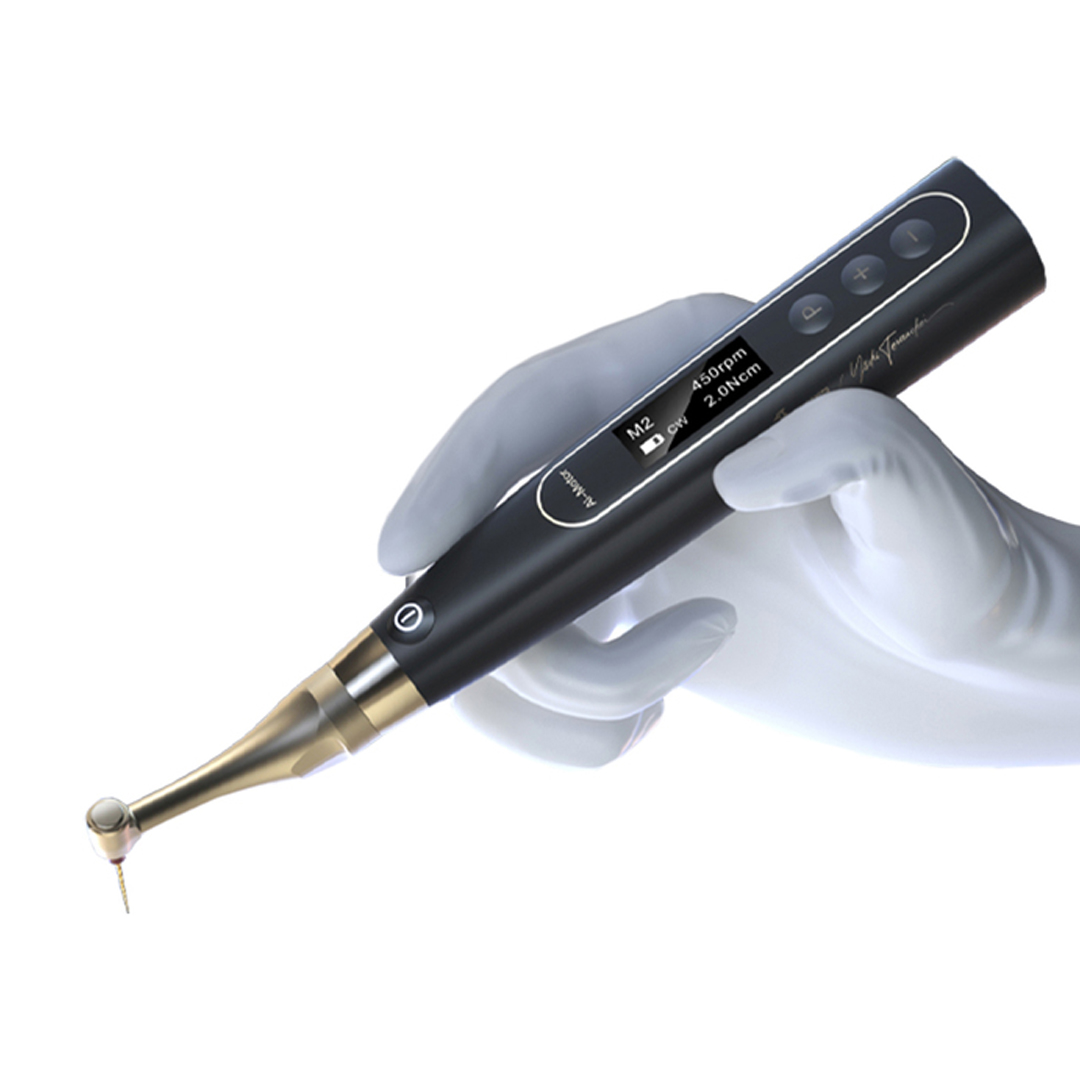

The Woodpecker Ai-Motor Endomotor with Apex Locator is an advanced, cordless endodontic device designed for efficient and safe root canal treatments. Featuring a powerful, brushless motor with low noise and long service life, it offers both root canal preparation and real-time canal length measurement. The integrated apex locator enables precise file positioning, automatically stopping or reversing when the file reaches the apical stop to prevent perforation. Its 360° rotatable contra-angle, wireless charging, and customizable settings enhance usability. Real-time feedback and dynamic torque control reduce file separation risk, making endodontic procedures more accurate, comfortable, and reliable for both dentists and patients

Indications:

• Ai-Motor is mainly used in Endodontic treatment. It is a cordless endo motor with root canal measurement capability. It can be used as a endo motor for preparation and enlargement of root canals, or device for measuring canal length. It can be used to enlarge the canals while monitoring the position of the file tip inside the canal.

Key Features

• Integrated Apex Locator: Real-time file tracking with auto-stop/reverse at apical stop to prevent perforation
• T-Mode (Ledge Bypass): Combines reciprocation and rotation (e.g., 90° clockwise/counterclockwise “watch-winding”) to navigate obstructions
• Customizable Reciprocation: Adjustable angles (20°–340° in 10° intervals) for complex anatomy or separated instruments
• Brushless Motor: High torque (0.4–5.0 Ncm) and speed (100–2500 RPM) with 10x longer lifespan than brushed motors
• 360° Rotatable Contra-Angle: Mini head (8mm diameter) enhances access, especially in posterior teeth
• Auto Start/Stop: Activates when the file enters/exits the canal, improving workflow efficiency
• Wireless Charging: 2000mAh battery with wireless charging for uninterrupted use
• Preprogrammed Profiles: 30 built-in file systems + 10 customizable programs
• Dynamic Torque Control: Reduces file separation risk during curved/narrow canal preparation
• Low Noise Operation: Smooth rotation for patient comfort

Specifications

• Lithium battery in motor handpiece: 3.7V /2000mAh
• Power adapter Model: (ADS-6AM-06N 05050/UE08WCP- 050100SPA)
• Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Output: 5.0V 1A
• Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）
• Speed rang: 100rpm~2500rpm
• Charging mode: wireless charging
• Frequency range: 112-205KHz
• Environment temperature: +5℃ ~ +40℃ 1.10.2
• Relative humidity: 30% ~ 75% 1.10.3
• Atmospheric pressure: 70kPa ~ 106kPa
• Contra angle: D-8.0mm, H-9.7mm
• Contra angle ratio: 6:1

Packaging

• 1 x Main Unit
• 1 x Contra angel
• 1 x Charging base
• 1 x Power adapter
• 1 x Nozzel
• 1 x Measuring wire
• 4 x File clip
• 2 x Lip hook
• 2 x Touch probe
• 1 x Protective silicon cover
• 1 x Disposable insulation sleeves

Directions for Use

Preparation and Setup

• Ensure all components (handpiece, contra-angle, measuring wire, file clip, lip hook) are clean and sterilized before use
• Assemble the device according to the instructions, attaching the contra-angle and connecting measurement accessories if using apex locator mode

Power On and Program Selection

• Press the Main button to power on the motor handpiece; it enters Standby mode
• Press the Main button again to enter Working mode. Use the Setting button (“P”) and Adjusting buttons (“+”/“-”) to select or customize the desired program for your file system and clinical needs
• Adjust operation mode (CW, CCW, REC, ATR, EAL), speed (100–1200 rpm; 100–500 rpm for reciprocation), and torque (0.4–5.0 Ncm) as required for the selected file and procedure

File Insertion and Canal Preparation

• Attach the endodontic file to the contra-angle
• Insert the file into the canal. The motor can be set to start automatically when the file enters the canal, or you can start it manually with the Main button
• Monitor the real-time file position on the display. The integrated apex locator provides visual feedback as the file advances in the canal

Safety and Apical Actions

• As the file approaches the apex, the device automatically slows down (Apical Slow Down)
• When the file reaches the preset reference point (apical stop), the motor will either stop or reverse automatically, depending on your settings, to prevent over-instrumentation or perforation
• You can set these apical actions (OFF, Stop, Reverse) in the menu before starting

Auto Start/Stop and Reciprocation

• Enable Auto Start/Stop if desired: the motor will start when the file is inserted into the canal and stop when removed
• For ledge bypass or reciprocating techniques, set the reciprocation angles and speed as needed

Completion and Maintenance

• After use, remove the file and disassemble the handpiece.
• Clean and sterilize all components according to guidelines for future use

Tips:

• Always confirm speed and torque settings match the file manufacturer’s recommendations to avoid file separation
• Use the 360° rotatable contra-angle for better access, especially in posterior teeth
• Refer to the on-screen prompts and visual indicators for real-time guidance during the procedure

Additional Information

• Country of origin: PRC
• Manufacturer: Woodpecker
