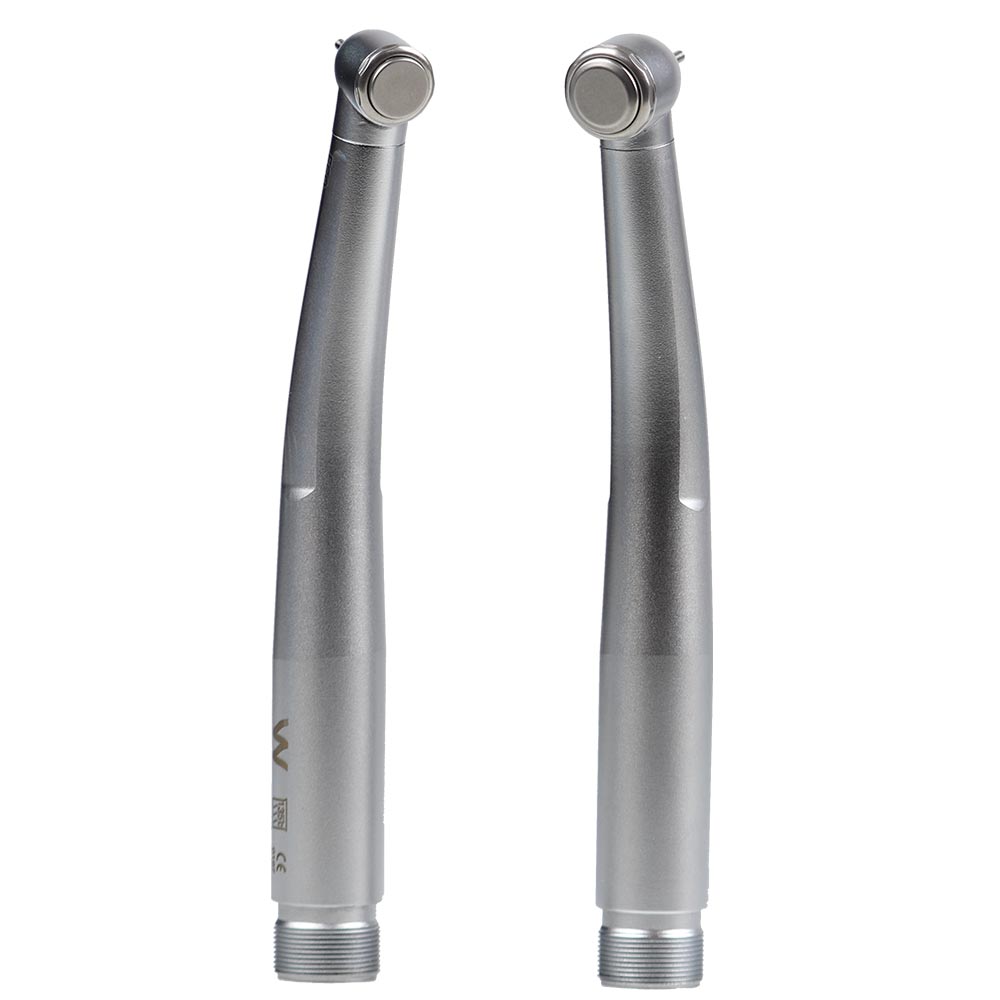

Waldent Eco Plus Airotor Handpiece -Super Torque (W-113)

Description

Waldent Eco Plus Airotor is expertly enhanced to meet the demands of modern dental surgeries, offering the power and reliability essential for clinical procedures. Its advanced Ceramic turbine cartridge, utilizing Japanese technology, delivers exceptional smoothness, while the bur retention system is engineered to securely hold burs under increased torque loads. The airotor also features an integrated anti-retraction mechanism, ensuring a safer and more hygienic work environment. Waldent Eco Plus Airotor Cartridges are specifically compatible with the Waldent Eco Plus Airotor, designed to extend bearing lifespan and provide an antimicrobial environment. Elevate your dental practice with the Waldent Eco Plus Airotor, combining innovative technology and reliability for superior performance.

Waldent Eco Plus Airotor Cartridges

Compatible with Waldent Eco Plus Airotor

Please Note: This cartridge is compatible with Waldent Eco Plus Airotor only

This helps to –

• Increase the life span of bearing
• Provides antimicrobial environment

Key Features

Design

• Exclusive Design
• Push Button Type
• Sleek Body
• Better Grip
• Excellent Texture

Bearing

• Ceramic ball bearing – long life span

Material

• Made of high quality stainless steel

Speed

• High speed handpiece
• Extra-torque & superior cutting efficiency
• Optimal power

Water Spray

• Optimum cooling of the treatment site with single water spray

Connection

• Two hole Bordon Chair connection

Corrosion Resistant

• Autoclavable at 135 degree celsius

Specifications

• Head Size: Ø12mm x H14 mm
• Total Length: 12.3cm

Packaging

Airotor:

• 1 x Airotor Handpiece
• 1 x Instruction Manual
• 1 x Cap Wrench

Cartridge:

• 1 x Airotor Cartridge

For Handpiece Oil: Click here to buy the Handpiece Oil

Directions for Use

Preparation:

• Ensure that the handpiece is clean and sterilized before use. Autoclave it at 135 degrees Celsius for proper disinfection.
• Check that the bur (drill) you plan to use is compatible with the handpiece and meets the specified size standards (1.590-1.600 mm ISO).

Connection:

• Connect the handpiece to the dental unit using the two-hole Borden Chair connection.

Air and Water Supply:

• Connect the air and water supply to the handpiece. Ensure that the air pressure is within the recommended range (0.18-0.25Mpa).
• Verify that the water spray is functioning properly (single water spray).

Loading the Bur:

• Use the push-button mechanism to load the bur into the chuck of the handpiece securely. Ensure that it is properly seated.

Positioning and Operation:

• Position the handpiece appropriately for the dental procedure you are performing.
• Start the dental unit and activate the handpiece. The rotation speed is 350,000rpm for Super Torque Head & 280,000rpm for Straight Head, providing high-speed and efficient cutting.

Cooling:

• During operation, the single water spray helps in optimum cooling of the treatment site, preventing overheating.

Handling and Grip:

• Take advantage of the sleek body design and ergonomic features for a better grip and control during procedures.

Completion:

• Once the dental procedure is completed, turn off the handpiece and disconnect it from the air and water supply.

Cleaning and Sterilization:

• Clean the handpiece thoroughly, removing any debris or residue.
• Autoclave the handpiece again for proper sterilization before the next use.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• The manufacturer’s warranty for this airotor is valid for 1 year and cartridge 6 months from the date of purchase.
• Warranty does not apply against any physical damage to the product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
