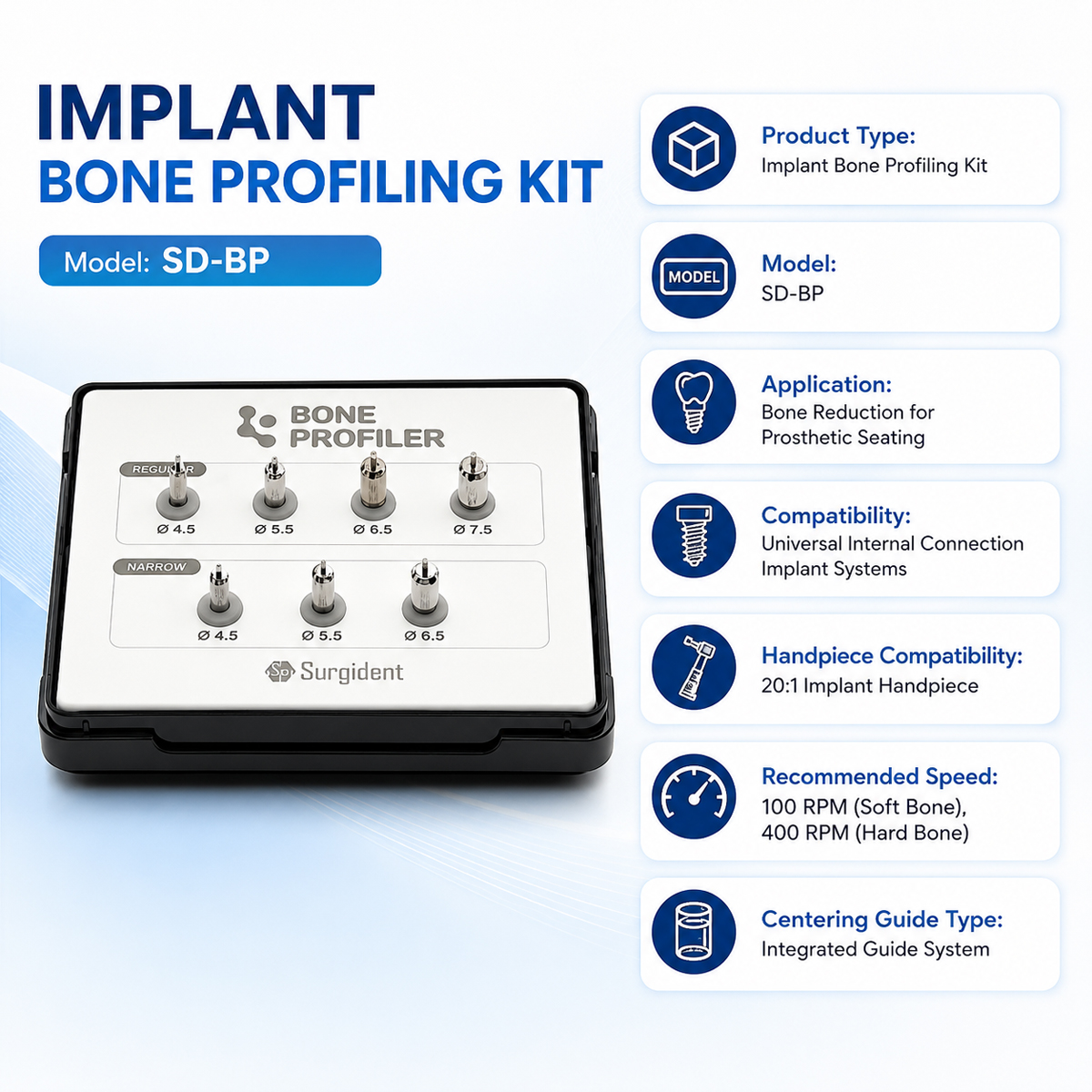

Surgident Bone Profiler Kit (SD-BP)

Description

Surgident Bone Profiler Kit (SD-BP) is a universal implant bone profiling system designed to safely and accurately remove excess bone around dental implants, creating adequate restorative space for proper abutment and prosthetic seating. The kit includes a comprehensive range of profiling burs with integrated centering guides, allowing clinicians to efficiently contour bone while maintaining precise alignment with the implant platform. Unlike conventional profiling systems that require separate screw-in guides, the Surgident Bone Profiler Kit incorporates built-in centering guides that make it compatible with virtually any internal connection implant system. The specialized non-end-cutting bur design features an implant protection platform that prevents the cutting flutes from contacting the implant surface, minimizing the risk of implant damage during bone reduction procedures. Suitable for use with a 20:1 implant handpiece, the kit provides predictable bone contouring for improved prosthetic seating, restorative accuracy, and long-term implant success.

Key Features

• Universal design compatible with internal connection implant systems
• Integrated centering guides eliminate the need for separate guide components
• Non-end-cutting bur design protects implant platforms
• Provides precise and controlled bone reduction around implants
• Improves restorative space for prosthetic seating
• Available in regular and narrow platform configurations
• Implant-safe cutting flutes reduce risk of implant damage
• Compatible with 20:1 implant handpieces
• Suitable for soft and dense bone conditions
• Comprehensive kit for implant restorative procedures

Specifications

• Product Type: Implant Bone Profiling Kit
• Model: SD-BP
• Application: Bone Reduction for Prosthetic Seating
• Compatibility: Universal Internal Connection Implant Systems
• Handpiece Compatibility: 20:1 Implant Handpiece
• Recommended Speed: 100 RPM (Soft Bone), 400 RPM (Hard Bone)
• Centering Guide Type: Integrated Guide System
• Bur Design: Non-End-Cutting with Implant Protection Platform
• Regular Platform Profiling Burs: 4.5mm, 5.5mm, 6.5mm, 7.5mm
• Regular Guide Diameter: 1.5mm
• Narrow Platform Profiling Burs: 4.5mm, 5.5mm, 6.5mm
• Narrow Guide Diameter: 1.2mm
• Clinical Use: Implantology and Prosthetic Procedures

Packaging

Surgident Bone Profiler Kit (SD-BP)

• 4 x Regular Guide
• 3 x Narroe Guide

Directions for Use

Preparation

• Expose the implant platform and evaluate excess bone around the implant.
• Select the appropriate profiling bur based on implant platform size and restorative requirements.
• Choose regular or narrow shaft burs according to implant connection dimensions.

Bone Profiling

• Attach the selected profiling bur to a 20:1 implant handpiece.
• Insert the integrated centering guide into the implant connection.
• Operate at approximately 100 RPM for soft bone and 400 RPM for dense bone.
• Remove excess bone carefully while maintaining adequate irrigation.

Verification

• Assess the implant platform and surrounding bone contour.
• Verify sufficient clearance for prosthetic component seating.
• Repeat profiling if additional bone reduction is required.

Post-Procedure Care

• Thoroughly irrigate the surgical site.
• Inspect the implant platform for cleanliness.
• Proceed with abutment placement or restorative procedures.

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456
