Sawbros Orthodontic IPR Blades set + Manual Handle Straight

Description

Sawbros Orthodontic IPR Blades set + Manual Handle Straight is designed for efficient interproximal reduction in orthodontic treatments, offering precise enamel reduction and polishing. It includes a range of abrasive blades with varying thicknesses to address different reduction needs. The white serrated blade is ideal for opening contact points, while the yellow single-sided blade initiates reduction and final polishing. The blue single-sided blade provides additional reduction and pre-polishing, and the purple single-sided blade is perfect for main reduction tasks. For contouring, the blue double-sided blade is used, while the black double-sided blade achieves high enamel reduction. The set is paired with a straight manual handle for easy handling and optimal control during procedures.

Key Features

• Variety of Blade Thickness: Includes multiple blades with different micrometer thicknesses (90 µm to 300 µm) for versatile enamel reduction and polishing
• Serrated Edge: The white saw blade (100 µm) features a serrated edge for efficient opening of contact points
• Single-Sided Abrasive Files: Yellow, blue, and purple blades are single-sided for controlled abrasion, making them ideal for initial reduction, pre-polishing, and main reduction
• Double-Sided Abrasive Files: Blue (200 µm) and black (300 µm) blades offer enhanced efficiency for contouring and high enamel reduction
• Ergonomic Design: Designed for ease of use with precise control during orthodontic procedures.
• Durable and Long-Lasting: Built to withstand repeated use without losing effectiveness or efficiency
• Safe and Effective: Ideal for controlled enamel reduction and finishing, ensuring patient comfort and optimal results

Specifications

IPR Blade Set:

Packaging

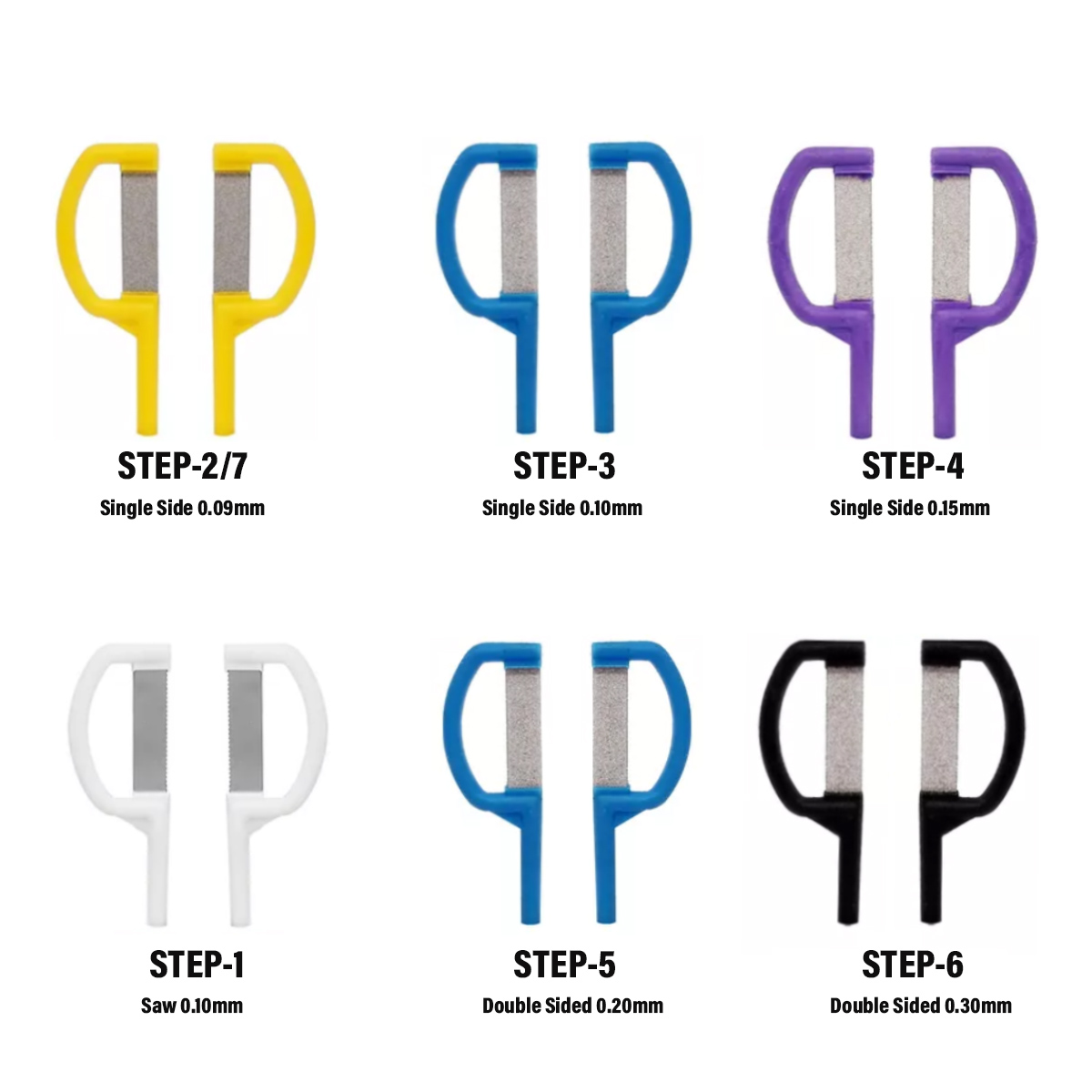

• 1 x Manual Handle Straight
• 1x IPR Blade Set White (Saw)(100 μm)(L+R)
• 1 x Yellow(Single Side)(90 μm)(L+R)
• 1 x Blue(Single Side)(100 μm)(L+R)
• 1 x Purple(Single Side)(150 μm)(L+R)
• 1 x Blue(Double Side)(200 μm)(L+R)
• 1 x Black(Double Side)(300 μm)(L+R)

Directions for Use

Step 1: Open Contact Point

• Use the white saw blade (100 µm) or strip to gently open the contact point

Step 2: Initial Reduction

• Begin with the yellow single-sided file (90 µm) to initiate the IPR. Gently pass it through the contact point. Stop when there’s no friction. The space will now measure 0.09mm

Step 3: Additional Reduction

• Pass the blue single-sided file (100 µm) through the contact until friction is felt. The space will now measure 0.10mm

Step 4: Main Reduction

• Use the purple single-sided file (150 µm) to further pass through the contact until there’s no friction. The interproximal space will now be 0.15mm

Step 5: Increase Space to 0.20mm

• If a 0.20mm space is desired, repeat the process with the blue double-sided file (200 µm)

Step 6: Create Larger Space

• For a space greater than 0.30mm, use the black double-sided file (300 µm), applying gentle force towards the tooth surface. Measure the space with the gauge to confirm the desired result

Step 7: Polishing

• Finish by using the yellow file (90 µm) to polish the treated surface, avoiding enamel furrows once the desired space is achieved

Note: Always use the files in sequence. Files will only cut where there is contact between the teeth

Additional Information

Country of Origin: India

Manufacturer:
Sawbros Industries Pvt. Ltd.
A-68, Sector 2, Noida – 201301, Uttar Pradesh, India

Packer:
Sawbros Industries Pvt. Ltd.
A-68, Sector 2, Noida – 201301, Uttar Pradesh, India

Distributed By:
Sawbros Industries Pvt. Ltd.
A-68, Sector 2, Noida – 201301, Uttar Pradesh, India

Warranty & Service

• Warranty is not applicable for this product
