NSK SGO-2 Surgical Blade (H174044)

Description

The NSK SGO-2 Blade is a high-quality bone-cutting blade designed for precision and efficiency in medical procedures. With a blade thickness of 0.3mm, it offers exceptional sharpness and strength to ensure accurate and clean cuts. The working length of the blade is 10.5mm, allowing for precise access and maneuverability in tight spaces. The cutting surface measures 6mm, providing ample surface area for effective bone cutting and reducing the risk of slippage during procedures.

The blade handle length is 45mm, offering a comfortable grip and optimal control for surgeons or medical professionals. The handle is ergonomically designed to minimize hand fatigue during prolonged use, allowing for greater precision and accuracy.

The NSK SGO-2 Blade is engineered with the utmost attention to safety. Each blade undergoes stringent quality control measures to ensure compliance with industry standards. Its ergonomic handle provides a comfortable grip, reducing fatigue and enhancing surgical precision. The blade is also compatible with a range of surgical instruments, allowing seamless integration into existing surgical workflows.

Key Features

• High-quality construction
• Precision cutting performance
• 0.3mm blade thickness
• Exceptional sharpness
• 10.5mm working length
• Comfortable handle grip
• Ergonomic design
• Reduced slippage risk
• Reliable bone preparation

Specifications

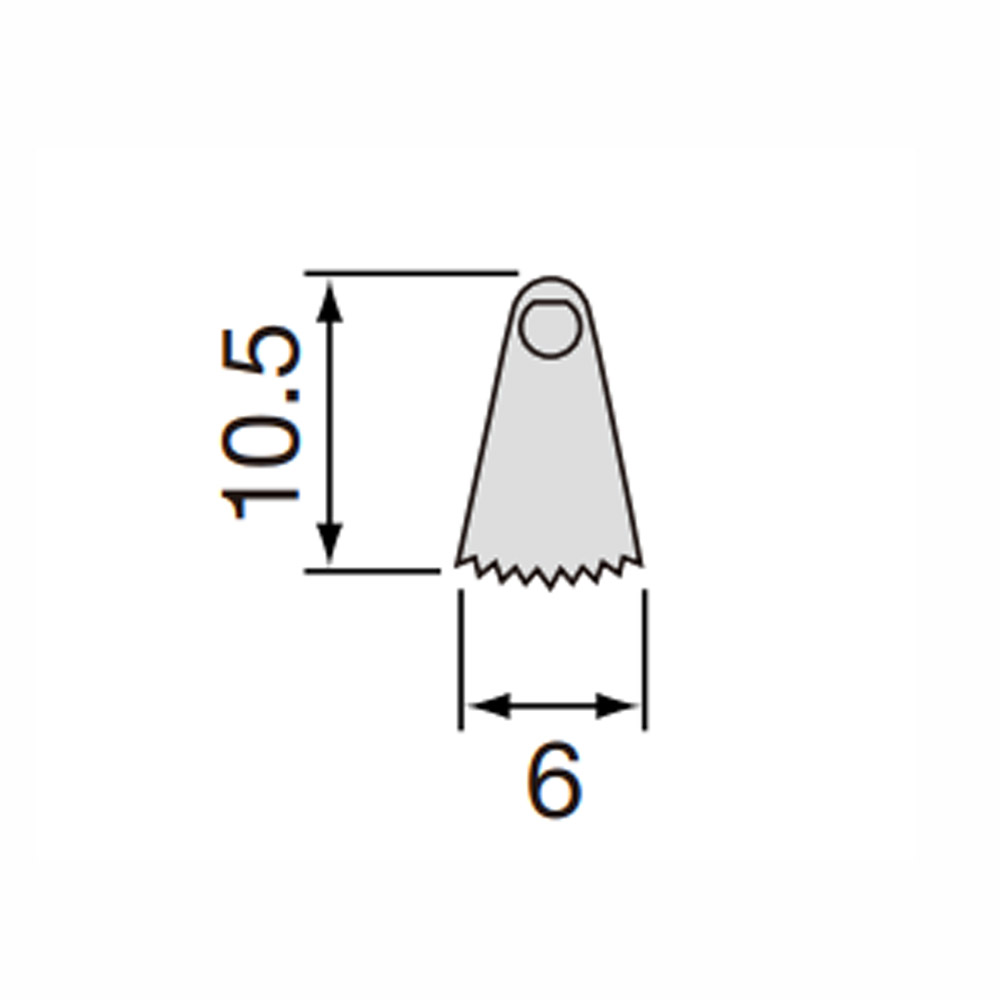

• Blade thickness: 0.3mm for sharpness and strength
• Working length: 10.5mm for precise access and maneuverability
• Cutting surface: 6mm for effective bone cutting
• Blade handle length: 45mm for comfortable grip and control
• Reliable, durable, and high-quality bone-cutting tool

Packaging

• 1 x Nsk SGO-2 Blade

Directions for Use

• Attach the NSK SGO-2 Blade securely to the handpiece
• Connect the handpiece to the power source or air supply as per the handpiece’s specifications.
• Adjust any speed or torque settings on the handpiece to the appropriate level for the procedure.
• Hold the handpiece with a firm grip, ensuring stability and control.
• Activate the power or air supply to start the handpiece, ensuring it is running at the desired speed.
• Position the cutting surface of the NSK SGO-2 Blade against the targeted bone area, maintaining a steady hand.
• Apply gentle and controlled pressure to initiate the cutting motion, moving the blade in the desired cutting path.
• Maintain focus and adjust the cutting angle as necessary to achieve precise bone cutting.
• Monitor the procedure carefully, making any adjustments to speed, pressure, or angle as needed.
• After completing the bone-cutting procedure, power off or disconnect the handpiece from the power source or air supply.
• Safely remove the NSK SGO-2 Blade from the handpiece

Additional Information

Country of Origin: Japan

Manufacturer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Packer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456
