NSK MPAS F16R Endomotor Handpiece (Y110098)

Description

The MPAS F16R Handpiece is an advanced dental instrument designed to enhance the precision and efficiency of root canal preparations. It is meticulously crafted to provide optimal performance and compatibility with Ni-Ti files measuring Ø2.35, making it an ideal tool for dental professionals. One of the standout features of the MPAS F16R Handpiece is its seamless integration with an Apex locator. This compatibility allows for precise measurements and integration during root canal procedures. With a built-in probe ring that effortlessly connects with the Apex locator, this handpiece ensures accurate and reliable functionality, especially when using short shank files.

The handpiece boasts a versatile gear ratio of 16:1 reduction, offering a wide range of speed options to cater to diverse treatment requirements. This gear ratio significantly enhances control and accuracy during root canal preparations, allowing dental professionals to achieve precise results with ease. The MPAS F16R Handpiece features a convenient push-button chuck mechanism that simplifies the insertion and removal of files. This mechanism not only saves valuable time during procedures but also streamlines file management, improving workflow efficiency. Furthermore, the handpiece enables 360° rotation, providing dental professionals with convenient maneuverability and unhindered access to all areas of the root canal.

It’s worth noting that the MPAS Head is a specialized component that can be used in conjunction with compatible dental handpieces or systems, such as the Endomate. By combining the MPAS Head with the Endomate TC2, DT & AT systems and an Apex Locator, clinicians can achieve even greater accuracy and precision during root canal preparations.

Key Features

• Precision instrument for enhanced accuracy in root canal preparations.
• Compatible with Ø2.35 Ni-Ti files for optimal performance.
• Integration with Apex locator for precise measurements.
• Built-in probe ring for seamless connection with the Apex locator.
• 16:1 gear ratio for enhanced control and accuracy.
• Push-button chuck mechanism for effortless file insertion and removal.
• 360° rotation for convenient maneuverability.

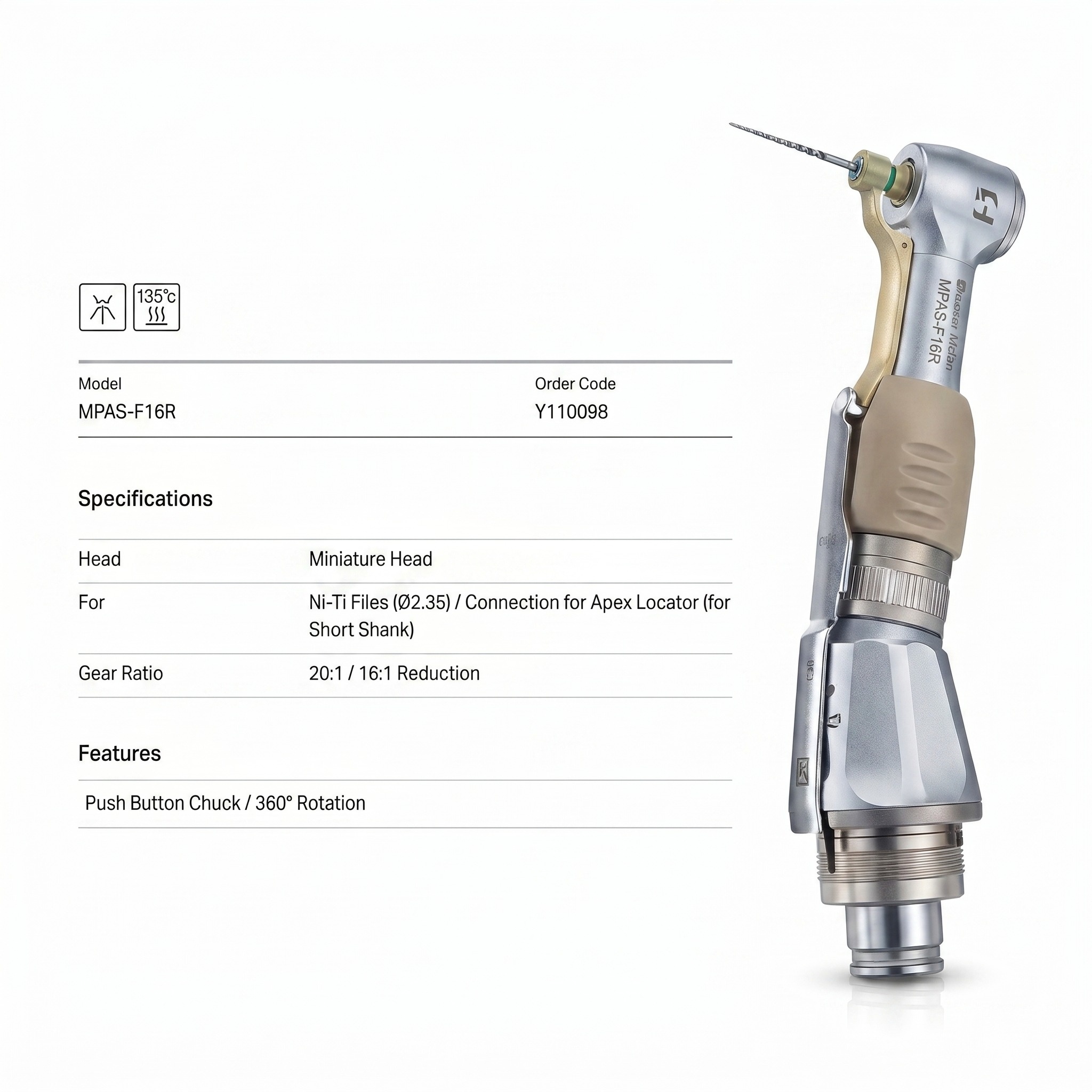

Specifications

• Head: Miniature Head
• For: Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Short Shank)
• Gear Ratio: 16:1 Reduction

Packaging

• 1 x Handpiece

Directions for Use

To use the MPAS F16R Handpiece, follow these step-by-step instructions:

• Begin by removing the rubber cap on the backside of the motor handpiece body using a slotted bit screwdriver. This will expose the connection area.
• Insert the Connection Cord Clip into the exposed connection area. Ensure it is securely in place.
• Mount the Contra Angle Head to the motor handpiece. When removing or replacing the head, pull it out straightly without applying any angle or force.
• Take the Connection Cord and insert it into the slit of the Connection Cord Clip. Adjust the tension of the Connection Cord between the head and the Connection Cord Clip to ensure it is not too slack.
• Connect the Contra Angle Head Connection Cord to the Clip of the Apex locator. Make sure the connection is secure.
• Insert the Endodontic file into the head of the handpiece. Lightly turn the file until it engages with the latch mechanism. Then, push it inward to hear a click, indicating that it is securely in place.
• When it’s time to remove the file, push the push button on the handpiece with your thumb. This will release the file from the latch mechanism, allowing for easy removal.
• If you need to mount a different Endodontic file to the Contra Angle Head, slide the File Clip Holder towards the head direction until it contacts the Endodontic file and File Clip. This ensures a secure fit.

To connect or disconnect the cord:

• To connect: Insert the Cord Mounting Pin at the end of the cord into the hole on the Motor Handpiece body. The cord should be at a right angle to the body. Rotate the cord 90˚ until it seats correctly.
• To disconnect: Move the cord back and rotate it in the opposite direction to release it from the Motor Handpiece body.
