Zylo Electrocautery Unit HF-1

Description

ATS Electrocautery Unit HF-1 is a high-frequency surgical device designed to perform precise cutting, coagulation, and soft-tissue management during dental and oral surgical procedures. The device converts electrical energy into high-frequency voltage that produces a controlled electrical spark between the electrode and tissue surface. This spark generates thermal energy that can vaporize tissue, excise lesions, and simultaneously seal small blood vessels, providing effective hemostasis during procedures. This technology enables clinicians to perform minimally invasive procedures with improved accuracy and reduced bleeding. The device features adjustable power levels, a digital display for monitoring output intensity, and a footswitch control system for convenient hands-free operation. A variety of precision electrodes with insulating sleeves allow targeted tissue treatment while protecting surrounding tissues. The unit is compact, lightweight, and easy to operate, making it suitable for dental clinics and minor oral surgery procedures. It is commonly used for gingival contouring, lesion removal, soft tissue excision, and other surgical procedures where precision and controlled coagulation are required.

Key Features

• High-frequency electrosurgical technology for precise tissue cutting and coagulation
• Adjustable output power levels for controlled surgical performance
• Digital display for clear visualization of working intensity levels
• Footswitch-controlled activation for hands-free operation during procedures
• Multiple precision electrodes for various surgical applications
• Efficient coagulation that helps reduce bleeding during procedures
• Compact and lightweight design suitable for dental clinics
• Audible and visual indicators for safe device operation
• Ergonomic handpiece for comfortable handling during treatment

Specifications

Working Frequency: 260 kHz ±10% high-frequency output for effective electrosurgery

Maximum Output Power: 20W ±10% for controlled tissue cutting and coagulation

Maximum Output Voltage: 3000V ±10% for precise spark generation

Power Supply: 100–240V AC, 50/60Hz compatible with standard electrical systems

Input Power: 60VA operational consumption

Main Unit Dimensions: 16 × 21 × 6.7 cm compact design

Operating Environment: 0°C – 40°C temperature with 10–85% relative humidity

Protection Type: Class I electrical safety with BF type applied part

Ingress Protection: Main unit IPX0, footswitch IPX1

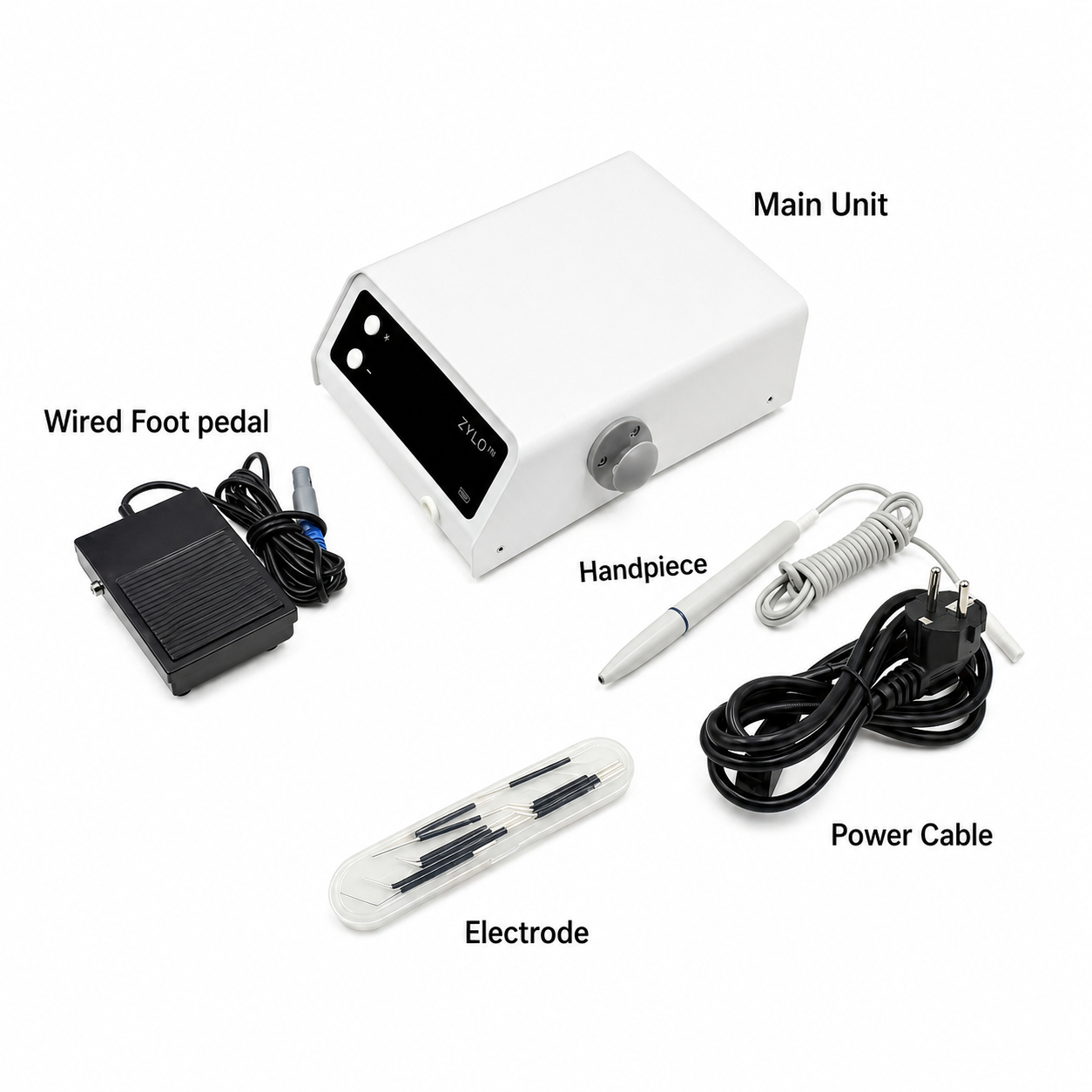

Packaging

• 1 x Main Unit
• 1 x Box (Each Box 10 Pcs Electrode)
• 1 x Wired Footswitch
• 1 x Handpiece
• 1 x Power Cable (with grounding)
• 1 x User Manual

Directions for Use

• Select the appropriate electrode based on the type of surgical procedure.
• Ensure the main unit is turned OFF before inserting the electrode into the handpiece.
• Insert the electrode firmly into the handpiece slot and confirm proper fixation.
• Turn on the main power switch located on the device.
• The display will show the initial working level.
• Adjust the output power level according to the treatment requirement.
• Position the electrode close to the tissue (approximately 1–3 mm gap recommended).
• Press the footswitch to activate the device and begin the procedure.
• After completing the procedure, switch off the device and disconnect the power supply.
• Remove and disinfect the electrodes and clean the handpiece according to sterilization protocols.

Additional Information

• Manufactured By: Guilin Neway Medical Instrument CO., LTD, 302# & 303#, 3rd Floor, Building 1, No. D-08 Information Industry District, High-Tech Zone, Guilin, Guangxi 541004, China
• Packed By: Guilin Neway Medical Instrument CO., LTD, 302# & 303#, 3rd Floor, Building 1, No. D-08 Information Industry District, High-Tech Zone, Guilin, Guangxi 541004, China
• Marketed By: VASA DENTICITY LIMITED, Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India

Warranty & Service

 Manufacturer/Importer warranty of 1 year as applicable for this product.
