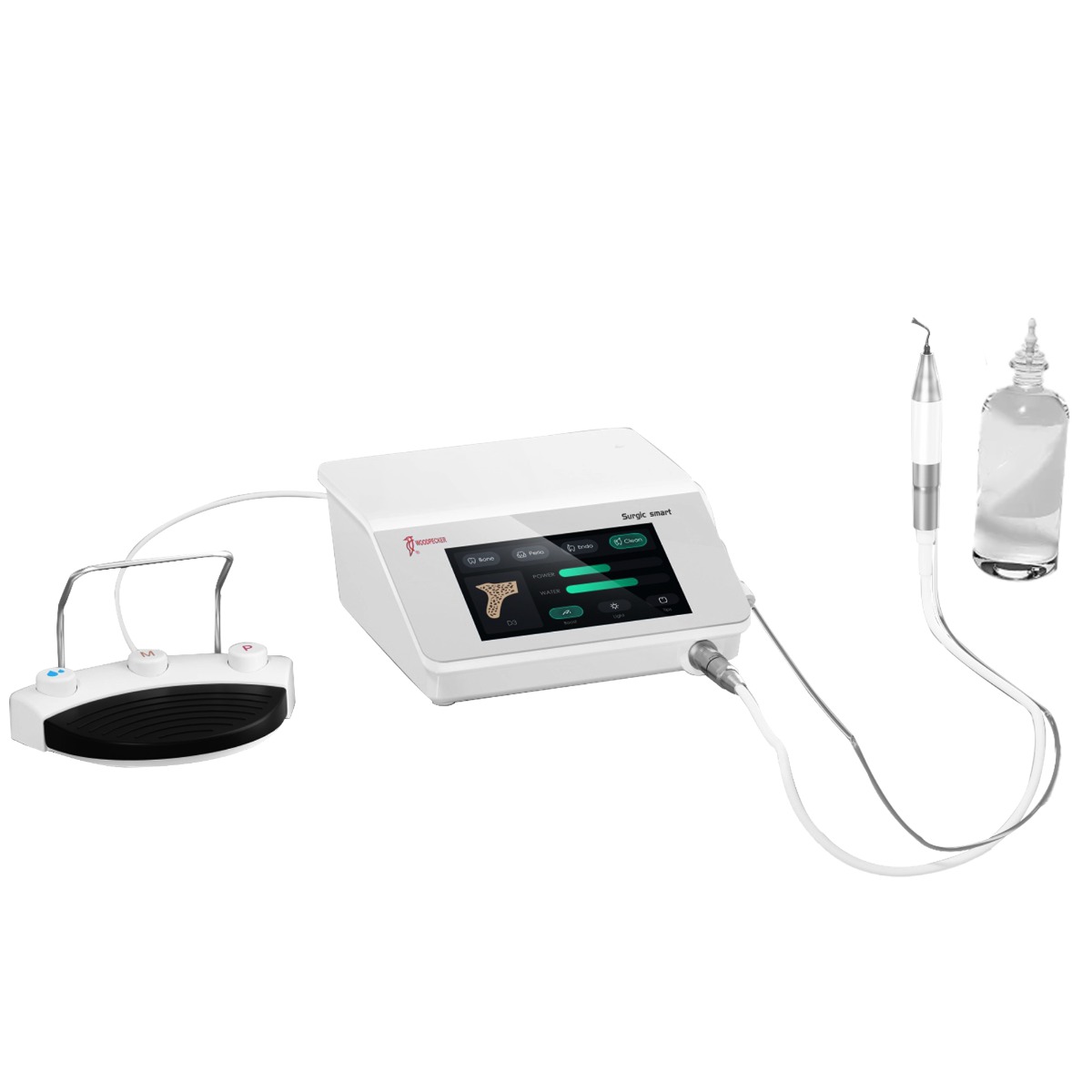

Woodpecker Surgic Smart Piezosurgery Unit

Description

The Woodpecker Surgic Smart Piezosurgery Unit stands as a pinnacle of dental surgical technology, embodying intelligence and power in one comprehensive package. Recently enhanced, this unit is fortified with remarkable strength and unwavering reliability, redefining the standards of dental procedures.

Featuring a sterilizable water pipe, it guarantees a consistently hygienic surgical environment, ensuring patient safety and procedural precision. The multi-function foot pedal offers intuitive control, facilitating seamless operation with ease and accuracy. What sets it apart is the ultra-quiet peristaltic pump, ensuring a serene and comfortable environment for both practitioner and patient.

Operating on BoneSurgical4-V1.0.0 software, it adapts to evolving technological trends. Its intermittent operation cycle of 60 seconds on and 10 seconds off optimizes performance and conserves energy. With a power-supply voltage range of ~100V-240V at 50Hz/60Hz and a consumption of 170VA, it ensures versatility and compatibility.

With a working frequency spanning from 24kHz to 36kHz, the Surgic Smart offers precision and control in surgical procedures. It provides a variable flow rate of 25 to 110ml per minute, catering to a wide range of surgical needs. The Woodpecker Surgic Smart Piezosurgery Unit represents a leap forward in dental surgical technology, combining intelligent features with powerful performance for optimal patient care.

Key Features

• Intelligent Design: Smartly engineered for precise and efficient dental surgical procedures.

• Upgraded Performance: Newly enhanced for increased power and effectiveness in clinical applications.

• Reliable Operation: Demonstrates unwavering dependability, ensuring consistent surgical outcomes.

• Sterilizable Water Pipe: Equipped with a sterilizable water pipe for a hygienic surgical environment.

• Multi-Function Foot Pedal: Allows for intuitive control, facilitating seamless operation.

• Ultra-Quiet Peristaltic Pump: Minimizes operational noise, ensuring a calm and comfortable experience.

• Compliance and Safety: Meets European Directive 93/42EEC, ensuring adherence to high medical device standards.

• Versatile Voltage Range: Compatible with power supplies ranging from ~100V to 240V at 50Hz/60Hz.

• Variable Flow Rate: Offers a flow rate range of 25 to 110ml per minute for precise surgical control

Specifications

• Compliance: Directive 93/42EEC
• Ingress Protection Rating: Device: IPX1, Foot Pedal: IPX6 (EN60529)
• Software Version: BoneSurgical4-V1.0.0
• Operation Cycle: 60 seconds ON, 10 seconds OFF
• Power-Supply Voltage: ~100V-240V, 50Hz/60Hz
• Power Consumption: 170VA
• Fuses: 2×1.6AT, 250V
• Working Frequency: 24kHz~36kHz
• Flow: 25~110ml/min
• Applied Parts: Tips
• Additional Features: Sterilizable water pipe, Multi-function foot pedal, Ultra-quiet peristaltic pump
• Usage– In oral and maxillofacial surgery
• Contra Indication: Do not use the Surgic smart on patients with pace-makers or other implantable electronic devices. The same requirement applies also to the operator.
  An electrosurgical knife could interfere with correct functioning of the device.

Packaging

• 1 x Device
• 1 x Multi-function foot pedal
• 2 x Brine bottle connector
• 1 x Hook
• 8 x Pump tube
• 1 x Peristaltic pump
• 2 x Surgic smart handpiece
• 2 x Silicone handpiece holder
• 4 x Connection for the cord and tube of the peristaltic pump
• 1 x Torque wrench
• 2 x Sterilize box
• 1 x Power-supply cable

Directions for Use

Setup and Preparations:

• Ensure the unit is placed on a stable surface near the dental workstation.
• Connect the power supply to the unit and plug it into a suitable electrical outlet (100V-240V, 50Hz/60Hz).
• Check that the foot pedal is connected securely to the unit.
• Fill the water reservoir with a suitable sterile saline solution.
• Insert the desired tip securely into the handpiece.

Power On:

• Switch on the Surgic Smart Piezosurgery Unit using the power button.
• Verify that the unit displays the correct software version (BoneSurgical4-V1.0.0).

Adjust Settings:

• Set the desired operational mode on the control panel, if applicable.
• Adjust the power level using the appropriate controls.

Sterilization:

• Ensure that the applied parts (tips) are properly sterilized before use. Follow recommended sterilization protocols.

Positioning and Operation:

• Position the handpiece with the selected tip in the desired area for the surgical procedure.
• Use the multi-function foot pedal for control. Press to activate and release to deactivate.

Perform the Procedure:

• Apply gentle pressure and move the handpiece in a controlled manner over the target area.
• Monitor the progress of the procedure and adjust settings as needed.

Monitor Water Flow:

• Ensure a steady flow of water to the tip for cooling and irrigation during the procedure. Adjust as necessary.

Post-Procedure:

• After completing the procedure, switch off the unit using the power button.
• Disconnect the handpiece and remove the used tip for proper disposal or re-sterilization.

Cleaning and Maintenance:

• Clean the handpiece and unit according to the manufacturer’s guidelines.
• Empty and clean the water reservoir after each use.

Shutdown:

• Switch off the Surgic Smart Piezosurgery Unit and unplug it from the electrical outlet.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker

Warranty & Service

• Manufacturer/Importer Warranty of 2 Year for main unit and 1 year Warranty from the date of purchase for the handpiece with its cord (from the date of invoice)
• Physical damage is not cover in any case
  Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
