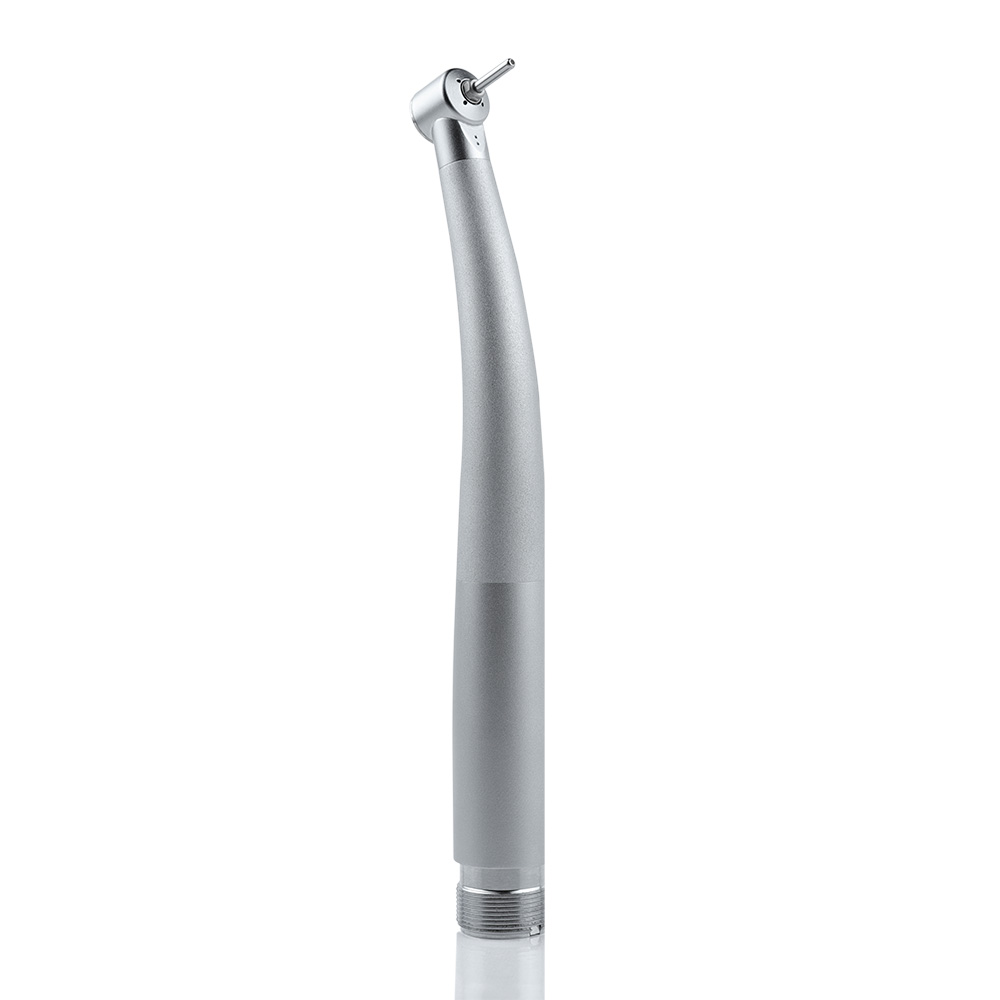

Waldent Nano Airotor (W-116)

Description

Waldent air rotor handpieces are designed to facilitate user-comfortability for the professional and a significant reduction in procedural times for their patients.
The specially designed head size with Nano head size feature and customized positioning contributes to a specialized level of visibility and maneuverability for users.
With the innovative technique, those hard to reach and hard to see places are more easily accessible, thus streamlining and shortening procedures, making it possible to achieve results with greater accuracy and precision.

INDICATION :

• Used in Dental Clinics for Root Canal treatment.
• Cavity Preparations and other treatment.

ADVANTAGE :

• Mini chuck-type handpiece.
• It has a unique appearance design and fluent outline.
• With the people-friendly design, easy for operation.
• With the best quality cartridge, easier for cleaning.
• With high-speed turbine rotation, it has better performance.
• The chucking power of the chucking needle is 20N-45N.
• It is noise-free and stable.
• Speed of handpiece no less than 390,000 rotations under working air pressure of 25-30 pressure atmosphere.
• Ceramic Bearing Handpiece.

Key Features

Features:

1)Ergonomic Design
Mini Head provides easy access to hard to reach areas
Light Weighted

2) Water Spray
Single water spray for effective cooling of bur and treating contact surface

3) Bearing
Ceramic ball bearing in the handpiece with light ensues vibration- free and quiet operation and also provide long service life

4) Operating Button & connection
High-grade material with a stylish design
Chuck-type cartridge to change bur, easy and convenient
Bordon 2-Hole connection for better compatability

5) Rust Free
Corrosion Resistant – Passivated

6) Disinfection
Autoclavable at 135℃ to avoid cross-infection

Specifications

TECHNICAL SPECIFICATIONS:

Air Pressure: Maximum 0.2~0.25 MPa (2~2.5kgf/cm2)

Minimum 0.18~0.22 MPa (1.8~2.2kgf/cm2)

LUBRICATION:

• Be sure to sufficiently lubricate the air-rotor with good quality handpiece oil before autoclaving

STERILIZATION:

• Autoclavable upto 135C

Packaging

• 1 x Waldent Nano Airotor.
• 1 x Key
• Instruction Manual.

Directions for Use

Preparation:

• Ensure the handpiece is properly sterilized before use, following the manufacturer’s instructions for autoclaving.
• Check that the handpiece and bur are in good condition with no visible damage.

Installation:

• Insert the desired bur into the chuck-type cartridge securely.
• Connect the handpiece to the dental unit using the Bordon 2-Hole connection.

Water Supply:

• Connect the water supply to the handpiece, ensuring proper flow for effective cooling during procedures.

Positioning:

• Adjust the handpiece for optimal ergonomic positioning.
• Activate the water spray to ensure effective cooling of the bur during operation.

Operation:

• Press the operating button to activate the handpiece.
• Use the handpiece to access and treat the targeted areas, taking advantage of the mini head design for precision.

Post-Procedure:

• After completing the procedure, deactivate the handpiece.
• Disconnect the handpiece from the dental unit.
• Clean the handpiece according to the manufacturer’s guidelines, taking care to remove any debris.

Sterilization:

• Autoclave the handpiece at the recommended temperature (e.g., 135℃) for the specified duration to ensure proper sterilization.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer/Importer warranty of 3 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
