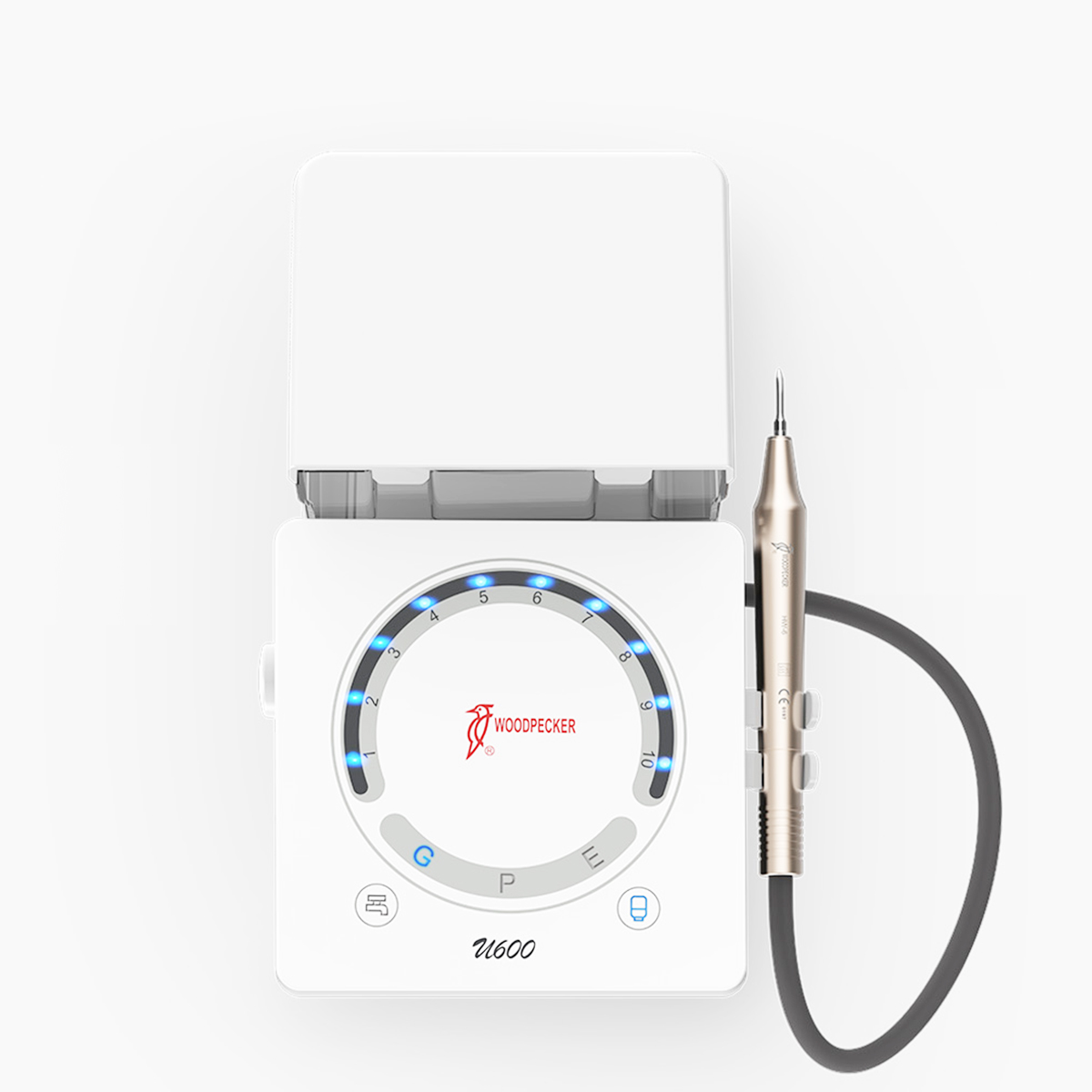

Woodpecker U-600 LED Ultrasonic Scaler

Description

Woodpecker U-600 LED Ultrasonic Scaler, a pinnacle of dental innovation, is designed to elevate precision and comfort in dental care. This advanced scaler incorporates optimized piezoelectric technology, delivering controlled vibrations for efficient removal of calculus and plaque. Its integrated LED illumination enhances visibility, ensuring accurate targeting of treatment areas. The automatic frequency adjustment system adapts to varying resistance, providing consistent power output for uniform scaling. With a diverse selection of high-quality scaling tips, the U-600 caters to various clinical needs. Its ergonomic design reduces hand fatigue, promoting practitioner comfort and control during extended procedures. The U-600 enables precision-driven treatments, enhanced visibility, and efficient performance, making it an indispensable tool for modern dental practices.

Benefits of the Woodpecker U-600 LED Ultrasonic Scaler:

• Precision and Accuracy: The U-600 ensures precise removal of calculus and plaque with its optimized piezoelectric technology and integrated LED illumination, enhancing treatment outcomes.
• Enhanced Visibility: Integrated LED illumination provides clear visibility of treatment areas, enabling precise targeting of calculus and plaque even in challenging oral anatomies.
• Efficient Scaling: Automatic frequency adjustment adapts to different tooth surfaces, ensuring consistent power output and efficient scaling with minimal effort.
• Versatility: Comes with a range of high-quality scaling tips, catering to diverse clinical needs and allowing practitioners to perform a variety of procedures with optimal efficacy.
• Practitioner Comfort: Ergonomic design minimizes hand fatigue during extended procedures, supporting sustained accuracy and comfort for practitioners.
• Patient Comfort: Gentle yet effective scaling reduces discomfort for patients, contributing to a positive dental experience.
• Ease of Use: User-friendly features such as touch panel controls and intuitive operation make the U-600 easy to operate and integrate into daily practice.
• Durability and Safety: Constructed with high-quality materials, the U-600 ensures durability and meets safety standards, providing reliability in clinical settings.

Key Features

• Optimized Piezoelectric Technology: Delivers controlled vibrations for precise calculus and plaque removal.
• Integrated LED Illumination: Enhances visibility for accurate treatment targeting.
• Automatic Frequency Adjustment: Adapts to varying resistance for consistent power output.
• Diverse Scaling Tips: Includes a selection of high-quality tips for versatile clinical applications.
• Ergonomic Design: Lightweight and balanced for reduced hand fatigue during extended use.
• User-Friendly Touch Panel: Allows intuitive operation and adjustment of water supply and power settings.
• High-Quality Construction: Ensures durability and reliability in clinical environments.
• Safety Features: Class II equipment with Type BF applied part, ensuring electrical safety.
• Efficient Water Management: Features automatic water supply and easy-to-adjust water control knob.
• Compact and Portable: Designed for ease of movement and integration into dental practice setups.

Specifications

• Main Unit Input: 220-240V~ 50Hz/60Hz 150mA
• Output Primary Tip Vibration Excursion: ≤90μm
• Output Half-Excursion Force: <2N
• Output Tip Vibration Frequency: 28kHz ± 3kHz
• Output Power: 3W to 20W
• Main Unit Fuse: T0.5AL 250V
• Water Pressure: 0.01MPa to 0.5MPa
• Weight of Main Unit: 1.8kg
• Operating Mode: Continuous operation
• Type of Protection Against Electric Shock: Class II equipment
• Degree of Protection Against Electric Shock: Type BF applied part
• Applied Part of the Equipment: Handpiece and tip
• Degree of Protection Against Harmful Ingress of Water: Ordinary equipment, foot switch is drip-proof (IPX1)
• Safety in the Presence of Flammable Anesthetic Mixture: Not suitable for use in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide

Packaging

• 1 x Main Unit,
• 1 x Detachable handpiece
• 1 x Power cord
• 1 x Foot switch
• 1 x Torque wrench
• 1 x Endo wrench
• 1 x Water pipe
• 1 x Quick connector for water
• 1 x Waterproof “O” ring
• 1 x Bottle sealed ring
• 1 x Water bottle ( 700ml )
• 1 x LED lamp
• Scaling tips G2x1, G12x1, E60x1, E62x1,

Directions for Use

• Setup and Preparation:
• • Ensure all parts and accessories are present as per the packing list.
  • Place the main unit on a stable, flat surface accessible to the operator.
  • Connect the unit to a suitable power source (220-240V~ 50Hz/60Hz).

• Water Supply Setup:

  • Adjust the water control knob to the maximum setting without overtightening to avoid damage.
  • Connect one end of the water pipe to the water inlet on the unit and the other end to a clean water source.

• Foot Switch and Handpiece Setup:

  • Insert the foot switch plug into its socket on the main unit.
  • Attach the handpiece securely to the main unit.

• Power On and Operation:

  • Switch on the power using the designated switch on the main unit.
  • The power indicator should light up, indicating readiness.
  • Use the touch panel to adjust water supply modes and power settings as required.

• Scaling Tip Installation:

  • Select an appropriate scaling tip based on the treatment requirement.
  • Use the provided wrench to securely attach the scaling tip to the handpiece.

• Starting Treatment:

  • Under normal operation, lightly touch the tooth surface with the vibrating tip in a controlled back-and-forth motion.
  • Adjust the vibrating intensity to a suitable level, typically starting from the middle setting.
  • Maintain a continuous water flow to cool the handpiece and flush debris.

• Post-Treatment Procedure:

  • After treatment, continue running the unit with water supply for 30 seconds to clean the handpiece and tip.
  • Remove and sterilize the scaling tip according to standard sterilization protocols.
  • Turn off the power switch and unplug the unit from the power source.

• Maintenance and Cleaning:

  • Perform daily cleaning and disinfection of the water pipe and handpiece using recommended procedures.
  • Use the “Cleaning mode” periodically to ensure internal cleanliness and prevent buildup of residues.

• Storage and Safety:

  • Store the scaler in a cool, dry place away from direct sunlight and extreme temperatures.
  • Avoid storing with combustible, poisonous, or explosive materials.
  • Ensure the equipment is disconnected from power when not in use and periodically run with water to maintain functionality.

• Safety Considerations:

  • Adhere to contraindications, such as avoiding use on patients with hemophilia or pacemakers.
  • Use the scaler cautiously on patients with heart conditions, during pregnancy, and with children.
  • Handle the scaler with care during transportation to prevent damage.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker
