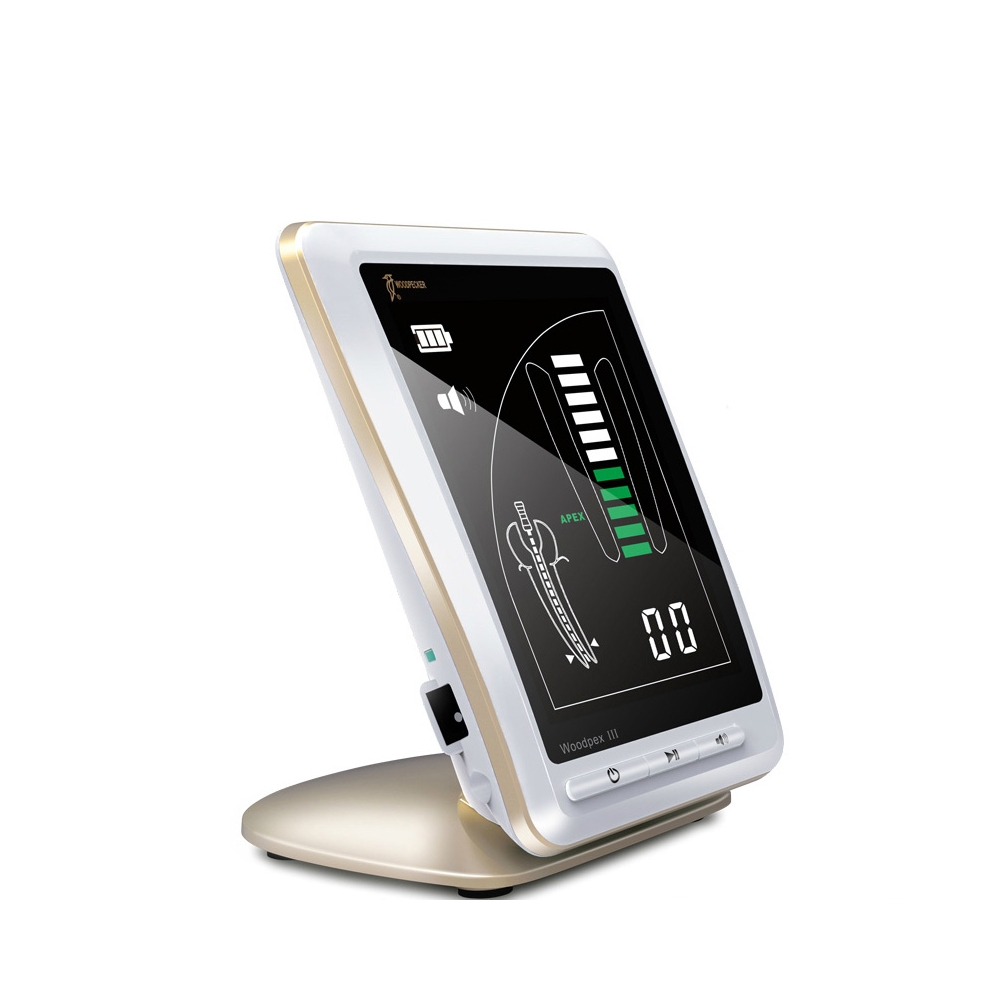

Woodpecker Apex Locator Woodpex III

Description

The Apex Locator Woodpex III L is an endodontic treatment by accurately measures the length of the apical teeth. The device offers several features and specifications that contribute to its effectiveness and ease of use The Apex Locator Woodpex III L is is equipped with a clear and bright LCD screen, providing a clear image and displaying the trajectory of the file in different colors, ensuring easy visualization. It utilizes advanced multiple-frequency network impedance measurement technology, along with automatic calibration, to ensure precise and accurate measurements.
One of the notable features of the Apex Locator Woodpex III L is the ability to autoclave its accessories, such as the measuring wire, file clip, and lip hook, under high temperature and pressure. This feature effectively prevents cross-infection and enhances the device’s hygiene.

The device operates on a rechargeable battery, eliminating the need for frequent battery replacements. This ensures convenience and uninterrupted use during dental procedures. The main unit of the Apex Locator Woodpex III L features various indicators, including power and sound indicators, a length measurement indicator, and a power on/off button. The main accessories include the measuring wire, file clip, lip hook, measuring file, battery tester, and emulsion of enlarging apex.

The intended use of the Woodpex III includes the measurement of various dental conditions such as pulpitis, pulp necrosis, periapical periodontitis, tooth length before restoration of post crown, as well as tooth length of transplantation and retransplantation.

Please Note: Accuracy in readings for apex locators is claimed to be 97.7% accurate. Readings may vary from the conventional method of working length determination (radiographic method) & may fluctuate in cases where the precautions (recommended in user manual) are not followed

Key Features

• Sound changes indicate file position in the root canal.
• Measurement independent of file thickness.
• Clear bright LCD display with color-coded trajectory indication.
• Advanced multiple frequency network impedance measurement for accurate results.
• Autoclavable accessories for effective cross-infection prevention.
• Rechargeable battery for convenient and cost-effective use.
• Folding design for easy adjustment of visual angle.

Specifications

• Battery: 3.7V/750mAh
• Adapter: 100V – 240V 501-Iz/60Hz
• Power consumption: 50.5W
• Screen: 4.5″ LCD
• Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
• Environment temperature: +5°C to +40:C
• Relative humidity: 580%
• Atmosphere pressure: 50kPa to 106kPa
• Main unit net weight: 336g
• Main unit gross weight: 360g Unit
• Dimension: 195mm x 137mm x 123mm

Packaging

• 1 X Main Unit
• 1 X Measuring Wire
• 2 X File Clip
• 2 X Lip Hook
• 2 X Measuring File
• 1 X Adapter
• 1 X Tester
• 1 X Battery
• 1 X Instruction Manual
• 1 X Qualified Certificate
• 1 X Warranty Card
• 1 X Packing List

Directions for Use

Preparation:

• Ensure the device is fully charged before use.
• Autoclave reusable accessories (measuring wire, file clip, lip hook) for hygiene.

Powering On the Device:

• Press the power button on the main unit to turn on the Woodpex III Gold.

Setting up the Measurement File:

• Attach the measuring file to the file clip securely.
• Connect the measuring wire to the file clip.

Locating the Apex:

• Isolate the tooth with a dental dam.
• Apply conductive gel to the measuring file’s tip.
• Gently insert the measuring file into the root canal until resistance is felt.
• Advance the measuring file slowly while observing the LCD screen.

Interpreting the Measurement:

• Pay attention to the length measurement indicator and color display.
• Adjust file position based on displayed colors.

Alert Function:

• Be cautious when the buzzer alert sounds (file less than 2mm from the apex).

Powering Off the Device:

• Press and hold the power button to shut down the Woodpex III Gold.

Cleaning and Storage:

• Clean accessories with a disinfectant solution after each use.
• Store the device in a clean and dry environment.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker
