Woodpecker Implant Motor Drive-X by Waldent

Description

Woodpecker Implant Motor Drive-X by Waldent is a high-performance implant motor system engineered to deliver precision, stability, and comfort during implant procedures. Equipped with an LED contra-angle, the unit ensures enhanced visibility and accuracy throughout surgery. The durable contra-angle features eight high-quality bearings for smooth rotation, reduced vibration, and long-term reliability under frequent clinical use. A powerful domestic motor provides consistent torque control with an output of up to 80 Ncm, supporting confident and controlled implant placement. The large color display offers intuitive operation with preset programs, while advanced functions such as torque maintenance, adjustable LED brightness, delayed light-off, and volume control enhance clinical efficiency. Lightweight, autoclavable components and a hands-free foot pedal make Drive-X a dependable solution for modern implantology.

Key Features

• Built-in LED provides clear illumination for improved surgical visibility
• Eight high-quality bearings ensure smooth rotation and long service life
• Stable torque delivery with minimal vibration for enhanced comfort
• Powerful motor supports torque output up to 80 Ncm
• Large color screen with easy-to-use preset programs
• Ensures consistent torque during implant procedures
• Four-roller design enables stable and continuous irrigation flow

Specifications

• Motor Type: Implant Motor

• Torque Range: 5–80 Ncm
• Motor Torque: 6.2 Ncm
• Maximum Pump Output: 110 mL/min
• LED Brightness Levels: 50% and 100%
• Main Unit Dimensions: 250 × 237 × 130 mm
• Motor Dimensions: 23.4 × 91 mm
• Motor Weight: 150 g
• Contra-Angle Weight: 88.3 g
• Contra-Angle Length: 9.5 cm
• Motor Cord Length: 204 cm
• Infusion Bottle Holder Length: 40 cm vertical, 7 cm horizontal
• Handpiece Gear Compatibility: 16:1, 20:1, 27:1
• Power Supply: AC 220V, 50/60Hz

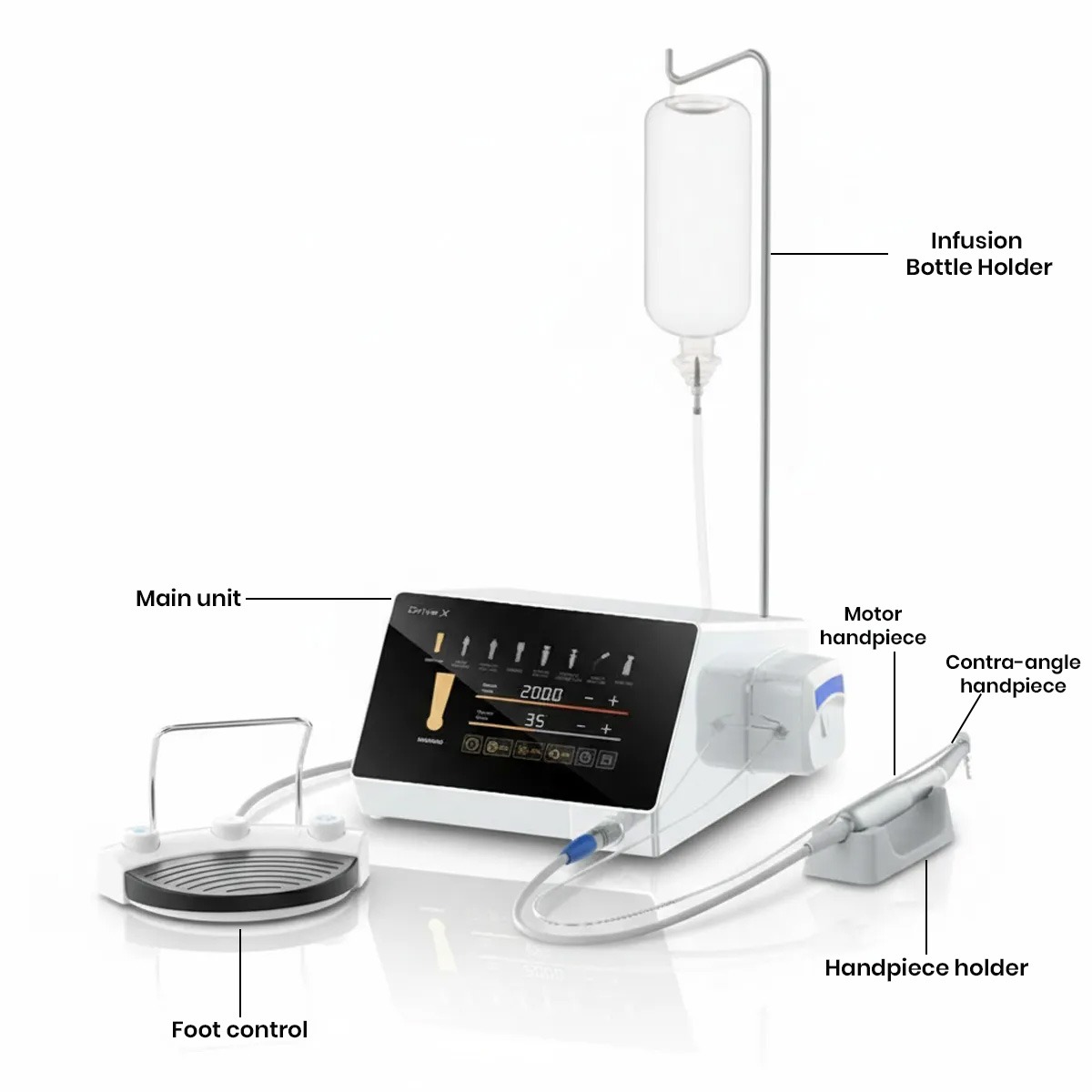

Packaging

• 1 x Main unit
• 1 x Power cord
• 1 x Handpiece holder
• 4 x Disposable water pipe
• 1 x Infusion bottle holder
• 2 x Motor disinfection plug
• 10 x Pipe clamp
• 4 x 0-ring (Motor)
• 1 x Foot control
• 1 x Motor handpiece
• 1 x Contra-angle kit
• 2 x Spare fuse
• 1 x Instruction manual
• 1 x Qualified certificate

Directions for Use

Preparation

• Ensure the implant motor unit is placed on a stable surface
• Connect the motor, contra-angle, irrigation tubing, and foot pedal securely

Setup

• Switch on the unit using the power button
• Select the appropriate preset program from the color display
• Adjust torque, speed, LED brightness, and volume settings as required

Operation

• Position the LED contra-angle at the surgical site for optimal visibility
• Operate the motor using the foot pedal for hands-free control
• Ensure continuous irrigation through the peristaltic pump during drilling

Post Procedure

• Allow LED delayed-off function to assist with final inspection
• Switch off the unit after completing the procedure

Cleaning & Sterilization

• Detach and autoclave the contra-angle following standard sterilization protocols
• Wipe the main unit with a disinfectant cloth after use

Additional Information

Country of Origin: PRC

Manufacturer:
Gullin Kevin Peter Technology Co., Ltd.
North Side of Linsu Rd., Lingui Town, Lingui Dist.,
Gullin, Guangxi 541100, P.R. PRC

Packer:
Gullin Kevin Peter Technology Co., Ltd.
North Side of Linsu Rd., Lingui Town, Lingui Dist.,
Gullin, Guangxi 541100, P.R. PRC

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha,
Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.
