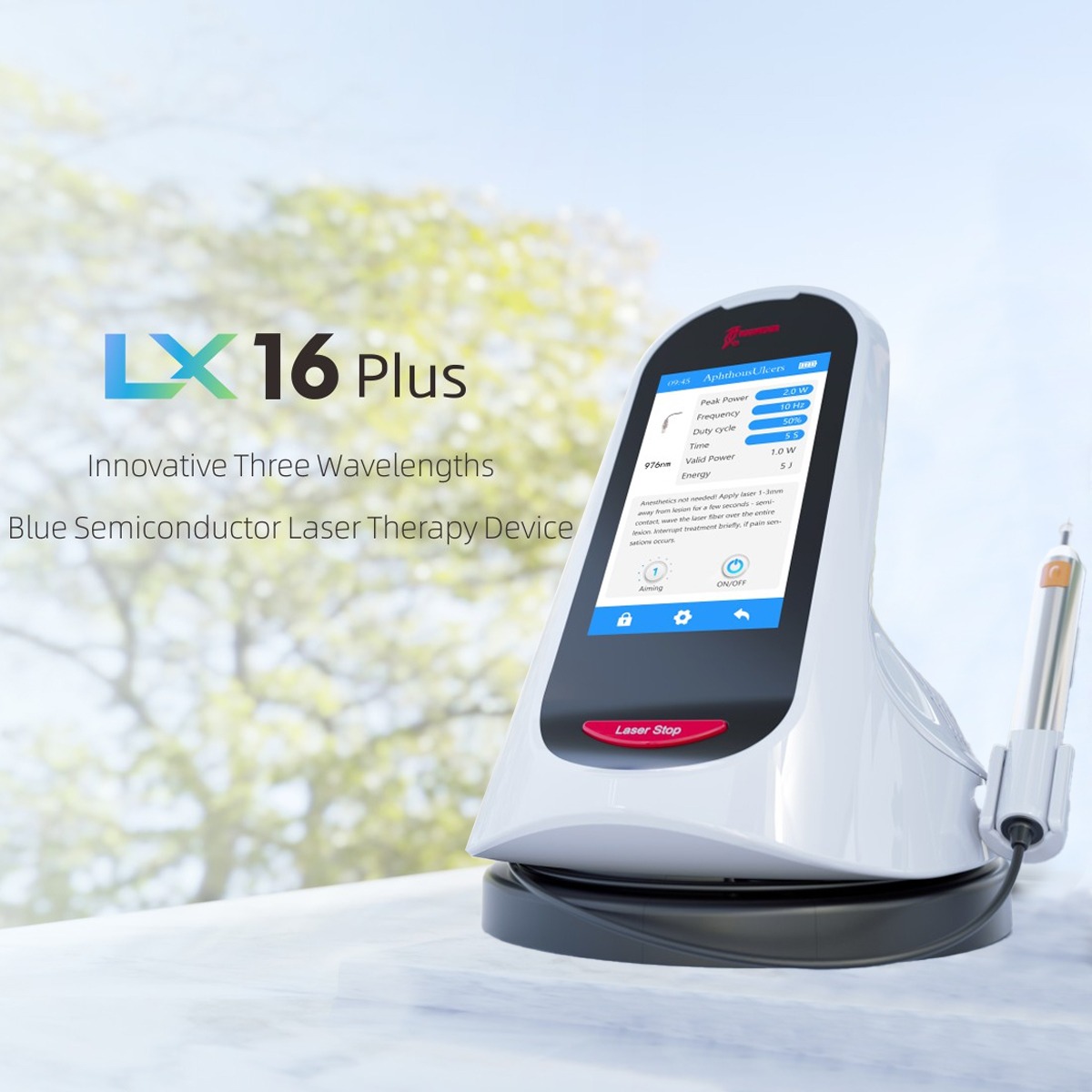

Woodpecker LX16 Plus Dental Diode Laser

Description

Woodpecker LX16 Plus Dental Diode Laser represents a pinnacle of technological innovation in oral soft tissue surgery and therapy. Boasting a user-friendly capacitive touch screen interface, it ensures intuitive operation and clear display, facilitating efficient treatment procedures. Equipped with a long-lasting rechargeable lithium battery, this device guarantees extended endurance during surgeries and therapies. Its hygienic design, with autoclavable handpiece sleeves and fiber tips, mitigates the risk of cross-infection, maintaining a sterile treatment environment. With safety mechanisms such as automatic shutdown after periods of inactivity and remote interlocking for radiation termination, the LX16 Plus prioritizes patient and practitioner safety. It offers a diverse range of treatment options, including periodontal disease management, endodontic procedures, pain therapy, and soft laser therapy. Detailed treatment protocols and parameter settings ensure precise and effective outcomes for various oral conditions, enhancing patient care and satisfaction. With its versatility, reliability, and adherence to safety standards, the Woodpecker LX16 Plus Dental Diode Laser stands as an indispensable tool for modern dental practices, revolutionizing the way oral soft tissue surgeries and therapies are performed.

Indications for the Woodpecker LX16 Plus Dental Diode Laser:

• Abscess management, including establishing a drainage path
• Frenectomy procedures for the removal of labial or sublingual tissue
• Operculectomy for soft tissue crown lengthening
• Treatment of hidden teeth, involving soft tissue crown lengthening
• Gingival troughing for crown impressions
• Perio Germ sterilization of pockets
• Implant Uncovery for exposure of implants during the second stage
• Periimplantitis sterilization of implants
• Endo. Germ canal sterilization for root canal therapy
• Pulpotomy adjunct to root canal therapy
• Gangrene Germ sterilization of gangrene tissue
• Germ Pain Therapy for relieving pain in peri-tissue
• Aphthous Ulcer Care for treating aphthous ulcers
• Hemostasis for achieving hemostasis
• Wound healing promotion

Key Features

• Capacitive touch screen for easy operation
• Built-in rechargeable lithium battery
• Autoclavable handpiece sleeve for hygiene
• Preset treatment procedures for ease
• Automatic shutdown after inactivity
• Remote interlocking for safety
• Diverse treatment options for oral diseases

Specifications

• Power adapter input：100-240Vac，50/60Hz，2.5A
• Main unit input：15V 6.0A

Wavelength and power:

• 976± 20nm ： 0.2W-4W(CW), Peak Power 5W chopped 1Hz to 20KHz
• chopped mode :5us – 0.9S
• 650± 20nm ： 25mW-200mW(CW)
• 450± 20nm ： 0.2W-3W(CW) chopped 1Hz to 20KHz
• chopped mode : 5us – 0.9S

Laser classification:

• 976 nm: Class 4
• 650 nm: Class 2
• 450 nm: Class 4
• Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
• Aiming beam: 650 ± 20 nm /Pmax<5mW
• Divergence:12.7°(According to IEC 60825-1: 2014)
• Rechargeable battery: 11.1V/2600mAh x2 (57.7Wh)
• Time consumption for charging: about 4h (5 hours for first charging)
• Diverging half angle: 0.22 mad/ 12.6 °
• size: 22 cm x 20cm x 23cm
• Weight: 1.5kg

Packaging

• 1 x Laser
• 1 x Handleshell
• 2 x MF2-14
• 1 x MF2-20
• 3 x MF3-4

• 3 x MF3-9
• 3 x MF4-4
• 3 x MF4-9
• 3 x Goggles
• 1 x DT15-Tip
• 1 x DT20-Tip
• 1 x DT30-Tip
• 1 x BT8-Tip
• 1 x Whitening-Tip
• 1 x Bending tool
• 1 x Articulating paper
• 1 x Cutting Pen
• 1 x Remote con trol interlock
• 1 x Adapter
• 1 x Foot Switch
• 1 x Instruction manual

Directions for Use

Here are the directions for using the Woodpecker LX16 Plus Dental Diode Laser:

Unboxing and Setup:

• Carefully remove all parts from the packaging, ensuring no damage occurs.
• Install the device in the designated area with ample space around it to prevent damage to the fiber handpiece wire.
• Ensure there are no obstructions blocking the device’s air outlet.

Installation of Power Adapter:

• Connect the provided power adapter and power supply cable as indicated in the instructions.

Installation and Removal of Dustproof Plug:

• Remove the dustproof plug on the handpiece counterclockwise when ready to use.
• Tighten the dustproof plug clockwise when the device is not in use to prevent dust from entering the handpiece tip.

Installation and Removal of Handpiece Sleeve:

• Carefully insert the handpiece sleeve into the handpiece, ensuring it is securely in place.
• Press the handpiece switch to remove the sleeve when disassembling.

Storage of Handpiece Tail Cord:

• Handle the handpiece tail cord delicately to avoid damage.
• Store the cord as shown in the instructions to prevent bending or squeezing.

Operation:

• Turn on the device by pressing the “ON/OFF” button at the back.
• Enter the user password (initial password: “8888”) on the display screen and press OK.
• Select a preset program or customize treatment parameters as needed.

Laser Emission:

• Ensure the aiming beam is working properly before each treatment.
• Press the pedal to observe the indicator light and initiate laser emission.
• Monitor the device during laser emission and observe safety protocols.

Charging and Control Modes:

• Charge the device using the provided power adapter.
• Switch between footswitch control mode and handpiece control mode as needed.
• Pair the footswitch with the main unit if necessary.

Troubleshooting:

• Refer to the troubleshooting guide provided if encountering operational issues.
• Contact the dealer or manufacturer for assistance if problems persist.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker
