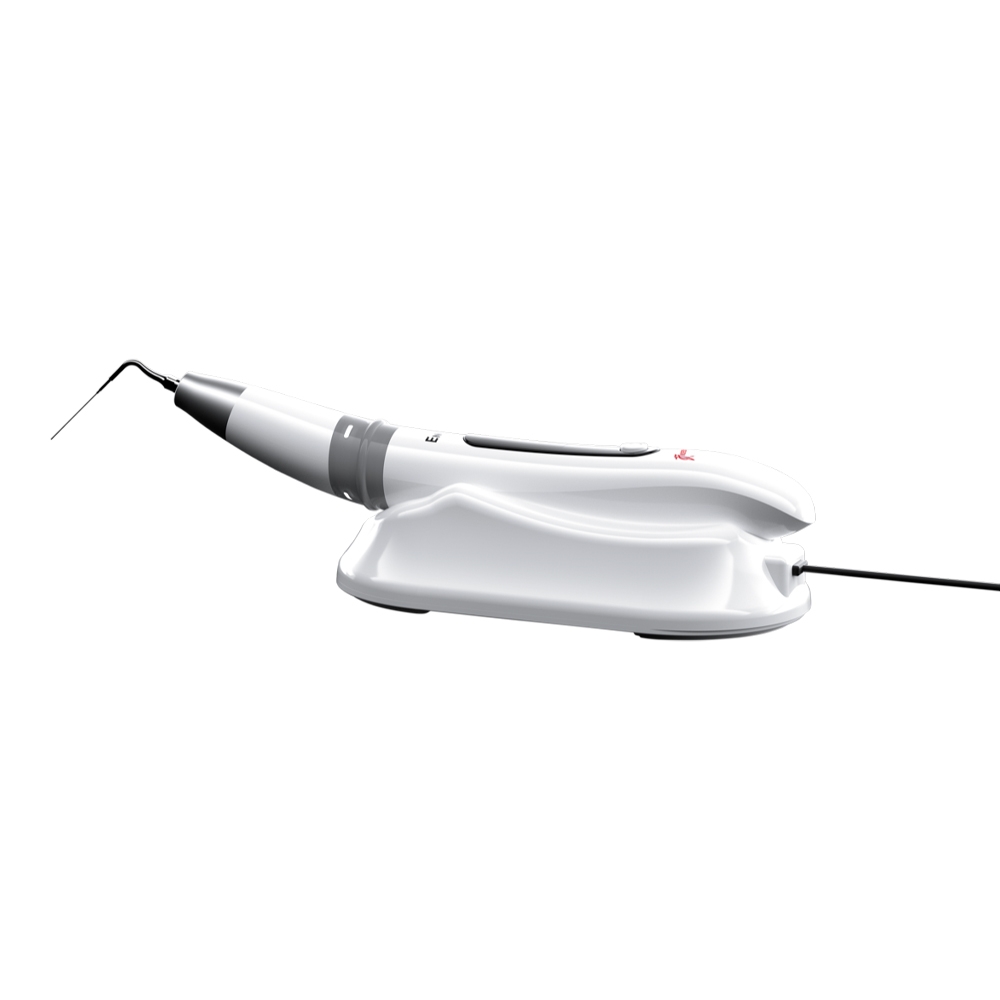

Woodpecker Endo 3 Ultrasonic Endo Activator

Description

Woodpecker Endo 3 Ultrasonic Endo Activator

Woodpecker Endo 3 Ultrasonic Endo Activator, an intelligent wireless handpiece designed for efficient irrigation activation in root canal procedures. This upgraded device replaces the Endo 1, offering enhanced features for optimal performance. The Endo 3 utilizes high-frequency ultrasonic vibrations generated by an oscillating circuit and transmitted through the ultrasonic transducer. These vibrations, generated by the inverse piezoelectric effect, induce resonance in the tip. By deepening into the root canal, the ultrasonic waves create carious effects, driving the irrigation solution and producing ultrasonic flow and cavitation. This effectively irrigates stains and debris within the root canal, promoting thorough debridement and disinfection. Endo 3 featuring three power modes (E1, E2, and E3), & allows precise adjustment of power levels from low to high according to the specific treatment requirements. Additionally, it offers three operational modes: shutdown, hot standby (for power and time adjustments), and irrigation mode. This device incorporates four-time modes, allowing for customizable activation durations of 10, 15, 20 seconds, or 10 minutes. With a larger LCD screen, dentists can easily observe and monitor the device settings during procedures. Experience efficient and effective irrigation activation with the Endo 3 Ultrasonic Endo Activator—the advanced solution for optimal root canal treatment outcomes.

Key Features

• Wireless and Ergonomic Design: The Endo 3 Ultrasonic Endo Activator is a wireless handpiece that provides ergonomic comfort and ease of use during root canal procedures.
• High-Frequency Ultrasonic Vibration: It emits high-frequency ultrasonic vibrations to effectively activate irrigation in the root canal, aiding in debridement and disinfection.
• Three Power Modes: The device offers three power modes (E1, E2, and E3) with adjustable power levels, allowing dentists to select the appropriate power setting for each treatment.
• Four Time Modes: The Endo 3 provides four customizable time modes, enabling dentists to set the duration of ultrasonic activation according to the specific requirements of the procedure.
• Larger LCD Screen: It features a larger LCD screen for clear and easy viewing, facilitating convenient monitoring of device settings during treatment.
• Adjustable Head: The handpiece has an adjustable head that can be rotated to the desired position, enhancing access and maneuverability in the oral cavity.
• Multi-Mode Setting: The handpiece comes with ring switch button & smart microcomputer control.

Specifications

Tips Specifications :

• E71 – Smooth tip , 30#, 4.2 %taper, 18mm
• E72 – Smooth tip , 30#, 3.6 %taper, 21mm
• E73 – Smooth tip , 25#, 3.1 %taper, 18mm
• E74 – Smooth tip , 25#, 3.3 %taper, 21mm

Technical Parameters :

Dimensions : 173.8mmx25.8mmx35.8mm

Net Weight : 78gm

Rechargeable Lithium Battery :

• Battery mode: 14500
• Nominal voltage: 3.6V
• Capacity: 750mAh

Power Adaptor :

• Input: 100V-240V 50Hz/60Hz 0.4A MAX
• Output: DC 5V/1A
• Build-in fuse: T1AL 250V

Working Parameters :

• Output tip vibration frequency : 40KHz±10KHz

Relative Humidity at 30% – 75%

Atmospheric Pressure : 70kPa – 106kPa

Packaging

• 1 x Main Unit
• 1 x Power Adaptor
• 1 x Pedestal Charger
• 2 x Scaling Tip E96
• 2 x Scaling Tip E99
• 1 x Scaling Tip E70
• 10 x Scaling Tip E71
• 3 x Silicone Sleeves
• 1 x Torque Wrench
• 1 x Disposable Isolation Sleeve
• 1 x Instruction Manual
• 1 x Qualified Certification
• 1 x Packing List

Directions for Use

• Prepare the Device: Ensure that the Endo 3 is fully charged and the handpiece is properly connected to the base unit.
• Select the Power Mode: Choose the appropriate power mode (E1, E2, or E3) based on the treatment requirements. Start with the lowest power mode and adjust as needed.
• Choose the Time Mode: Select the desired time mode (10 seconds, 15 seconds, 20 seconds, or 10 minutes) to determine the duration of ultrasonic activation during the procedure.
• Attach the Tip: Select the autoclavable tip that suits the specific treatment needs and attach it securely to the handpiece.
• Position the Handpiece: Adjust the head of the handpiece to the desired position for optimal access to the root canal.
• Activate Irrigation: Activate the ultrasonic vibration by pressing the appropriate button or switch on the device. Gently place the activated tip into the root canal, allowing the ultrasonic vibrations to facilitate irrigation and aid in the removal of stains and debris.
• Monitor and Adjust: Continuously monitor the progress of the procedure and adjust the power level and time duration if necessary to achieve optimal results.
• Clean and Sterilize: After use, detach the tip and thoroughly clean and sterilize it according to recommended protocols. Follow proper infection control procedures for the handpiece and base unit.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker
