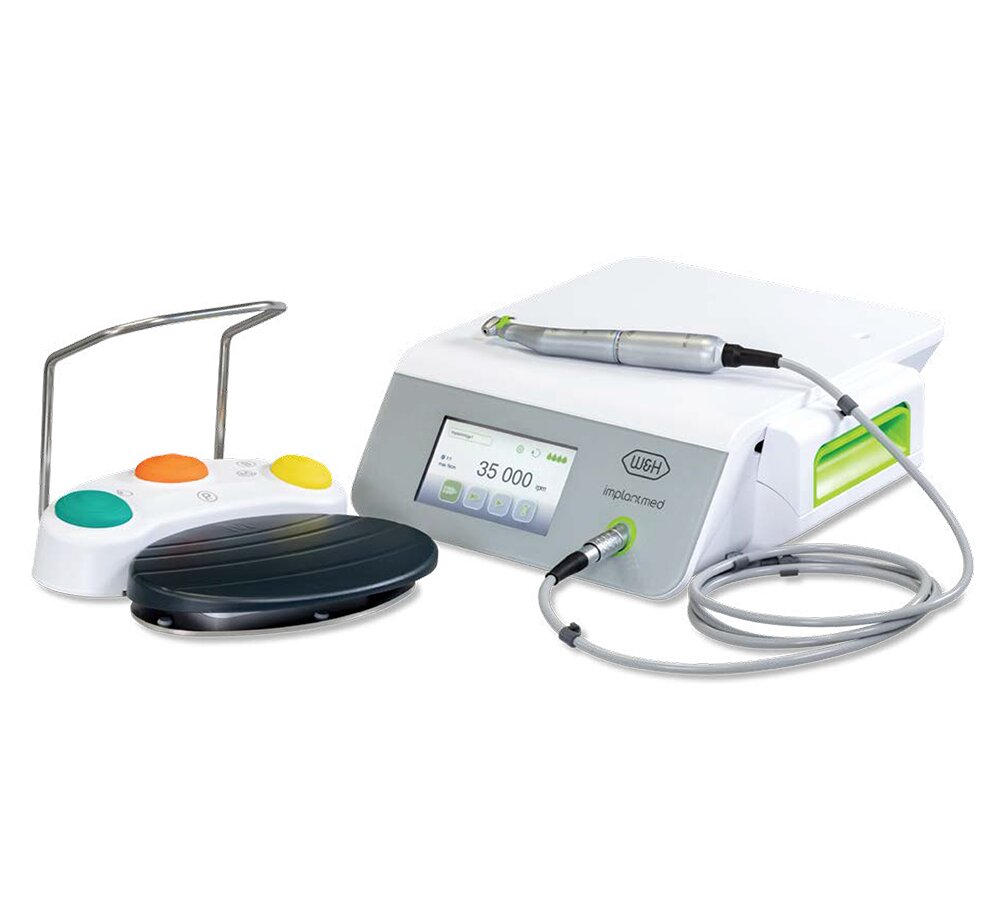

W&H Implantmed Plus Surgical Complete Unit

Description

Implantmed excels by virtue of its ease of operation, powerful motor and automatic thread cutter function.

The logically designed operating concept supports implantologists and ensures all programs can be set up easily, by pressing the buttons on the unit or by operating the foot control.

Powerful motor for implantology:-

• With this powerful motor even difficult implantological procedures no longer demand great strength.
• A motor torque of 5.5 Ncm and a motor speed range of 300 up to 40,000 rpm make light work of tough procedures.
• The automatic torque control at the rotary instrument, which can be set on the Implantmed unit at between 5 and 70 Ncm, ensures it is safe in operation.

Ease of operation:-

• Ease of use is the major feature.
• You can set up all the steps for an implantation without difficulty by pressing the plus and minus buttons on the unit or by operating the foot control.
• The set parameters are clearly visible on the large display and are easy – to – read.

Automatic thread cutter function:-

• The thread cutter function, which is integrated in Program 5, supports you when inserting implants in hard bone.
• Cutting a thread before screwing in an implant prevents excessive compression of the bone and promotes stress – free healing of the implant.

Key Features

• Easy to use
• Powerful motor with 5.5 Ncm torque
• Wide speed range: 300 up to 40,000 rpm at the motor
• Precise torque limitation: 5 to 70 Ncm
• Automatic thread cutter function
• Motor with cable, thermo washer disinfectable and sterilizable

Specifications

• Mains voltage: 230 V
• Permissible voltage fluctuation: 220 – 240 V
• Rated current: 0.3 – 0.8 A
• Frequency: 50 / 60 Hz
• Max. mechanical output power: 80 W
• Max. torque at the motor: 6.2 Ncm
• Motor speed range in the nominal voltage range: 200 – 40,000 min -1
• Height / width / depth: 100 x 262 x 291 mm
• Coolant flow rate at 100%: min. 90 ml/min
• Weight in kg: 3.5

Packaging

• Control unit
• Motor with 1.8 m cable incl. 5 clips
• Foot control S-N1
• Stand,
• Motor support
• Mains cable
• 2 locking pins and
• 3 disposable irrigation tubins

Warranty & Service

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
