Waldent Surgical Bone Saw Handpiece – Sagittal (Front & Back Cutting Motion) | DGZ-S

Description

The Waldent Surgical Bone Saw Straight Handpiece – Sagittal (DGZ-S) is a high-precision surgical instrument designed for controlled bone cutting and separation procedures in oral, maxillofacial, craniofacial, and orthopedic surgeries. Utilizing a sagittal cutting motion, the blade moves parallel to the handpiece axis, enabling accurate osteotomies and efficient bone contouring. The handpiece features a standard E-type connection for compatibility with surgical micromotors and operates with low vibration and exceptionally quiet performance for enhanced surgical comfort. Its robust construction ensures durability under repeated sterilization cycles, while the detachable design allows thorough cleaning and maintenance. Compatible with multiple sagittal saw blades, the DGZ-S delivers reliable cutting efficiency and precision in demanding surgical environments.

Key Indications

• Le Fort I Osteotomy — lateral maxillary wall cuts in orthognathic surgery
• BSSO Mandibular Split — medial and buccal cortical cuts of the ramus
• Genioplasty — horizontal chin osteotomy for advancement or reduction
• Segmental Osteotomies — maxillary and mandibular segmental cuts
• Distraction Osteogenesis — corticotomy cuts for distraction devices
• Ridge Splitting — expansion of narrow alveolar ridges pre-implant
• Alveolar Corticotomies — for accelerated orthodontics (Wilckodontics)
• Zygomatic Osteotomies — facial trauma reconstruction cuts

Why Choose It

• Long, straight cuts with excellent surgical visibility
• Easy angulation control — blade parallel to handpiece
• Reaches curved anatomy — ideal for mandibular ramus access
• Precise depth control — surgeon feels cortical breakthrough
• Zero lateral wander — blade stays true to the cut line

Key Features

• Sagittal motion provides precise and controlled bone cutting
• Cutting direction remains parallel to the handpiece axis
• Ideal for osteotomies and bone contouring procedures
• Standard E-type connection for surgical motor compatibility
• Low vibration enhances operator control
• Quiet operation improves surgical comfort
• Durable surgical-grade construction
• Supports multiple sagittal blade configurations
• Easy blade replacement system
• Fully dismantlable for effective cleaning
• Autoclavable for reliable infection control
• Suitable for repeated surgical sterilization cycles
• Consistent cutting performance during demanding procedures

Specifications

• Product Type: Surgical Bone Saw Straight Handpiece
• Model: DGZ-S
• Category: Surgical Handpiece
• Motion Type: Sagittal Motion
• Working Direction: Cutting Direction Parallel to the Axis
• Connection Type: E-Type Coupling
• Transmission Ratio: 3.2:1
• Oscillation Angle: 3°
• Frequency: 12,500 Strokes/Minute
• Maximum Drive Speed: 40,000 rpm (min⁻¹)
• Compatible Blade Widths: 6 mm, 10 mm
• Sterilization Method: Steam Autoclavable
• Construction: Surgical-Grade Metal Body

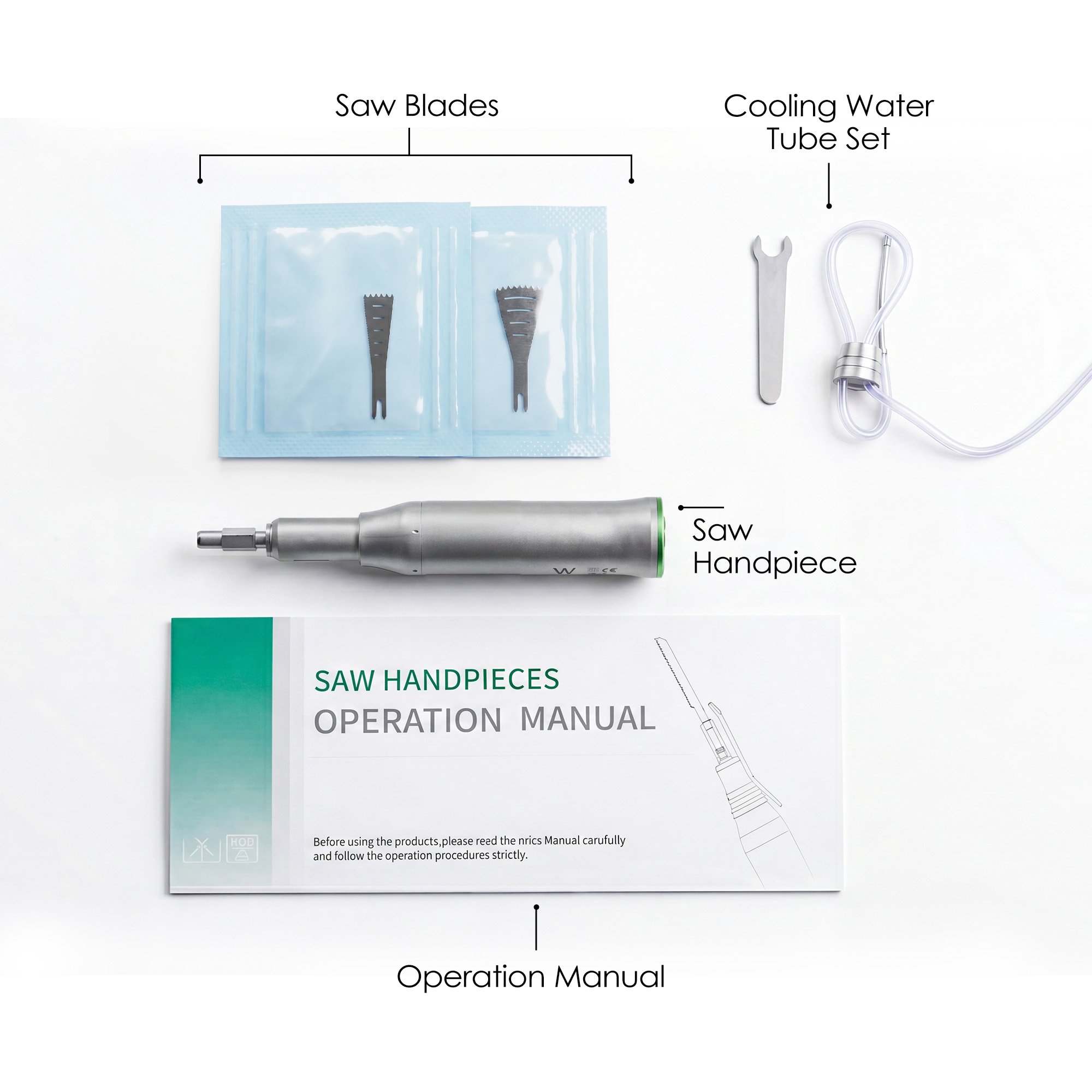

Packaging

• 1x Straight Handpiece
• 1x Wrench
• 3x Blades
• 1x Irrigation tubing
• 1x Manual

Directions for Use

• Attach the handpiece securely to an E-type surgical micromotor.
• Ensure the motor is stationary before installation.
• Select the appropriate sagittal saw blade (6 mm or 10 mm).
• Loosen the clamping screw using the supplied spanner.
• Insert the blade fully until it reaches the stop position.
• Tighten the clamping screw securely.
• Verify complete blade engagement before use.
• Perform a test run to ensure proper operation.
• Operate with adequate irrigation during bone cutting procedures.
• Avoid excessive force and overheating at the surgical site.
• Remove the blade only after the handpiece has completely stopped.
• Clean, disinfect, lubricate, and inspect the handpiece after use.
