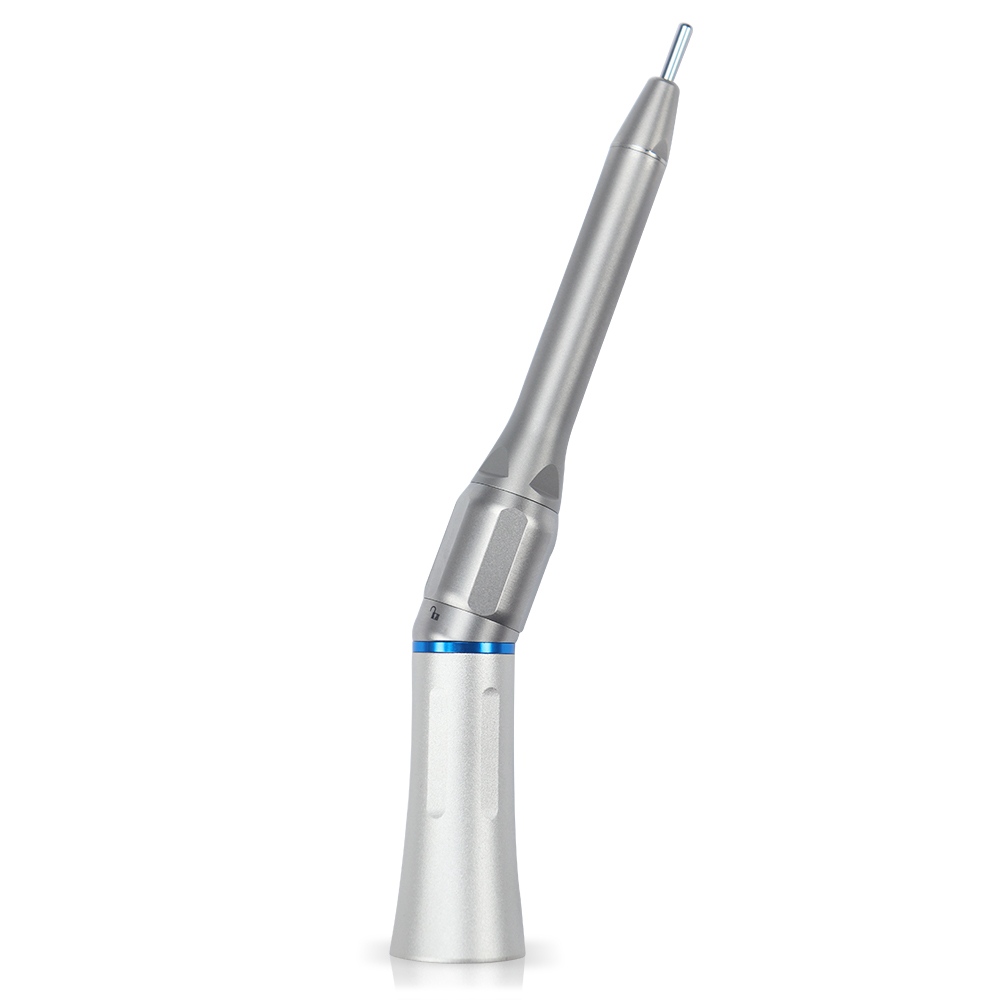

Waldent Surgical 20° Handpiece 92mm (W-147)

Description

The surgical straight handpieces have been specially designed for oral and maxillofacial surgery and implantology. The high-quality stainless steel with special coating makes them particularly robust.

1:1 handpiece, short,straight surgical handpiece with spray nozzle and quick release locking mechanism for instruments shaft Ø of 2.35mm.

Key Features

• Precision design, transmission gear is made of high strength Stainless steel
• Perfect Stable and reliable performance
• Adopted Imported British Bearing, Smooth rotation, low noise, long life
• The international standard interface

Specifications

• Gear Ratio: 1:1
• Bur Type: 2.35mm bur
• Speed: RPM 40,000
• Water Spray Type: External
• Material: Stainless steel
• Light Way: Without Light
• Rotating Speed: Low-Speed Handpiece
• Head Diameter: Middle Head
• Connection: Connect to E-Type Motors
• Air pressure: 0.2 Mpa
• Spray: External spray
• Weight: 160g

Packaging

• 1 x Surgical Straight Handpiece

Directions for Use

• Turn the chuck ring in clockwise direction until a voice “click”.
• Insert the bur into the chuck and then turn the chuck ring in anticlockwise direction to lock the bur.
• Try to pull the bur to ensure the bur is fixed.
• Put the external water injection nozzle onto the handpiece and then insert the water pipe to rear end of the nozzle.

Additional Information

• Country of Origin: Made in PRC
