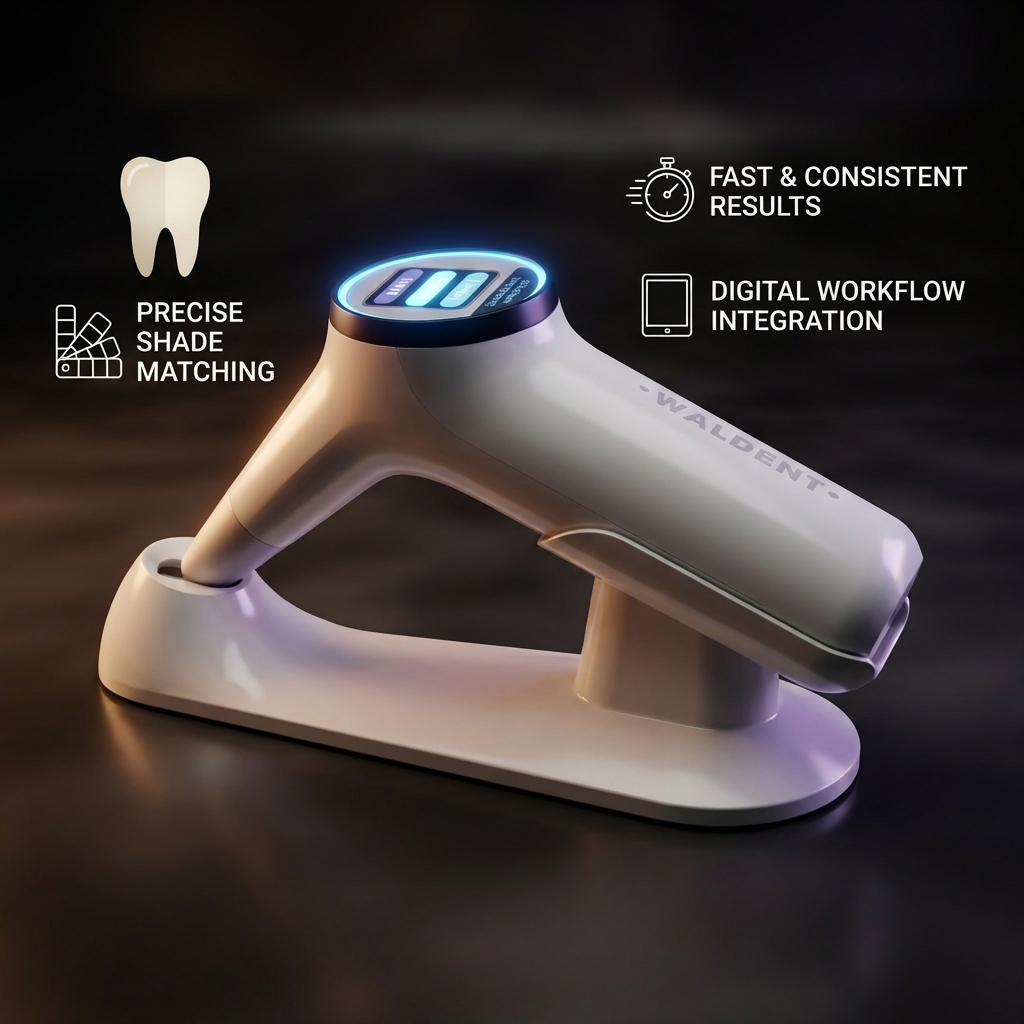

Waldent ShadePro Digital Shade Determination Device

Description

Waldent ShadePro Digital Shade Determination Device is an advanced tool designed for precise and reliable color matching of natural teeth in dental practices. Utilizing both the VITA 3D-MASTER and VITA Classic (A1-D4) color systems, it delivers highly accurate shade identification, ensuring optimal esthetic outcomes for restorative procedures. The device features intuitive operation, quick measurement, and dual display rows for comprehensive shade analysis. Its robust design supports operation in diverse clinical environments, with a user-friendly interface and clear color-coded indicators for result interpretation. The ShadePro is equipped with a long-lasting rechargeable battery, providing over 5000 measurements per charge, and supports easy disinfection for safe, hygienic use. With fast white balance calibration and reliable performance across a wide range of temperatures and humidity levels, the Waldent ShadePro is an essential addition to any modern dental clinic, streamlining shade determination and enhancing

Key Features

• Dual Shade Systems: Supports both VITA 3D-MASTER and VITA Classic (A1-D4) color systems for comprehensive shade matching.
• High Measurement Accuracy: Provides precise and reliable color determination for natural teeth.
• Color-Coded Results: Easy-to-interpret results with green, yellow, and red indicators for similarity and accuracy.
• User-Friendly Operation: Simple one-button operation for powering on, measuring, and switching modes.
• Automatic White Balance Calibration: Ensures consistent accuracy with auto-calibration at startup.
• Multiple Measurement Modes: Intraoral mode for natural teeth and extraoral mode for shade guide teeth.
• Fast Measurement: Quick results with audible feedback (“beep”) upon completion.
• Long Battery Life: Over 5,000 measurements per full charge and quick recharging (3–4 hours).
• Hygienic Design: Probe is easy to disinfect, supporting safe clinical use.
• Clear Dual-Row Display: Shows both VITA 3D-MASTER and VITA Classic results simultaneously.
• Portable and Durable: Compact design with a sturdy carrying case for easy transport and storage.
• Auto Power Off: Energy-saving function with automatic screen and device shutdown when idle.

Specifications

• Product Model: Spectra
• Input Voltage: 5V/1A
• Rated Power: 5W
• Supported Color Systems: VITA 3D-MASTER, VITA Classic (A1-D4)
• Operating Temperature Range: 5°C to 45°C
• Operating Humidity Range: 50% to 90% RH
• Extreme Environmental Temperature: -10°C to +60°C
• Extreme Environmental Humidity: 15% to 90% RH
• Atmospheric Pressure: 700 to 1060 hPa
• Storage Temperature: 0°C to 50°C
• Storage Humidity: 30% to 90% RH
• Measurement Accuracy: High, with color-coded indicator (Green/Yellow/Red)
• Battery Life: Over 5000 measurements per full charge
• Charging Time: 3 to 4 hours
• Disinfection: Probe can be disinfected with medical-grade solutions
• Calibration: Automatic white balance calibration at startup
• Display: Dual-row result display with color indicators
• Measurement Modes: Intraoral (natural teeth), Extraoral (shade guide)
• Auto Power Off: LCD turns off after 1 minute of inactivity; device powers off after 3 minutes

Packaging

• 1 x ShadePro Digital Shade Determination Device
• 1 x Charging Base/Stand
• 1 x USB Charging Cable

Directions for Use

Preparation

• Ensure the device is fully charged.
• Disinfect the probe with a suitable medical-grade disinfectant and allow it to dry completely.

Power On

• Press and hold the power button for 3 seconds to turn on the device.

White Balance Calibration

• Place the device on the calibration base.
• The device will automatically perform white balance calibration upon startup.
• Wait for the “Ready” screen before proceeding.

Mode Selection

Select the appropriate mode:

• Intraoral Mode: For measuring natural teeth.
• Extraoral Mode: For measuring shade guide teeth.
• Switch modes by pressing the button three times quickly.

Measurement

• Carefully observe and identify the center of the dentin on the target tooth.
• Place the probe gently but firmly on the thickest dentin area, keeping it parallel to the tooth surface.
• Press and hold the button for 1 second, then release after hearing a “beep” to complete the measurement.

Interpreting Results

View the results on the display:

• First row: VITA 3D-MASTER system.
• Second row: VITA Classic (A1-D4) system.

Refer to the color indicators (green/yellow/red) for result accuracy.

After Measurement

• Disinfect the probe after each use.
• Power off the device by pressing and holding the button for 10 seconds.

Charging

• Recharge the device using the provided USB cable and adapter when the low battery icon appears.
