Waldent Sandyo Airotor – Mini Head- Chuck Type (W-126)

Description

INDICATION :

• Used in various dental procedures such as restoration, tooth preparation for dental prosthetics, orthodontic applications, and various other dental uses.

ADVANTAGE :

• Corrosion Resistant – Passivated.
• High-grade material with a stylish design.
• Push-button & chuck type cartridge to change bur.
• Better Grip.
• 1/3 Get Water Spray effectively cool off the surface and treat the contact surface.
• Exclusive Design.
• Sleek Body.
• Excellent Texture.
• Ceramic ball bearing – long life span.
• High-speed handpiece.
• Extra-torque & superior cutting efficiency.
• Optimal power.
• Head Size – Mini head, Supertorque & Standard head.
• Optimum cooling of the treatment site with 3x spray.
• Two-hole Bordon Chair connection.
• Corrosion Resistant.
• Autoclavable at 135-degree Celcius.

Key Features

• Closed Cartridge.
• Ceramic Bearing.
• Less Noise.
• Integrated Clean Head.
• No Water Leakage.
• 1000 Sterilization Cycle.
• Speed: High Speed.
• Standard Head Push Button.
• Ball Bearing.

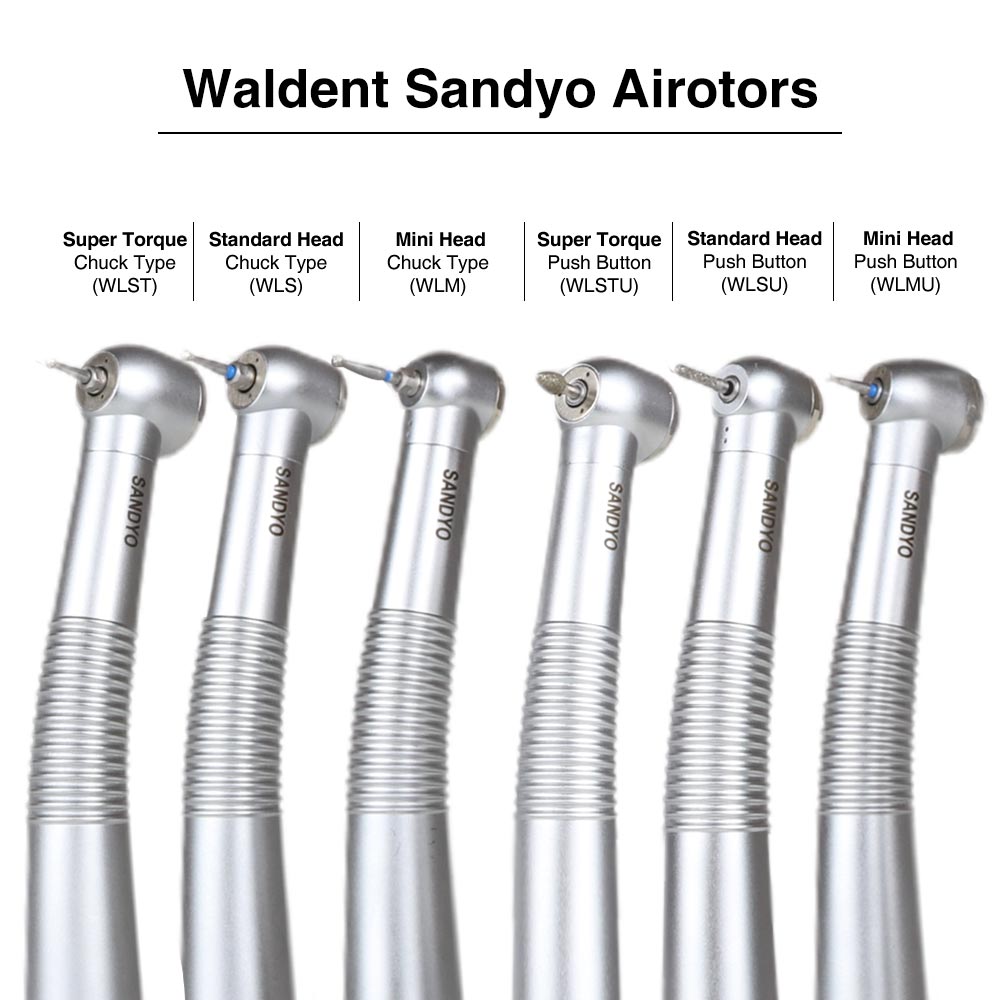

Specifications

Sandyo Mini Head Push Button (W-127) :

• Head Size: Ø10 mm X H12mm
• Total Length: 12.3cm

Sandyo Standard Head- Pushbutton (W-129)

• Head Size: Ø10 mm X H13mm
• Total Length: 12cm

Sandyo Airotor – Mini Head- Chuck Type (W-126)

• Head Size: Ø10 mm X H11mm
• Total Length: 12cm

Sandyo Airotor – Standard Head- Chuck Type (W-128)

• Head Size: Ø10 mm X H12mm
• Total Length: 12cm

Sandyo Airotor – Supertorque Head- Pushbutton (W-131)

• Head Size: Ø12mm X H14mm
• Total Length: 12cm

Packaging

Airotor Chuck Type:

• 1 x Sandyo airotor.
• 1 x Head cap wrench
• 1 x Bur Key/chuck
• 1 x Manual

Airotor Push button:

• 1 x Sandyo airotor.
• 1 x Head cap wrench
• 1 x Manual

Cartridge:

• 1 x Cartridge

Directions for Use

Preparation:

• Ensure the airotor and cartridge are properly sterilized before use.
• Confirm that the handpiece is securely connected to the dental unit.

Loading the Bur:

• For push-button mechanisms, press the button to open the cartridge.
• Insert the bur into the cartridge and release the button to secure it.

Air and Water Connection:

• Connect the airotor to the air and water supply of the dental unit.
• Adjust air pressure within the recommended range ( 0.28-0.3Mpa) for optimal performance.

Operation:

• Activate the airotor using the foot pedal or handpiece control according to your dental unit specifications.
• Ensure the water spray is effective for cooling during procedures.

Changing Bur:

• For push-button mechanisms, press the button to release the bur.
• Remove the used bur and load a new one as per step 2.

Post-Procedure:

• After use, clean the airotor
• If autoclavable, sterilize the airotor at 135 ℃ for the recommended duration.

Maintenance:

• Regularly inspect the airotor for any damage or wear.
• Lubricate moving parts if necessary.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• The manufacturer’s warranty for this airotor is valid for six months from the date of purchase.
• Warranty does not apply against any physical damage to the product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
