Surgident Fixture Remover Kit (SD-FR)

Description

Surgident Fixture Remover Kit (SD-FR) is a specialized implant retrieval system designed for the safe and controlled removal of failed dental implants or implants affected by excessive marginal bone loss. The kit enables clinicians to remove implant fixtures using reverse torque principles while preserving surrounding bone and minimizing surgical trauma. It includes multiple fixture remover screws compatible with different implant connection sizes, along with a turning handle, long wrench, ratchet extension, and handpiece condenser for versatile clinical application. The fixture remover screws engage the implant internally and facilitate counterclockwise removal using manual or mechanical force. Designed for implantology and oral surgery procedures, the Surgident Fixture Remover Kit provides a predictable and efficient solution for implant explantation while supporting future implant site preservation and retreatment planning.

Key Features

• Designed for safe removal of failed or compromised dental implants
• Utilizes controlled reverse torque for atraumatic implant retrieval
• Includes multiple fixture remover screws for various implant connections
• Manual and handpiece-driven removal options available
• Ratchet extension improves access in difficult surgical sites
• Helps preserve surrounding bone during implant removal
• Compatible with implant motors using the handpiece condenser
• Comprehensive kit for implantology and oral surgery procedures

Specifications

• Product Type: Implant Fixture Removal Kit
• Application: Failed Implant Retrieval and Explantation
• Fixture Remover Screws: FRD-01 (1.6/1.8), FRD-02 (2.0/2.5), FRD-03 (Narrow)
• Screws Length: 22mm
• Turning Handle: TH-03 (11 mm)
• Wrench Length: 110 mm (SDWRH-02)
• Ratchet Extension: RE-02
• Handpiece Adapter: SDADP-01
• Clinical Use: Implantology and Oral Surgery

Packaging

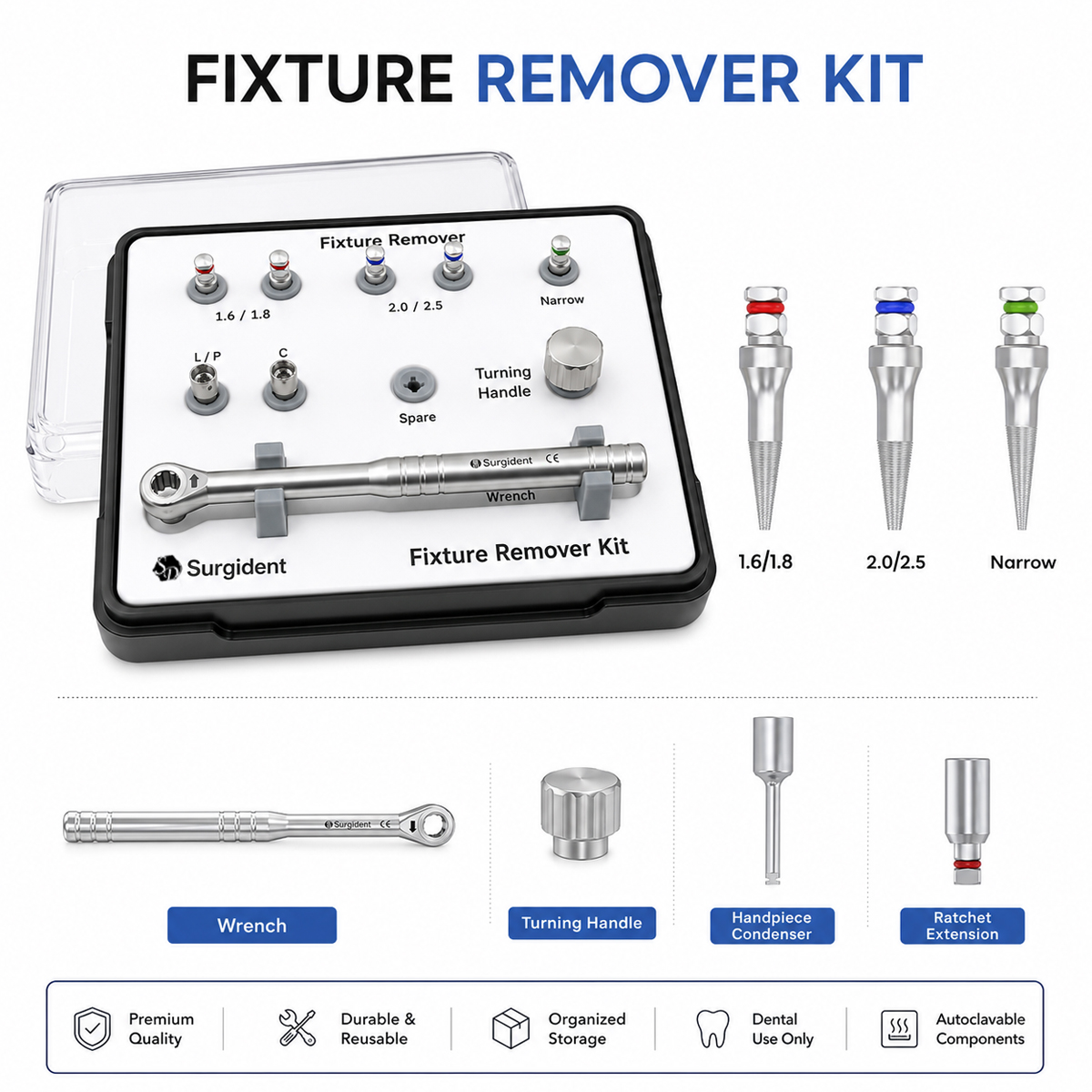

• Surgident Fixture Remover Kit (SD-FR)
• 1 x Wrench
• 3 x Fixture Remover Screws
• 1 x Ratchet Extension
• 1 x Turning Handle
• 1 x Handpiece Condenser

Directions for Use

Preparation

• Assess implant condition clinically and radiographically.
• Select the appropriate fixture remover screw based on the implant connection.

Fixture Engagement

• Insert the selected fixture remover screw into the implant connection.
• Tighten securely to achieve stable engagement.

Implant Removal

• Attach the turning handle or wrench to the fixture remover screw.
• Apply controlled counterclockwise torque to loosen and remove the implant.
• Use the ratchet extension when access is limited.
• If preferred, connect the handpiece condenser to an implant motor for mechanical assistance.

Additional Handling

• If excessive torque prevents separation, carefully grip the fixture with forceps or a mini vise.
• Rotate clockwise as required to release the fixture remover screw from the implant.

Post-Procedure Care

• Inspect the surgical site and remove any residual debris.
• Clean, sterilize, and store all kit components according to standard protocols.

Additional Information

Country of Origin: South Korea

Manufacturer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Packer:
Surgident Co., Ltd.
1F & 2F, 423-7 Hyeoksin-daero, Dong-gu, Daegu 41059, Republic of Korea
Phone: +91 72899 99456

Importer:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farukhnagar, Gurugram, Haryana ,122506, India
Phone: +91 72899 99456
